About the Infinity Kappa 83WDSSI
All-around excellence
All-around excellence
With their rugged construction and sophisticated engineering, Infinity's Kappa subwoofers excel in a variety of applications, equally at home in ported or sealed enclosures. These dependable subs feature switchable impedance so they'll always fit into your system, and they'll handle plenty of power so they'll deliver powerful, accurate bass. Plus, Infinity protects these subs with an impressive 3-year warranty.
Selectable impedance
Infinity's Kappa 83WDSSI 8" subwoofer features the unique Selectable Smart Impedance design, which lets you build exactly the system you want without complicated wiring. Just flip the convenient impedance switch to safely choose between 2 or 4 ohms. If you're thinking about upgrading your amplifier or adding another sub down the line, this sub makes it easy to reconfigure — and it's nearly impossible to wire incorrectly.
Rugged construction
This sub handles plenty of power and sounds great in sealed or ported enclosures. Infinity's proprietary aero-cooling design helps keep the 2" voice coil cool. The acoustically damped glass-fibre cone minimizes distortion, giving you nothing but pure bass. And the steel basket provides a solid base for the sub, which handles up to 400 watts RMS. Infinity's Kappa subwoofers are known for their sound quality, and they offer the wiring versatility you need to build a system for your changing needs.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- Featured in our article: Best 8" car subwoofers for 2023
- 8" subwoofer with selectable 2- or 4-ohm impedance
- coated glass-fiber cone with rubber surround
- steel basket
- terminals accept up to 8-gauge speaker wire
- frequency response: 30-175 Hz
- power handling: 400 watts RMS (1200 watts peak power)
- sensitivity: 91 dB
- top-mount depth: 5.42"
- cutout diameter: 7.3"
- sealed box volume: 0.5 cu. ft.
- ported box volume: 1.0 cu. ft.
- grille not included
- warranty: 3 years
- MFR # INFSUBKA83WDSSIAM
What's in the box:
Infinity Kappa 83WDSSI owner's manual
- One 8" Subwoofer
- Screw cover trim ring
- Adhesive-backed foam gasket
- Eight 1" Screws
- Owner's manual (English/ French/ Spanish/ fifteen other languages)
Reviews (5)
Customer reviews for Infinity Kappa 83WDSSI
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Infinity Kappa 83WDSSI
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 8 -inch | |
| Impedance (Ohms) | 2, 4 | |
| Cone Material | Glass Fiber over Paper | |
| Surround Material | Rubber | |
| Port diameter (inches) | 3 | |
| Port length (inches) | 10 | |
| Free-Air | Yes | |
| Dual Voice Coil | No | |
| Sensitivity |
91 dB at 2.83 volts | |
| Frequency Response | 30 - 175 Hz | |
| Max RMS Power Handling | 400 | |
| Peak Power Handling (Watts) | 1200 | |
| Top Mount Depth (inches) | 5 1/4 | |
| Bottom Mount Depth (inches) | 5 5/8 | |
| Cutout Diameter or Length (inches) | 7 5/16 | |
| Vas (liters) | 9.12 | |
| Fs (Hz) | 42.2 | |
| Qts | 0.548 | |
| Xmax (millimeters) | 10.25 | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.5 | |
| Minimum Sealed Box Volume (cubic feet) | N/A | |
| Maximum Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | 1 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
Product Research
Features
Enclosure Compatibility
Specifications
Features

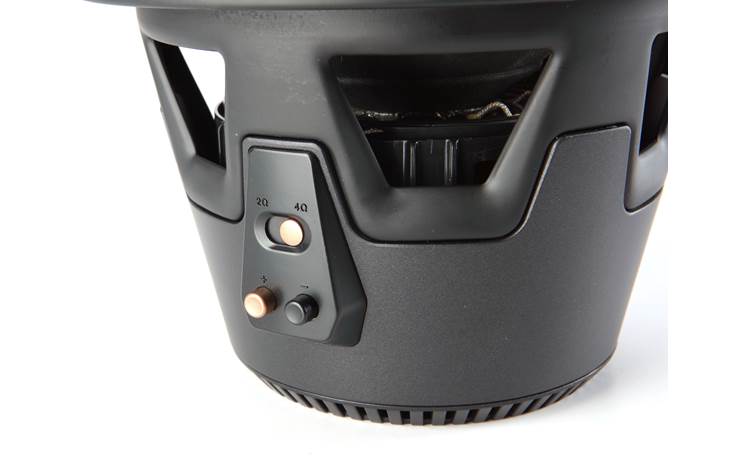

Selectable Smart Impedance (SSI): A switch on the input terminal allows you to easily change the woofer's impedance between 2Ω and 4Ω settings. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 450 watts RMS/1350 watts peak.

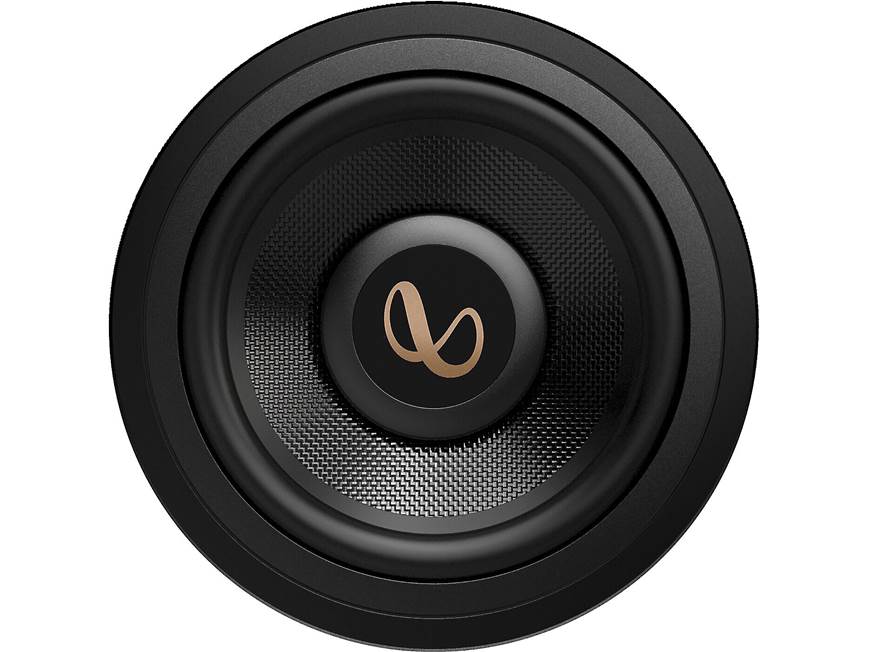

Cone: The cone material is a composite of glass fiber over a paper pulp material. Adding the glass fiber layer increases cone rigidity to improve bass accuracy, while the pulp base improves the sub's damping characteristics.
Terminal: The spring terminals will accept bare wire up to 8 gauge.
Enclosure Compatibility
Sealed Box: Infinity recommends a sealed enclosure with an internal volume of 0.5 ft³. Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box: Infinity recommends a ported enclosure with an internal volume of 1.0 ft³ with one 3" diameter x 10" long port, resulting in a tuning frequency of 45 Hz. They also recommend using a sub-sonic filter. Ported enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power.
Free-air Mounting: In addition to being compatible with sealed and ported enclosures, the woofer can be used in free-air applications. A free-air subwoofer is designed to be mounted on a baffle board, which separates the front of the speaker from the back. For instance, you could mount this woofer to a board attached to the rear deck or placed in the trunk against the rear seat. The trunk acts as the enclosure housing the subwoofer. Because there is no specific volume of air to stiffen the suspension, the free-air power handling is approximately half that of the woofer in a box, in this case 200 watts RMS.
Specifications
Thiele-Small Parameters: Because the woofer has two impedance settings, there are two sets of Thiele-Small parameters:
| 2Ω | 4Ω | |
| DC Resistance (Ω) | 2.26 | 4.71 |
| Inductance (mH) | 1.48 | 1.406 |
| Vas (liters) | 9.12 | 9.759 |
| Qms | 4.13 | 2.438 |
| Qes | 0.632 | 0.689 |
| Qts | 0.548 | 0.537 |
| Fs (Hz) | 42.2 | 42.3 |
| Radiating Area (cm²) | 226.98 | 226.98 |
| Xmax (mm) | 10.25 | 10.25 |
| Motor Force Factor (TM) | 10.375 | 13.87 |
The Infinity Kappa 83WDSSI replaces these items
- coated glass-fibre cone with rubber surround
- power handling: 400 watts RMS (1600 watts peak power)
- top-mount depth: 5-1/4"
Loading accessories...
Customer Q&A
1 question already asked
Loading articles...
Small but mighty. This sub does an amazing job. Paired with Infinity Kappa door speakers and the music comes alive in my truck. This fills in the low notes that the door speakers don't get down to. It will bump if you want it to as well. the 2ohm/4ohm selector makes wiring easy.
Jacob from Meridian, ID
