About the Kenwood KCA-RC35MR
Stay in control of your Kenwood marine receiver even if it's mounted below decks. The KCA-RC35MR wired remote gives you access to major functions of your Kenwood marine receiver — features like power on and off, volume, source, and track up/down. This wired remote eliminates any need to be in the receiver's line of sight, and its operation isn't affected by bright sunlight.
Note: You'll need to hardwire this remote for power, ground, and illumination. If you're looking for a remote that plugs right into the radio, check out the Kenwood KCA-RC55MR.
- controls select Kenwood marine receivers
- mounting hardware included
- diameter: 2.6"
- cutout diameter: 0.7"
- mounting height; 0.65"
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # KCA-RC35MR
What's in the box:

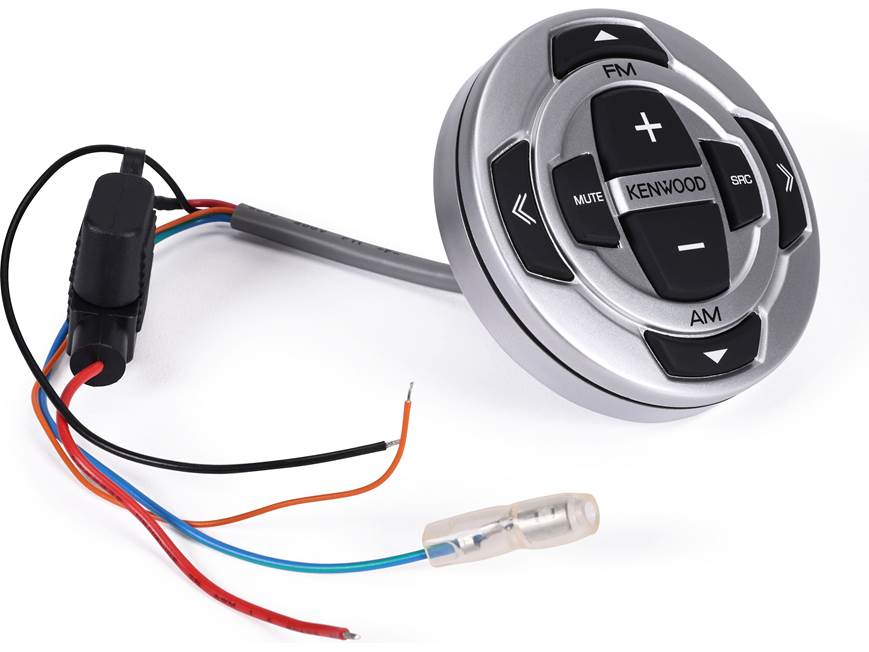

- Marine wired remote (with 8" attached power/ground/illumination/SWC leads)
- 1-Amp mini-ATC fuse (installed on power wire)
- Mounting bracket
- Wing nut
- Self-adhesive foam gasket
- Instruction Manual
More details on the Kenwood KCA-RC35MR
Compatibility: The KCA-RC35MR marine wired remote control is compatible with Kenwood marine and in-dash head units that feature a SWC remote wire (blue/yellow). The Kenwood KCA-RC35MR marine wired remote control is designed to withstand the harsh marine environment. Up to 6 of these remotes can be connected and daisy-chained to a compatible Kenwood receiver.
Note: You can also use the KCA-RC35MR remote control in conjunction with Kenwood's KCA-RC55MR remote (113RC55MR, sold separately) on select Kenwood marine receivers. Up to six KCA-RC35MR remotes and three KCA-RC55MR remotes (for a total of 9 wired remotes) can be used with one compatible Kenwood marine receiver.
Backlit Controls: The Kenwood KCA-RC35MR features source selection, music search, volume up/down, and mute control buttons. The KCA-RC35MR provides backlit illumination so it is easy to see at night.
Mounting: The Kenwood KCA-RC35MR is designed to be surface-mounted using the supplied mounting bracket and hardware. The wired remote requires a cutout diameter of 0.75" to run its wiring through.
Wiring: The KCA-RC35MR offers a 4-wire installation; Ignition (red), Remote (blue/yellow), Illumination (orange), and Ground (black). The attached 4-wire harness is only 8" long and may require the purchase of additional lengths of wire (sold separately).
