Kenwood Excelon KFC-XP6902C

Excelon Series 6"x9" component speaker system designed for select Chevrolet, Dodge, GMC, and Toyota vehicles

Item # 113XP6902C

Find what Fits your vehicle

Item # 113XP6902C

In stock

Deeply discounted installation gear

C$328.00 pair

About the Kenwood Excelon KFC-XP6902C

The right fit

Are the factory speakers in your Chevrolet, Dodge, GMC, or Toyota starting to sound their age? Rid yourself of mucky sound and upgrade with Kenwood's Excelon KFC-XP6902C 6"x9" component speaker system, specifically designed to fit in your vehicle. Big, power-hungry, polypropylene woofers deliver all the midbass oomph you've been craving. Impressive 2-3/4" speakers replace your factory tweeters, providing the complexities of your music's midrange as well as a seriously smooth transition into the higher frequencies. And with power handling up to 100 watts RMS, you'll get the most satisfying sound from these speakers when you drive them with an aftermarket amplifier.

Product highlights:

  • component speaker system includes 2 woofers and 2 tweeters
  • 6"x9" polypropylene woofer cone

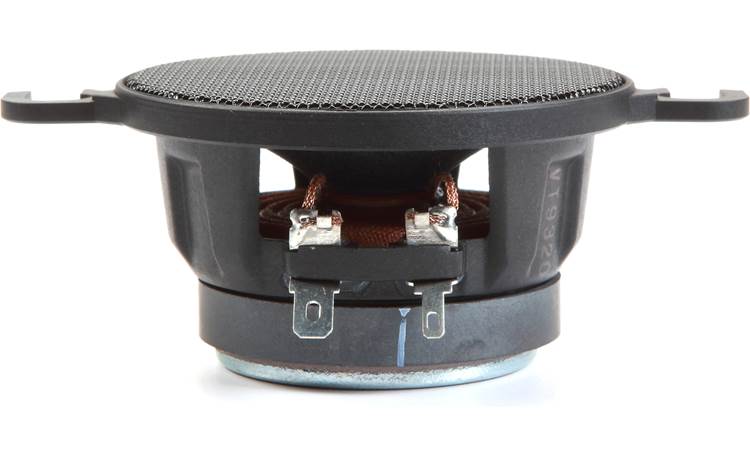

  • 2-3/4" mid/high speaker with acrylic carbon hybrid cone
  • handles up to 100 watts RMS (300 watts peak power)
  • frequency response: 45-20,000 Hz
  • woofer top-mount depth: 2-13/16"
  • 2-3/4" speaker mounting depth: 1-5/16"
  • sensitivity: 84 dB
  • impedance: 4 ohms
  • warranty: 2 years
  • Our 60-day money-back guarantee
  • MFR # KFC-XP6902C

What's in the box:

  • Two 6x9 Woofers
  • Two 2-3/4 Speakers
  • 2 Woofer spacers
  • Two 6x9 Multi-purpose adapter brackets (include GM and Toyota applications)
  • Two 28" Lengths of midrange wire with in-line crossovers (each has bare wire on the input end and female quick-slides on the output end)
  • Two 12" Lengths of woofer wire (each has female quick-slides on one end and bare wire on the other)
  • Eight 5/8" Screws
  • Eight 1" Screws
  • Adhesive backed foam gaskets
  • Installation instructions (English/ French/ Spanish)
  • Specifications printed on box

Customer reviews

Loading reviews...

Kenwood Excelon KFC-XP6902C reviews

Average review:

27 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee purchase (What's this?)



Crutchfield response

<< >>

More details on the Kenwood Excelon KFC-XP6902C

Pat M.

Features & specs

Speaker Size 6X9, 2-3/4
Design 2-way
Tweeter Design ---
Impedance (Ohms) 4
Tweeter Composition ---
Woofer Composition Polypropylene
Woofer Surround Rubber
Parts Warranty 2 Years
Labor Warranty 2 Years
Sensitivity (1W at 1 meter) 84
Sensitivity at 2.83 volts N/A
Frequency Response 45 - 20k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 100
Peak Power Handling (Watts) 300
Top-mount Depth (Inches) 1 5/8
Bottom-mount Depth (Inches) 3 1/4
Cutout Diameter or Length (inches) 0
Mounting Height (Inches) 0.478

Product Research


Custom Brackets: The KFC-XP6902C is designed as a factory replacement speaker system. The included 6x9 woofers are typically installed in the front doors. Mounting brackets are also included, compatible with many GM, Toyota, and Dodge vehicles. The multi-purpose brackets are scored for trimming to fit several applications. Please enter your vehicle information to confirm fit.

Midrange: The included 2¾" speakers replace the factory tweeters.

Crossover Network: A high-pass crossover is integrated into each wire included for the midrange. The output end of the wire has quick slides that plug onto the 2¾" speaker terminals. (The input end of the wire is not terminated.) The low-pass crossovers are wired to the 6x9 woofer terminals and attached to the speaker baskets. Each woofer has two positive input terminals, one to utilize the crossover and one to bypass.

Warranty Note: Although the information included with these speakers indicates a 1-year warranty, they are actually covered by the Kenwood eXcelon 2-year warranty.

Loading accessories...

Customer Q&A

8 questions already asked

What's the rms and peak watts for 2 3/4?
[ Nathan  Jul 02, 2020 ]
1 answer
We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
[ Calvin  Jul 16, 2020 ]  Staff
I don't understand why you say this speaker combo doesn't fit in a 2011 Toyota FJ Cruiser? Could you elaborate to why? The cruiser takes 6x9's in the front door, and 2-3" in the dash. So this should integrate seamlessly, right?
[ Tatanka  Nov 22, 2019 ]
2 answers
The only issue I had on my 2014 Tacoma was both speakers are in the doors. The mids/tweeters had the polarity markings on the terminals that was opposite of what of what the color codes said in the installation sheet. The factory 6x9s did not have any polarity markings on their terminals. So all I had to go by was the markings on the mids/tweeters, which indicated to me the factory wire colors were reversed. After doing some research, I found that Toyota had, on purpose, reversed the wires going to mids/tweeters to give them a more "enhanced" sound. I hooked up the kenwoods according to the installation sheet (no reverse polarity on the mids/tweeters crap) and they sound great! The speakers mounted just fine. William
[ William  Nov 22, 2019 ]
I have a 2007 FJ and they went right in and fit perfectly........
[ john  Nov 22, 2019 ]
Will the factory head unit be able to provide the power needed for the added high clarity and mid-bass spoke of?
[ RyanK  Jul 21, 2019 ]
3 answers
I have the head unit powering these speakers, no external amp. For my listening needs, the head unit only is sufficient. Of course and external amp always boosts performance. These speakers will work well in either system.
[ Michael  Jul 22, 2019 ]
I don't have my amp set up yet but do have these speakers installed. They are clear and have more bass but I would believe that speakers with a high power rating like these are intended to be driven by an amp. They work better than the factory speakers even without the amp.
[ Nathan  Jul 22, 2019 ]
I purchased the Stealth Soundstrem 1k amp to complete the install. I did not want to replace the factory HD radio (non-bose) system. Hooked everything to factory radio including a new set of kenwood rear speakers. What an awesome difference it made. The component speakers allowed me to replace dash speakers with tweeters and the larger ones in front doors. Have clarity and range above and beyond the factory speakers.
[ Boyd  Jul 21, 2019 ]
Do I need an additional crossover to install these in the front doors of my 2015 4RUNNER since the factory ones work in parallel? Or will the in-line crossover work?
[ G  Jun 30, 2019 ]
1 answer
You do not. The 6x9 crossovers are built into them and the tweeter crossovers come attached to the included 28" long wires. And that parallel wiring means these will be joined together as needed to play so you are good to go!! My Bio:
[ Paul  Jul 08, 2019 ]  Staff
Will this fit a 2019 GMC Canyon/2019Chevy Colorado?
[ Michael  Jun 26, 2019 ]
1 answer
You can check to see if this will fit your vehicle by using our Outfit My Car tool: For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Krissy  Jul 03, 2019 ]  Staff
Is there an advantage to these over a regular 6.5" component system? Why not use a more standard system that can be swapped into other vehicles later vs this?
[ Travis  Jun 24, 2019 ]
1 answer
Hi Travis, thanks for your question. There isn't really an advantage or disadvantage between using a regular set of 6.5" components, versus these Kenwood speakers as far as audio quality goes. But, since the KFC-XP6902C are designed to be a perfect fit for specific vehicles, that does make them a great choice for customers who want to easily improve their factory sound without the need for an adapter bracket , or re-drilling of any screw holes, which may be an issue they could encounter by choosing to use many other aftermarket speakers.
[ Jess  Jul 01, 2019 ]  Staff
On the Kenwood box it says these will fit a 2014 Chevy Silverado dbl cab 1500 w/o the Bose system w/8.5 lcd head unit. However, tech support, said they wonâ??t. Iâ??ve looked at a couple other places that give you fitment info. That proved fruitless also because some say they do some donâ??t. I called Kenwood and they didnâ??t know either. Anyone have some information on this subsection?
[ WillyJay  Jun 05, 2019 ]
1 answer
Hi Wade! Thank you for your question! The Kenwood KFC-XP6902C component speaker set is designed to be a specialty fit in your 2014 Chevy Silverado 1500 Double Cab without Bose. These will fit in your stock locations, without the need to use a speaker adapter bracket. Chat with an Advisor online, or contact us by phone at 1-800-324-9695, for further info.
[ Jess  Jun 20, 2019 ]  Staff
