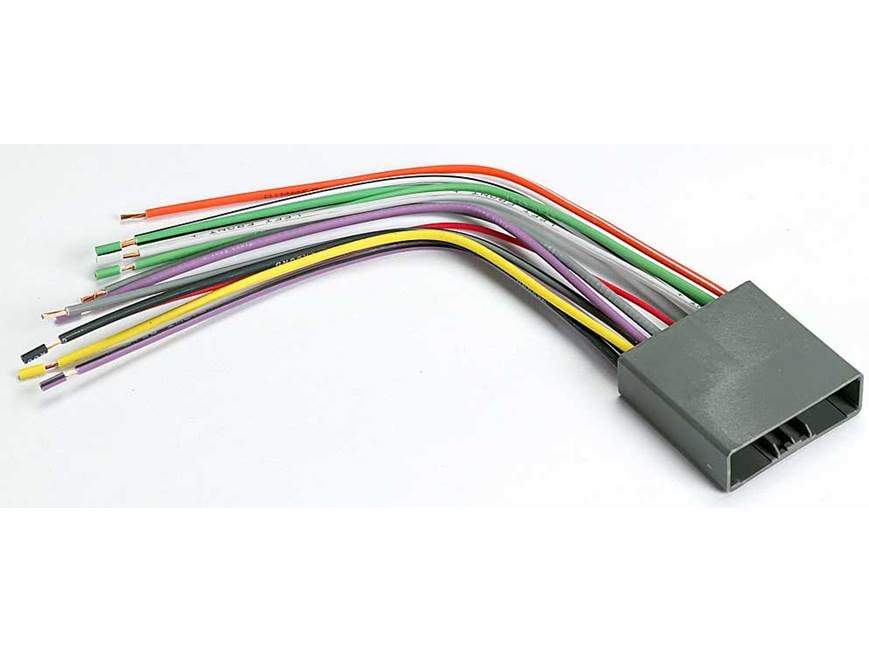

Metra 70-1722 Receiver Wiring Harness Connect a new car stereo in select 2006-17 Honda and Mitsubishi vehicles

Item # 120701722

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

Find what Fits your vehicle

Remove

Checking fit...

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

Item # 120701722

In stock
C$18.99

About the Metra 70-1722 Receiver Wiring Harness

Metra 70-1722 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

Metra 70-1722 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

First, attach the colour-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections. Check out our handy article on three ways to connect the wiring harness here.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness saves installation time since you won't have to cut factory wires individually, and this also enables you to re-install the factory radio if needed. A detailed instruction sheet comes with the harness. Warranty: 60 days.

Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.

READ LESS

What's in the box:

MFR #70-1722

Customer reviews for Metra 70-1722 Receiver Wiring Harness

Loading reviews...

Average review:

5.0 out of 5 stars
161 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Metra 70-1722 Receiver Wiring Harness

Stacey B.

Product Research

Features

Crutchfield Wiring Harness: Crutchfield wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the Crutchfield wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the Crutchfield wiring harness into your vehicle's factory radio plug.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Wiring Notes: If the Crutchfield wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicles may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.

Wire Code Chart:

Wire Color Function
Red +12 Volt Accessory
Yellow +12 Volt Constant
Black Chassis Ground
Orange/White Illumination
White Left Front Speaker +
White/Black Left Front Speaker -
Gray Right Front Speaker +
Gray/Black Right Front Speaker -
Green Left Rear Speaker +
Green/Black Left Rear Speaker -
Violet Right Rear Speaker +
Violet/Black Right Rear Speaker -

The Crutchfield Car Selector: Please visit the Crutchfield Car Selector for your specific type of vehicle.

Loading accessories...

Customer Q&A

5 questions already asked

Q
Will this wire harness also connect the driver and passenger tweeter? or do you just tie these into the driver and passenger speakers?
tim  Mar 21, 2016
1 answer
A
In most vehicles, the factory tweeters are wired in parallel with the front channel speakers and will be retained when a new stereo is installed, yes. I hope that helps! My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5
ryan  Mar 25, 2016 (Staff)
Q
Will this cable allow me to bypass my factory amplifier in my 07 Civic?
nathan  Feb 06, 2016
1 answer
A
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
kenneth  Feb 06, 2016 (Staff)
Q
I'm installing this on my 08 fit. Will I loose my headlight alarm?
greg  May 13, 2015
1 answer
A
For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
kristina  May 13, 2015 (Staff)
Q
My question is this, does this item come with both harnesses for the car? I believe on the 2007 Honda Civics have a wired style antenna instead of the normal "rod or prong" style antenna's. Does this come with that plug?
harold h.  Dec 23, 2013
1 answer
A
For details on installation please contact an Advisor by phone or online chat. They will be able to pull up your vehicle and give you the details on what you will need for an installation in your vehicle.
jeff  Dec 23, 2013 (Staff)
