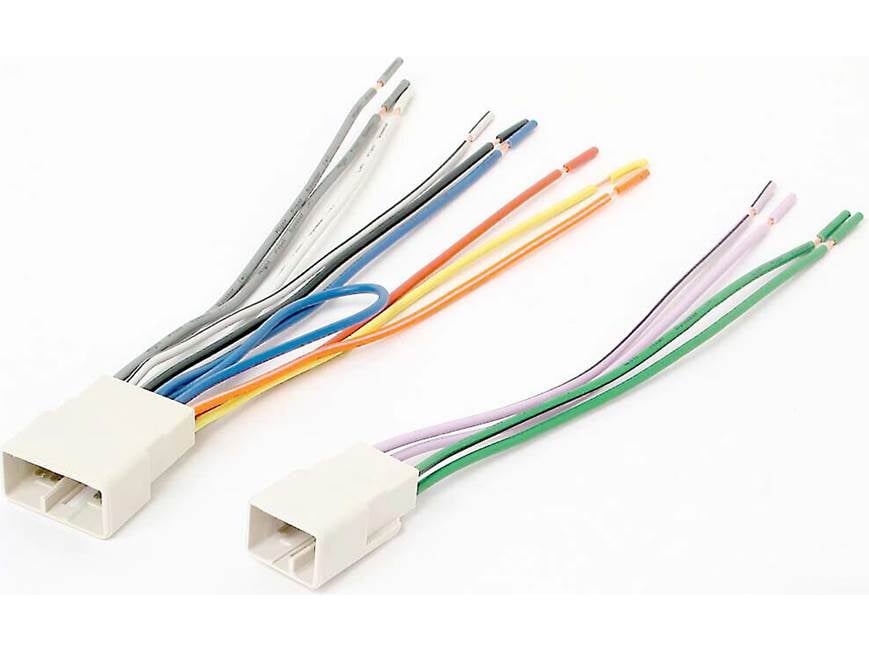

Name: Metra 70-1761 Receiver Wiring Harness
Brand: Metra
SKU: 120701761
Price: 13.99 CAD
Availability: InStock
Rating: 5 (1925 reviews)

Q

does this harness work with the nakamichi system in my 92 ls400?

[ mschwartz Dec 30, 2022 ]

1 answer

A

Greetings mschwartz, and thank you for your question. Our data base has the Pioneer system in the 1992 LS400, and in 1993 Lexus introduced the Nakamichi premium system. Perhaps you have a late 1992, or maybe a 1993. regardless, this would not be the correct harness for the Nakamichi system. We are showing the Metra 70-9112.

[ THOMAS Dec 30, 2022 ] Staff

Q

I got question about this product. this harness comes with blue wire instead with blue white. My new radio wire is blue white. Can I connect the blue white with the blue wire? Thank you (doesn't have a blue wire on my new radio cable

[ Tommy Dec 10, 2022 ]

1 answer

A

Greetings Tommy, and thank you for your question. Both the blue, and blue/white wires are trigger wires. Your radio Blue/White wire turns something else 12 volt on. Like a power, or amplified antenna in your vehicle. It would also turn on a factory, or aftermarket amplifier. If your vehicle has neither of those, you really don't have to connect those wires. But if it does, then yes, connect the Blue/White to the Blue on the Metra harness.

[ THOMAS Dec 10, 2022 ] Staff

Q

Will this work on a 2010 Corolla?

[ JAMES R Jul 16, 2021 ]

1 answer

A

You can check to be sure this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx Just add a set of speakers to your cart and you will be shown the needed items for installation.

[ KENNETH Jul 20, 2021 ] Staff

Q

I have a 96 t100. I'm installing a aftermarket touchscreen radio and the harness to the radio has illumination wire that is orange and the wire harness I got only has a orange/white stripe thats is dimmer. What should I do?

[ Jmcad Jul 02, 2021 ]

1 answer

A

I certainly do not remember since it has been some time since I did the install. I believe there are two wires on that harness. If not call the Crutchfield technician support. All I can say is that I have done three installs, 350z, Tundra, and LS400. All work flawlessly. Take your time this can be tedious work. Get it right the first time so you do not have to keep taking it apart to figure out the problems.

[ D. T. Jul 02, 2021 ]

Q

I have a 96 t100. I'm installing a aftermarket touchscreen radio and the harness to the radio has illumination wire that is orange and the wire harness I got only has a orange/white stripe thats is dimmer. What should I do?

[ Jmcad Jul 02, 2021 ]

1 answer

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.

[ KRISTINA Jul 14, 2021 ] Staff

Q

1998 Camry LE This looks like it doesn't fit my radio but it's the only harness that is supposed to be compatible. I looked at the amp behind the glovebox and the connections don't seem to match. Will this work? TIA, Heather

[ Heather Random May 13, 2021 ]

1 answer

A

This harness does work in the 1998 Toyota Camry LE models and plugs into harnesses to the side of the radio cavity. We offer technical support for our customers and send the tech support's toll free phone number on the order invoice to help with locating the place in the radio cavity to connect the harnesses and bypassing the factory amp

[ JASON May 30, 2021 ] Staff

Q

This shows 2 plugs and my 2004 tundra only has one plug going into the stereo, how will this adapter work?

[ John Mar 02, 2021 ]

2 answers

A

on my 06 Tundra, same thing, one is for the radio itself other for speakers

[ D Jul 22, 2021 ]

A

Yes, you have to bypass Amp below radio.

[ DANIEL Mar 28, 2021 ]

Q

Will this harness work on a Lexus sc400 with a upgrade pioneer stero with no CD player??

[ Josh May 07, 2020 ]

2 answers

A

You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.

[ Thomas May 27, 2020 ] Staff

A

Don't know

[ Yoshifumi May 22, 2020 ]

Q

Will these work on 2010 year tacoma? I read somewhere its for only 87-07s

[ Ethan Jul 13, 2019 ]

1 answer

A

Hi Ethan, thanks for your question! Depending on the trim level of your truck, this harness may be an option for you. Chat with an Advisor online or by phone at 1-800-324-9695. They will be able to pull up the exact info on your truck, go over your factory features that you would like to retain, and insure you're purchasing the correct gear for your install.

[ JESSICA Jul 19, 2019 ] Staff

Q

Will this allow me to retain the factory Sub in my 2009 FJ Cruiser?

[ THOMAS Mar 28, 2019 ]

2 answers

A

My guess is that it would not play your new receiver through that sub without adding a separate amp - your factory srereo probably has a direct sub-out lead. These harnesses provide basic speaker , antenna, power, memory and ground connections, as that is what replacement radios need. Your new radio (not specified) probably has some low level outs that could feed a separate little amp for the sub - check directly with C'field tech guys - they probably can tell you which wires in the car harness will get it hooked to your sub - good luck, it can be doe...

[ Bruce K. Apr 04, 2019 ]

A

I believe it did have connection for sub but not positive as I added an external sub that I powered separately and used sub output from stereo

[ mark Mar 28, 2019 ]

Q

Wiring diagrams To pioneer x6500bt ?

[ fawn Nov 29, 2018 ]

1 answer

A

You'll find the wire code listing for the harness by clicking the "Details" tab on it's main webpage. You can also download a PDF copy by clicking the link for it under the "Overview" tab and the heading "What's in the Box". You'll find the Pioneer's wire code listing in it's owner's manual (Available as a PDF under the "What's in the Box" heading on it's main page): www.crutchfield.com/p_130X6500BT/item.html For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx

[ Ryan Dec 12, 2018 ] Staff

Q

Will this adapter work on 2003 Toyota Tacoma and a Pioneer AVH-X2800BS with Bluetooth?

[ jbaum Nov 19, 2018 ]

2 answers

A

It is the harness we recommend for connection to the factory wiring in the 2003 Tacoma, yes. You can connect the leads of the Metra harness to the leads of the Pioneer stereo's harness (packaged with the stereo) for power (both constant & switched), ground, dimmer, power antenna, and all of the positive and negative speaker connections. A multi-media receiver (like the AVH-X2800BS) will have additional leads in it's harness you'll have to hardwire to the factory wires in your truck (parking brake sensor, reverse trigger). For additional assistance and personalized recommendations, feel free to contact us directly by phone or through our online chat service: https://www.crutchfield.com/support/ContactUs.aspx

[ Ryan Nov 24, 2018 ] Staff

A

I dont know. Crutchfield should know.

[ Vicki Nov 19, 2018 ]

Q

metra 70-1761 wire harness dose not match the color wires on the factory harness 2007 Tacoma non JBL. It dose match the harness coming from the new head unit made connections but was hesitate to plug into factory harness. Is that normal? thanks in advance

[ Nicholas Aug 12, 2018 ]

1 answer

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.

[ KRISTINA Aug 20, 2018 ] Staff

Q

Does this retain the factory AUX input in a 2009 Toyota Tacoma?

[ DARIUS SOO Feb 10, 2018 ]

1 answer

A

You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.

[ KRISTINA Feb 14, 2018 ] Staff

Q

Does this retain the factory AUX input in a 2009 Toyota Tacoma?

[ DARIUS SOO Feb 10, 2018 ]

1 answer

A

Hey Darius, I used the harness in my 2000 Tacoma exchanging the factory stereo/cassette for an Alpine CD/BT with Aux input and it works great! Easy connection and perfect functioning. Crutchfield matched the harness to the Alpine I purchased. Hope the helps. Joe

[ ANGIE Feb 10, 2018 ]

Q

does the black wire on pioneer harness connect to black wire on metra harness?

[ JAKE A Oct 12, 2017 ]

2 answers

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer, or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

[ KRISTINA Oct 17, 2017 ] Staff

A

Yes

[ SHERMAN Oct 13, 2017 ]

Q

Is this what I need to install my Sony in an 09 camry? Replacing the Jbl without navigation

[ Jsd0125 Oct 08, 2017 ]

2 answers

A

I used it to replace a radio in a 2002 Rav4. Made for an easy installation, however,don't know about the camry

[ ANTONIO Oct 08, 2017 ]

A

It fit on my 07 camry.

[ JIN HWAN Oct 08, 2017 ]

Q

if running my own speaker wire do i not use the supplied wires and use rca's in the head unit instead?

[ chris Sep 18, 2017 ]

1 answer

A

The aftermarket stereo will still need to connect to the vehicle harness for power (both constant & switched), ground, power antenna, and dimmer leads.

[ Ryan Sep 20, 2017 ] Staff

Q

Would it work on a 2013 4runner with the " party mode option button" or I will loose this feature ?

[ ERWIN Jul 24, 2017 ]

1 answer

A

You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.

[ KENNETH Jul 25, 2017 ] Staff

Q

I need to know if it fits for a 96 Toyota Avalon?

[ Adam Mar 12, 2017 ]

1 answer

A

You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.

[ KENNETH Mar 13, 2017 ] Staff

Q

Will this work on my 2015 WRX Limited and retain the Harmon Kardon amplifier?

[ Dan Feb 20, 2017 ]

1 answer

A

You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.

[ KENNETH Feb 20, 2017 ] Staff

Q

Will it work on an fj cruiser 9 speakers?

[ Jose Jan 14, 2017 ]

1 answer

A

You can check to see if this will fit your vehicle by using our Outfit My Car tool: http://www.crutchfield.com/car/carselector.aspx For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.

[ KRISTINA Jan 16, 2017 ] Staff

Q

Is this the correct harness for a 2007 Toyota Land cruiser Prado VX?

[ Paul Dec 20, 2016 ]

1 answer

A

I'm not seeing this harness related to the vehicle you listed. For full information on this type of integration (including the parts you will need) please contact an Advisor by phone (1-800-324-9695) or online chat.

[ KENNETH Dec 21, 2016 ] Staff

Q

Does this support the 6 speakers on a 2008 double cab Tacoma? There is a tweeter and door speaker in front doors and a single door speaker in rear door. So needs total of 6 speakers ?

[ Daniel Oct 30, 2016 ]

1 answer

A

This is the recommended stereo wiring harness for connecting an aftermarket stereo to the stock wiring in a 2008 Toyota Tacoma without the premium JBL sound system. The stock tweeters are wired in parallel with the door woofers and will continue to play if left connected when the new stereo is installed, yes. I hope that helps! My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5

[ Ryan Nov 04, 2016 ] Staff

Q

does this harness support steering wheel controls?

[ Matt May 21, 2016 ]

1 answer

A

The ability to retain steering wheel controls with aftermarket receivers will be determined by the receiver you are using and the vehicle you have. For full information on this type of integration (including the parts you will need) please contact an Advisor by phone (1-800-324-9695) or online chat.

[ KENNETH May 21, 2016 ] Staff

Q

I was sent the Metra 70-1761 wiring harness for my 2003 Toyota Camry XLE without JBL audio or Navigation (a 2 adapter kit). I have a single adapter in the car which is slightly wider with what appear to a tighter pin configuration. Is there something I'm missing and are there multiple adapter types for the 2003 Camry?

[ TahoMike Mar 24, 2016 ]

1 answer

A

For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on what you will need for an installation in your vehicle.

[ KENNETH Mar 25, 2016 ] Staff

Q

I'm installing a powered subwoofer. What wire should I connect my subs remote turn on wire to? (07 Yaris)

[ Sam Mar 11, 2016 ]

4 answers

A

Blue, labeled remote I think. You can also use power antenna

[ MATTHEW Jun 04, 2017 ]

A

I believe its the solid blue wire labeled power antenna, it should have 12 volts dc when you turn on the radio.

[ charles May 22, 2017 ]

A

I'm not sure, but I remember seeing it in the installation instructions.

[ Nelson Nov 30, 2016 ]

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

[ KRISTINA Mar 11, 2016 ] Staff

Q

I have the original factory set up of 1" tweeters mounted separate from 5" speakers on the front doors and of course the 6x9s in the back. Is the jvc kd-r470 with this harness compatible?

[ RICHARD Jan 16, 2016 ]

1 answer

A

For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.

[ KRISTINA Jan 17, 2016 ] Staff

Q

Will this fit a 2001 Toyota solara with Jbl audio?

[ Charles Jan 14, 2016 ]

1 answer

A

For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.

[ Jeff Jan 15, 2016 ] Staff

Q

Does this really work for a Lexus ls400?

[ Jamand Dec 03, 2015 ]

1 answer

A

You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.

[ Jeff Dec 03, 2015 ] Staff

Q

What size crimp caps should I buy for this harness? What gauge is the wire? I want to make sure to have a solid connection. Thanks.

[ Jesse Nov 26, 2015 ]

3 answers

A

The red butt splice connectors will fit all the wires

[ James Dec 16, 2015 ]

A

I think it is 14ga but not positive. Get a good crimp or solder the joints ??

[ John Nov 30, 2015 ]

A

It is 22 gauge wire so choose caps that are appropriate for that size of wire to make a solid connection.

[ JAMES Nov 27, 2015 ]

Q

I use this for my 2012 Toyota Tundra. On my harness there is a wire for the rear view camera but there is not a matching wire for it. were is this wire suppose to go ?

[ RICARDO Nov 20, 2015 ]

1 answer

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

[ KRISTINA Nov 20, 2015 ] Staff

Q

I purchased the Metra 70-1761 for my 2002 Toyota Solara. The connector (male end) is smaller than the stock connector and doesn't fit. Now what?

[ Karen Jul 14, 2015 ]

1 answer

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

[ KRISTINA Jul 14, 2015 ] Staff

Q

I have a 1989 Toyota Camry with am/fm radio, but no tape deck. What do I need to play music from my cell through car speakers?

[ DAVID M May 24, 2015 ]

3 answers

A

you can use Bluetooth if your phone has it.

[ Nelson Nov 30, 2016 ]

A

A radio that has Bluetooth built-in or use the auxiliary if you have one on the radio.

[ MIGUEL A May 24, 2015 ]

A

Change out your whole system. I went with a alpine bluetooth deck. It comes with all the wiring harnesses needed for your camry. Just filter down to the specific car u have. If you don't change your deck you'll have to buy a seperate fm transmitter unit

[ JAY R May 24, 2015 ]

Q

Hi! My aftermarket stereo is JVC KW-R910BT. I have a little problem with my stereo harness. When i pulled the stock 2007 toyota yaris RS stereo (hatchback) i was surprised to find out that it has a 3 piece harness on it. While it recommend to use metra 70-1761(2pcs. Harness) Well the 2 harness fits to the stock harness but the color of the wire didnt match to the male(stock harness) and female(metra 70-1761) harness plus one stock harness doesn't have a pair. What should i do? Or can someone recommend to me the right harness (3pcs) to match the exact color of the stock harness. Thanks in Advance!

[ Edric May 02, 2015 ]

1 answer

A

We do show this as the correct harness for your vehicle. We also have a note that replacing the factory radio will mean losing the factory aux input (which may be the other harness piece).

[ Jeff May 04, 2015 ] Staff

Q

Okay so i just bought a 1992 geo prizm and it already has a radio Kenwood installed the wires were cut and i was needing to know the color codes to the car wiring cause its wrong when lights are turned on the radio goes to pretect mode if its lights off after reset it works also when left blinker it turned on it also quits working and kills lights also have to reset radio could someone please tell me the car wiring color code?

[ Chris Apr 09, 2014 ]

1 answer

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the settings on the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

[ KRISTINA Apr 10, 2014 ] Staff

Q

I have a 1998 Toyota Camry and I just bought this harness to connect my new radio. Do I connect the ground wire of the new radio to the ground wire of this wire harness OR do I crimp a ring terminal connector to this wire and screw the ring terminal to metal inside the vehicles dash??

[ M Mar 05, 2014 ]

1 answer

A

If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the install. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer. You can also post your question in our forums: http://community.crutchfield.com. Or try our online support center: http://crutchfield.custhelp.com/app/answers/list/kw/.

[ KRISTINA Mar 05, 2014 ] Staff

Q

i was reading some different reviews on this harness reguarding a 2000 toyota 4runner limited. Does anyone know if it fits properly or do you have to use it on the small amp under the factory radio which i plan on taking out to replace with kenwood ddx470in the next coming months. im new to this stuff so i dont want to mess anything up,,thanks ?

[ jason Dec 13, 2013 ]

1 answer

A

This harness would bypass the factory amp in your vehicle.

[ Jeff Dec 13, 2013 ] Staff

Wire Color	Function
Red	+12 Volt Accessory
Yellow	+12 Volt Constant
Black	Ground
Blue	Power Antenna
Orange/White	Dimmer
White	Left Front Speaker +
White/Black	Left Front Speaker -
Gray	Right Front Speaker +
Gray/Black	Right Front Speaker -

Wire Color	Function
Empty	(none)
Green	Left Rear Speaker +
Green/Black	Left Rear Speaker -
Violet	Right Rear Speaker +
Violet/Black	Right Rear Speaker -
