Metra 70-1770 Receiver Wire Harness

Connect a new car stereo in select 1986-2006 Ford and other vehicles

Item # 120701770

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Find what Fits your vehicle

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Item # 120701770

In stock

Hands-on research

We double check the details on each item.

Free lifetime tech support

Whenever you need a hand.

Since 1974

Years of experience making people happy.

About the Metra 70-1770 Receiver Wire Harness

Metra 70-1770

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

Metra 70-1770

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

First, attach the colour-coded wires on your harness to the wires from your new stereo. If you don't know how to use a soldering iron, we recommend that you purchase some wire connectors that you'll use to attach this harness to your factory harness.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness makes installing your new stereo easier, and allows you to put the factory radio back when you sell your vehicle or return it at the end of the lease. Warranty: 60 days.

Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.


  • 12V constant power
  • 12V switched power
  • chassis ground
  • power antenna turn-on
  • dimmer
  • left front speaker +/-
  • right front speaker +/-
  • left rear speaker +/-
  • right rear speaker +/-

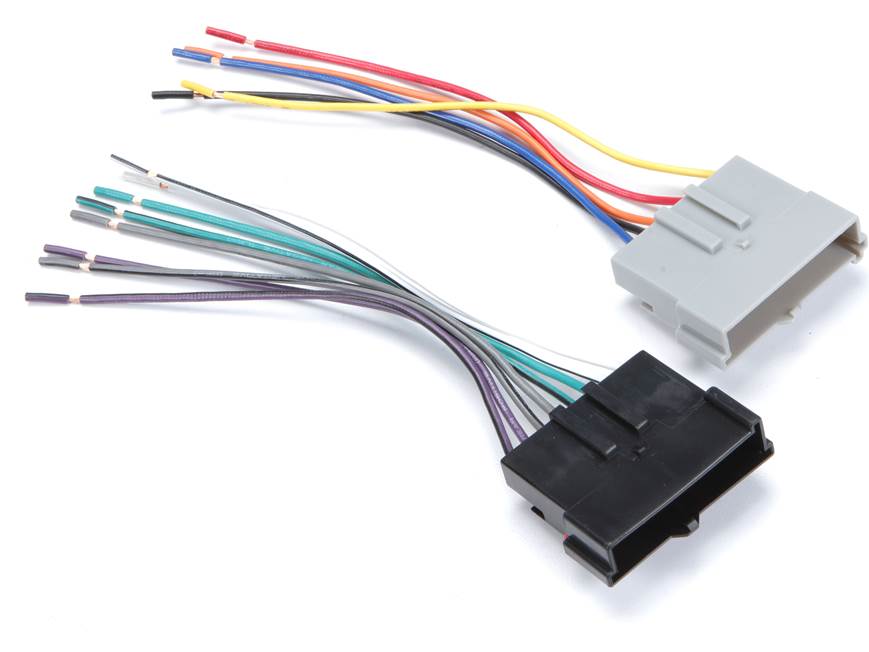

What's in the box:

  • 7" Receiver power/ground harness
  • 7" Receiver speaker harness
MFR #70-1770

Customer reviews

Loading reviews...

Metra 70-1770 Receiver Wire Harness reviews

Average review:

235 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.

<< >>

More details on the Metra 70-1770 Receiver Wire Harness

Stacey B.

Product Research


Wiring Harness: This wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the wiring harness into your vehicle's factory radio plug.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Wiring Notes: If the wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.

Wire Code Chart:

Wire Color Function
Red +12 Volt Accessory
Yellow +12 Volt Constant
Black Chassis Ground
Blue Power Antenna
Orange Illumination
White Left Front Speaker +
White/black Left Front Speaker -
Gray Right Front Speaker +
Gray/black Right Front Speaker -
Green Left Rear Speaker +
Green/black Left Rear Speaker -
Violet Right Rear Speaker +
Violet/black Right Rear Speaker -

Loading accessories...

Customer Q&A

5 questions already asked

Im installing a Sony ax 4000 in a 97 f 150. The radio harness has a orange/white stripe for illumination. The harness has three wires not sure. They are orange-for illumination/dash light. Orange/white for dimmer and a orange/black stripe has nothing marked ???.. any help would be great.
[ Gary  Apr 10, 2023 ]
1 answer
Greetings Gary, and thank you for your question. That model harness production date before 2013 had an orange/black, and a black/white wire. Both were not used. Post 2013 that same model harness had the orange/black, and the black/white wires removed. Tape them off, and dont use them.
[ THOMAS  Apr 10, 2023 ]  Staff
My '97 F150 Lariat Premium OEM stereo has a 6 disc changer, and 4 speakers with a 16 pin wire harness and the 5 pin harness (grey above). I cannot find a kit that has both wire harness' together in a kit. Any suggestions?
[ Rich  Aug 02, 2021 ]
1 answer
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle to see if we have something that will integrate, and any other options available.
[ KENNETH  Aug 04, 2021 ]  Staff
My radio dont have the orange cord to connect to. Does that matter?
[ Kaiden  Jun 08, 2021 ]
1 answer
Orange is the dimmer/illumination. If this doesn't matter to you,, then you will be fine to run your headunit. Sometimes, the orange wire may be a different color, just depends. Make sure to look for the dimmer/illumination wire.
[ HARRISON  Jul 30, 2021 ]
Will this world for Mach 460?
[ ETHAN  Mar 29, 2020 ]
1 answer
I do not have a car with Mach 460 but this unit has a fairly conventional wiring interface and there appear to be specific pre configured interface cables available. There are also some very detailed installation instructions from several sources. The most comprehensive that I found are located on the ModdedMustangs website.
[ ROBERT  Sep 15, 2021 ]
what guage are the wires?
[ chandler  Feb 07, 2016 ]
1 answer
18-22 gauge, I used the red butt connectors and it fit perfectly and crimped beautifully.
[ William F.  Feb 08, 2016 ]
