About the Metra 70-6510 Amp Bypass Harness

Metra 70-6510
Metra 70-6510
The Metra 70-6510 harness enables you to install a new car stereo in your Ram truck. It uses a "jumper" to bypass the factory Infinity amplifier, which means you don't have to run new speaker wire from your new radio to your car's speakers — this saves you a lot of time on the installation, so you can start enjoying your music sooner.
Since you didn't have to cut off your car's original radio connector, it's easier to put the factory radio back in when you sell your vehicle or return it at the end of the lease. Just plug the factory radio back in and keep the aftermarket stereo. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to find out if this harness is compatible with your vehicle. Warranty: 1 year.

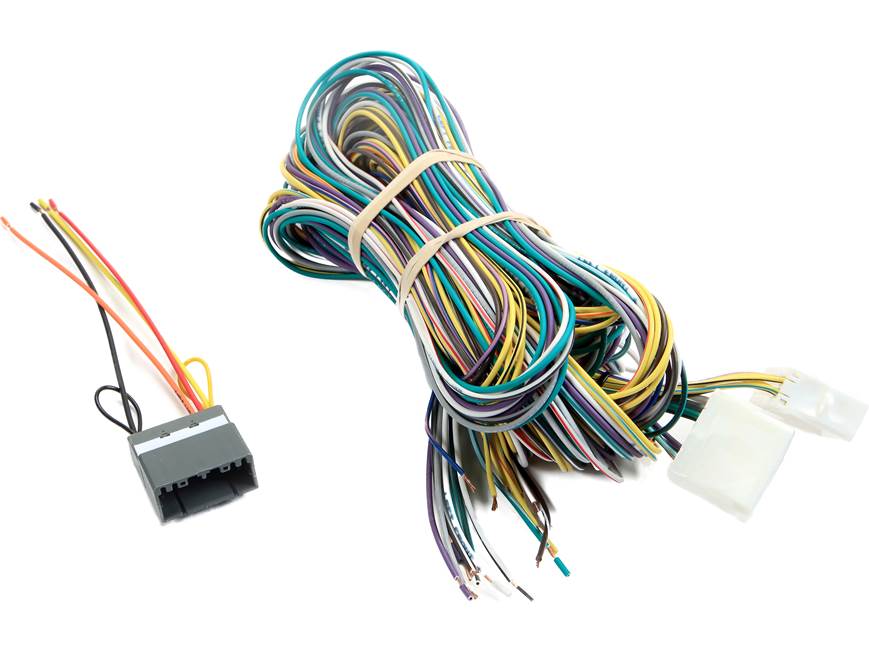

What's in the box:
Metra 70-6510 Amp Bypass Harness owner's manual
- 8" Power/ground harness
- 16.5' Amplifier bypass harness
- Installation Instructions
Customer reviews for Metra 70-6510 Amp Bypass Harness
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Metra 70-6510 Amp Bypass Harness

Product Research
Features
Compatibility: The Metra 70-6510 is an amplifier bypass harness for 2004-2005 Dodge Ram trucks with Infinity factory amplifier. In addition to the amplifier bypass harness, a power harness is also included for your aftermarket head unit.
- 2004 Dodge Ram SRT-10 with hands-free and Infinity sound system (must have a telephone symbol on the mirror)
- 2004 Dodge Ram (non SRT-10) with Infinity sound system
- 2005 ALL Dodge Rams with Infinity sound system
Wire Code Chart:
(Power Harness)
Wire Color | Function |
---|---|
Yellow | +12 Volt Constant |
Red | +12 Volt Accessory |
Orange | Illumination |
Black | Ground |
(Amplifier Bypass Harness)
Wire Color | Function |
---|---|
Green | Left Rear Speaker + |
Green/Black | Left Rear Speaker - |
Violet | Right Rear Speaker + |
Violet/Black | Right Rear Speaker - |
Gray | Right Front Speaker + |
Gray/Black | Right Front Speaker - |
White | Left Front Speaker + |
White/Black | Left Front Speaker - |
Yellow/Blue | Left Front Tweeter (+) |
Yellow/Black | Left Front Tweeter (-) |
Yellow/Red | Right Front Tweeter (+) |
Yellow/Orange | Right Front Tweeter (-) |
Loading...
Loading accessories...
Customer Q&A
5 questions already asked
Loading...
Loading articles...
Worked great to bypass the factory amp on my 2005 Dodge Ram 2500. Intructions I received from Crutchfield were easy to follow. The hardest part is getting the harness disconnected from the factory amp due to its location.
James from Raleigh, NC
