Metra 70-7901 Receiver Wiring Harness

Connect a new car stereo in select 1989-2003 Ford and Mazda vehicles

Item # 120707901

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Find what Fits your vehicle

Remove

Checking fit...

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Item # 120707901

In stock
C$18.99

Free lifetime tech support

Whenever you need a hand.

Articles, videos & DIY info

Decades of expertise at your fingertips.

Awards & recognition

Honored for putting the happiness of our customers and employees first.

About the Metra 70-7901 Receiver Wiring Harness

Metra 70-7901 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

Metra 70-7901 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.

First, attach the colour-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections. Check out our handy article on three ways to connect the wiring harness here.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness saves installation time since you won't have to cut factory wires individually, and this also enables you to re-install the factory radio if needed. A detailed instruction sheet comes with the harness. Warranty: 60 days.

Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.

Connections:

Note: You'll need to make a ground connection between your new receiver and your car's metal chassis.

  • 12V constant power
  • 12V switched power
  • power antenna turn-on
  • factory amp turn-on
  • dimmer
  • left front speaker +/-
  • right front speaker +/-
  • left rear speaker +/-
  • right rear speaker +/-
READ LESS

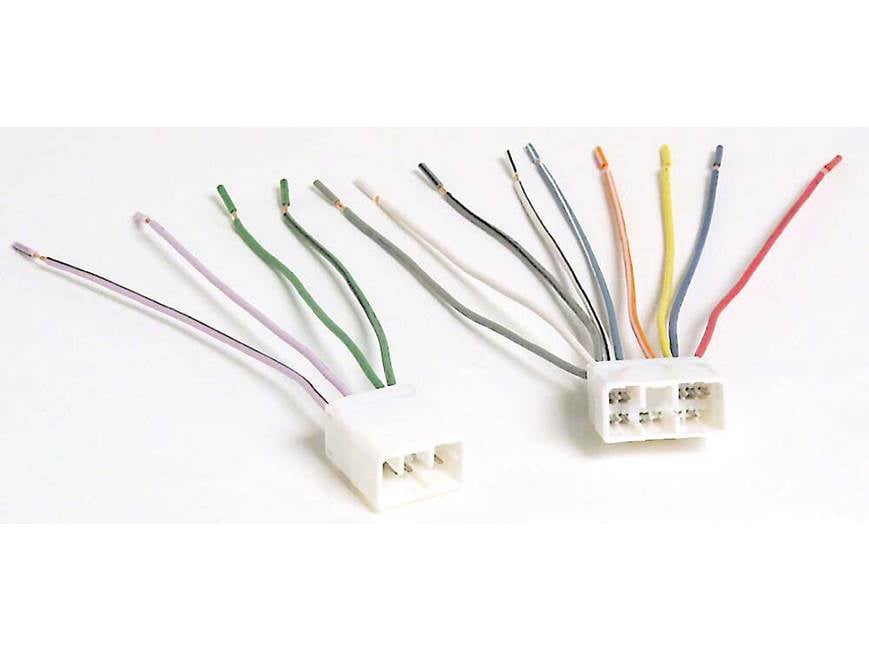

What's in the box:

  • 7" Power/front-speaker harness
  • 6.5" Rear speaker harness
MFR #70-7901

Customer reviews for Metra 70-7901 Receiver Wiring Harness

Loading reviews...

Average review:

4.5 out of 5 stars
116 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Metra 70-7901 Receiver Wiring Harness

Stacey B.

Product Research

Features

Metra Wiring Harness: Metra wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the Metra wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the Metra wiring harness into your vehicle's factory radio plug.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Wiring Notes: If the Metra wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.

Wire Code Chart:

(Power/Front Speaker Harness)

Wire Color Function
Red +12 Volt Accessory
Yellow +12 Volt Constant
Blue Power Antenna
Blue/White Amp Turn-On
Orange Illuimination
Empty (none)
White Left Front Speaker +
White/Black Left Front Speaker -
Gray Right Front Speaker +
Gray/Black Right Front Speaker -

(Rear Speaker Harness)

Wire Color Function
Green Left Rear Speaker +
Green/Black Left Rear Speaker -
Violet Right Rear Speaker +
Violet/Black Right Rear Speaker -

No Ground Wire: This harness does not contain a ground wire. You will need to ground your aftermarket head unit directly to the vehicle's metal chassis.

Loading accessories...

Customer Q&A

3 questions already asked

Q
What wire needs to be used to power up the headrest speaker controls?
scott  Mar 08, 2022
2 answers
A
I found that information by searching "Miata Z-74 Audio System wiring" on google and than click on images.
richard  Mar 08, 2022
A
Copy and past the below text into notepad than resize the window until the lines align. 1 . M I A T A 2 H E A D R E S T S P E A K E R 3 P A R A L L E L AND S E R I E S 4 W I R I N G 5 6 =============================================================== 7 P A R A L L E L W I R E D 8 H E A D R E S T S P E A K E R S 9 10 PASSENGER SEAT SPEAKERS DRIVER SEAT SPEAKERS 11 (+)R(-) (+)L(-) (+)R(-) (+)L(-) 12 o o o o o o o o 13 | | | | | | | | 14 | | | | | | | | 15 | | | | | | | | 16 | | | | | | | | 17 | |_ | | | | _| | 18 | | | |_____________________|___|_____|_ | 19 | | |_________________________|___|_ | | | 20 | | | | | | | | 21 | _|_______________________________| | | | | | 22 | | | _______________________________| | | | | 23 | | | | | | | | 24 \ / \ / \ / \ / 25 ___o_____o_____________________________________o_____o___ 26 | (+) R (-) (+) L (-) | 27 | | 28 | Head Unit | 29 | Headrest Speaker Outputs | 30 |_________________________________________________________| 31 32 33 =============================================================== 34 S E R I E S W I R E D 35 H E A D R E S T S P E A K E R S 36 37 PASSENGER SEAT SPEAKERS DRIVER SEAT SPEAKERS 38 (+)R(-) (+)L(-) (+)R(-) (+)L(-) 39 o o o o o o o o 40 | | | | | | | | 41 | | | | | | | | 42 | | | | | | | | 43 | | | | | | | | 44 | | | | | | | | 45 | | | |_____________________|___|___ | | 46 | | |_________________________|___|_ | | | 47 | | | | | | | | 48 | | _____________________________| | | | | | 49 | | | _______________________________| | | | | 50 | \ / | | \ / | 51 \ x / \ x / 52 ___o_____o_____________________________________o_____o___ 53 | (+) R (-) (+) L (-) | 54 | | 55 | Head Unit | 56 | Headrest Speaker Outputs | 58 61 LEGEND: 62 L = Left 63 R = Right 64 o = Connection Point 65 (+) = Positive Terminal 66 (-) = Negative Terminal 67 x = Wire Splice (suggested point for ease of installation and,
richard  Mar 08, 2022
Q
What gauge are the wires?
jason  Jun 09, 2019
1 answer
A
They do not list the gauge of the wire used. It is more than enough for the application in a vehicle's electrical system. I'f I had to take a guess, I'd say between 16 and 20 gauge.
thomas  Jun 20, 2019 (Staff)
Q
What is the relay in the easy connection for on a 2003 Ford escort?
dennis  Apr 28, 2017
1 answer
A
For specific wiring/installation questions, you would be better served contacting an Advisor directly by phone (1-800-324-9695) or online chat. They can offer more detailed information to help better answer your questions.
david  May 02, 2017 (Staff)
