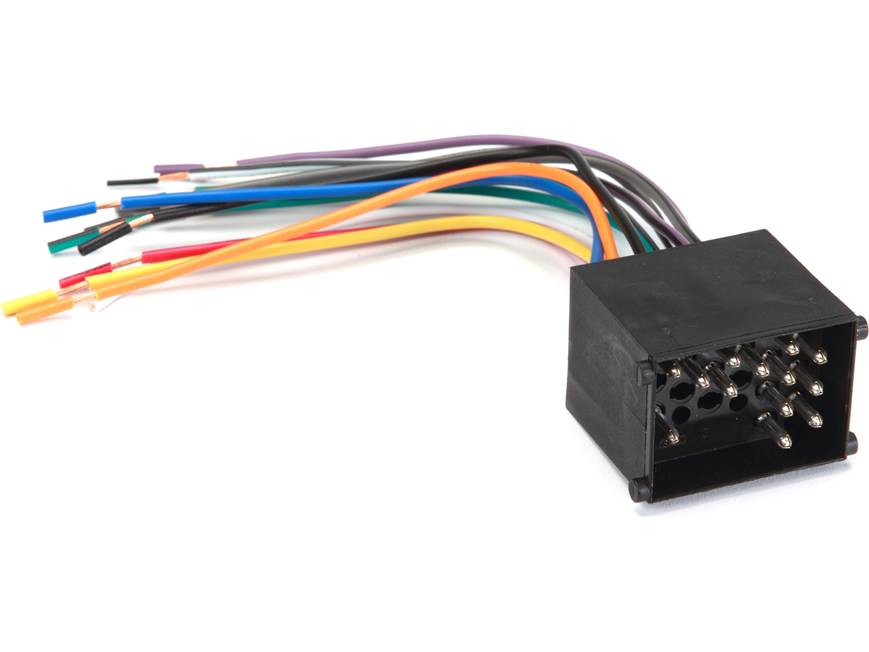

About the Metra 70-8590 Receiver Wire Harness
Metra 70-8590
Metra 70-8590
This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.
First, attach the colour-coded wires on your harness to the wires from your new stereo. If you don't know how to use a soldering iron, we recommend that you purchase some wire connectors that you'll use to attach this harness to your factory harness.
Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness makes installing your new stereo easier, and allows you to put the factory radio back when you sell your vehicle or return it at the end of the lease. A detailed instruction sheet comes with the harness. Warranty: 60 days.
Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections (see Details for a list of connections). You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.
What's in the box:
Metra 70-8590 Receiver Wire Harness owner's manual
- 6" Receiver wiring harness
Reviews
Customer reviews
Loading reviews...
Metra 70-8590 Receiver Wire Harness reviews
Average review:
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Metra 70-8590 Receiver Wire Harness

Product Research
Features
Wiring Harness: This wiring harness prevents you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the wiring harness into your vehicle's factory radio plug.
Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.
Wiring Notes: If the wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.
Wire Code Chart:
Wire Color | Function |
Red | +12 Volt Accessory |
Yellow | +12 Volt Constant |
Black | Ground |
Blue | Amp Turn-On |
Orange | Illumination |
White | Left Front Speaker + |
White/black | Left Front Speaker - |
Gray | Right Front Speaker + |
Gray/black | Right Front Speaker - |
Green | Left Rear Speaker + |
Green/black | Left Rear Speaker - |
Violet | Right Rear Speaker + |
Violet/black | Right Rear Speaker - |
The Metra 70-8590 Receiver Wire Harness replaces these items
Loading accessories...
Customer Q&A
4 questions already asked
Loading articles...
This is a great product and saves you time and aggravation when replacing your radio. The harness matches the factory plug perfectly and all wires are labeled so there is no confusion. This is a must and you get it free with a purchase of a new radio from Crutchfield !
Tyler from Gordonsville, VA
