Metra 70-9223 Receiver Wiring Harness Connect a new car stereo and retain the factory amplifier in select 1999-2009 Volvo vehicles

Item # 120709223

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Find what Fits your vehicle

Remove

Checking fit...

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical...

Item # 120709223

In stock
C$27.99

About the Metra 70-9223 Receiver Wiring Harness

Metra 70-9223 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system, and allows you to continue using your Volvo's amplifier..

Metra 70-9223 Receiver Wiring Harness

This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system, and allows you to continue using your Volvo's amplifier..

First, attach the colour-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections. Check out our handy article on three ways to connect the wiring harness here.

Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. The harness' RCA plugs connect to your stereo's output jacks, and the DIN connector allows you to connect to the factory amp without splicing. A detailed instruction sheet comes with the harness. Warranty: 1 year.

READ LESS

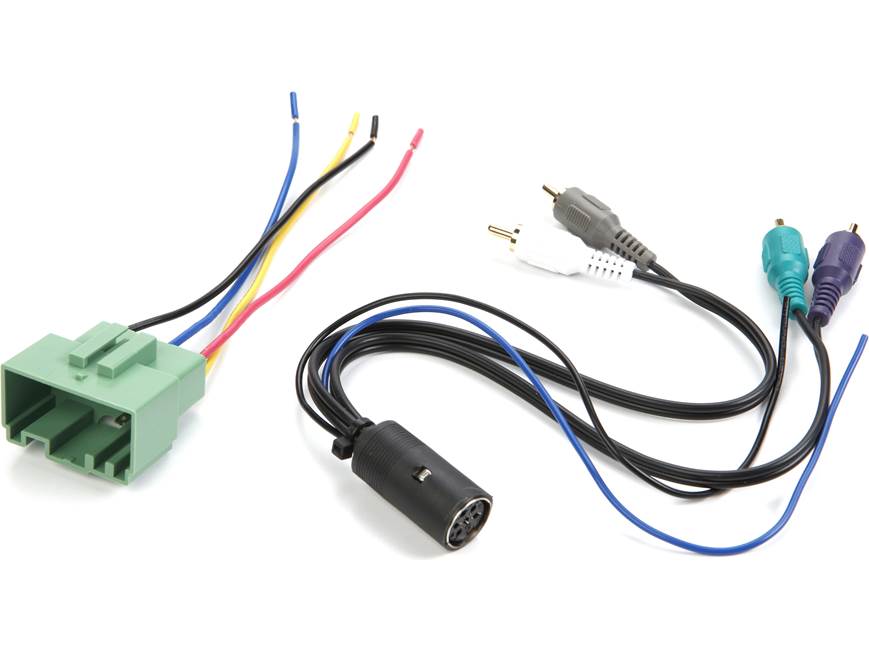

What's in the box:

  • 7" Power harness
  • 12" Amplfier harness
MFR #70-9223

Customer reviews for Metra 70-9223 Receiver Wiring Harness

Loading reviews...

Average review:

4.5 out of 5 stars
11 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Metra 70-9223 Receiver Wiring Harness

Stacey B.

Product Research

Features

Metra Wiring Harness: Metra wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the Metra wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the Metra wiring harness into your vehicle's factory radio plug.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Wiring Notes: If the Metra wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required & sold separately.

Wire Code Chart:

(Power Harness)

Wire Color Function
Red +12 Volt Accessory
Yellow +12 Volt Constant
Black Chassis Ground
Blue Power Antenna

(Amplifier Harness)

Wire Color Function
White RCA Left Front Speaker
Gray RCA Right Front Speaker
Green RCA Left Rear Speaker
Violet RCA Right Rear Speaker
Black Amplifier Ground
Blue Amp Turn-On

Loading accessories...

Customer Q&A

2 questions already asked

Q
I'm no electrician, but the green part that came with this doesn't connect to anything and I'm not getting any sound out of my stereo. The whole package leaves a whole 4 inputs that were plugged into the factory stereo without use and unplugged. Is there something the green part is supposed to plug into or does this just not fit?
max  Sep 10, 2023
1 answer
A
If you are having any issues installing your products purchased from Crutchfield Max, we are here to help. With your 2001 Volvo C70, it appears as though you will use part of the alternate Metra 70-9220 harness just for power and ground connections with the new Jensen radio. This second Metra 70-9223 harness in question you will not even use the green plug/wires. The RCA's connect to the front and rear preamp outputs and the round black pin plug attaches to a connection that matches that came out of your original radio to retain use of the original amplifier. Make sure to also connect the blue wire to the blue/white remote turn on wire coming out of the Jensen radio or the factory amp will not turn on. If this does not solve the issue, please give our Technical Support hotline a call at 1-888-292-2575 and we would be happy to help troubleshoot further!
bo  Sep 10, 2023 (Staff)
Q
in my Volvo 2004 s80 there are two din plugs I connected one (only fits in one the other ?) hooked it up no sound powers on that's it please help
jeffrey  Sep 09, 2018
2 answers
A
Received two different types of harness from crutchfield and neither worked. Volvo has some weird stuff they don't let anyone know about.
alissa  Sep 17, 2018
A
Because you purchased the harness from Crutchfield, you can contact our tech support department for assistance. You'll find their toll-free number printed on your invoice. If you do not have your invoice, you can contact our Customer Support department directly by dialing 800-955-9091 and they'll get you connected with tech support.
ryan  Sep 14, 2018 (Staff)
