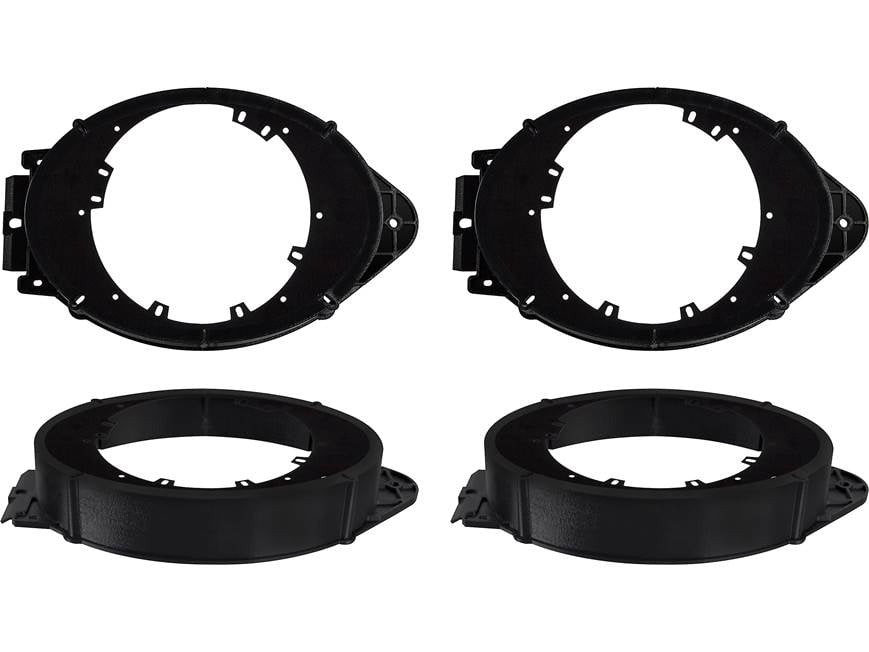

Metra 82-3005 Speaker Mounting Brackets

Features

Overview: As of 11/14/14, the 82-3005 is compatible with select 2014-2015 GM Trucks. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 6½ and 6¾ speakers. (Please refer to the Crutchfield Vehicle Selector to confirm fit in your vehicle.)

6¾ Speakers: For a 6¾ speaker to fit in the opening of this bracket, the tabs around the inner speaker opening will need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.

6½ Speakers: 6½ speakers with the 3-hole bolt pattern or the symmetrical 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket (if the hole spacing matches).

5¼ Speakers: While a 5¼ speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5¼ is approximately ½" smaller than the opening in the bracket, making a 6½ or 6¾ a better fit. When using a 5¼, a speaker baffle must also be used to seal the rear of the speaker.

Dimensions:

• Inner Diameter: 5.74" (not accounting for the inner tabs)
• Height: 1.748"
• Three-Hole Tab Spacing (6½): 4.637"-4.928"
• Four-Hole Tab Spacing (6½):
  • Perimeter: 3.8"-4.03"
  • Diagonal: 5.36"-5.68"
• Four-Hole Spacing (6¾):
  • Perimeter: 4.415"
  • Diagonal: 6.23"
