About the Metra E-5000 relay
Metra's E-5000 single pole-double throw (SPDT) relay is used in car security installations, primarily for interfacing with starter interrupt, door lock/unlock, and trunk release. Warranty: 60 days.

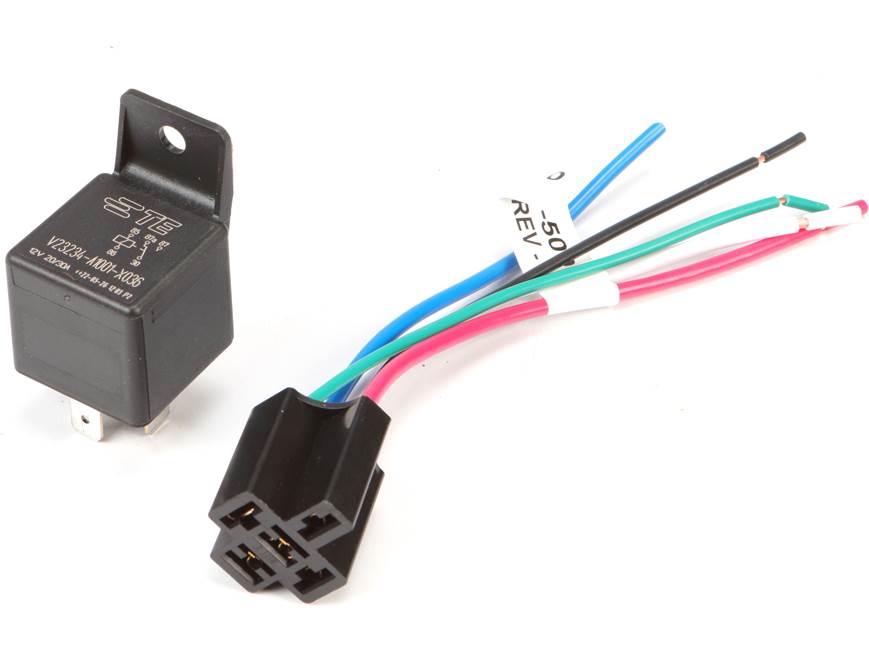

What's in the box:
Metra E-5000 relay owner's manual
- SPDT relay
- Plug with 5 attached wires (red/white/black/blue/green)
- Instruction/Application sheet
Reviews (55)
Customer reviews for Metra E-5000 relay
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Metra E-5000 relay

Product Research
Features
Overview: The SPDT (single-pole, double throw) relay is a switch controlled by a voltage input instead of a mechanical action. By sending current through the relay, you can turn a device on or off without touching the device. The relay consists of two parts: the relay, which includes a 5-blade socket, and the 5-blade plug with 5 wires. It has a capacity for up to 30 Amps.
Typical Applications:
- Relay Turn-On: for turning on/off high-current devices such as multiple amplifiers or neon lights
- Relay Turn-Off: for turning off or disabling a device such as a vehicle's starter system (in conjunction with a security system)
- Remote Trunk Release: for remote control opening of a vehicle trunk (in conjunction with a security system--requires existing power-assisted trunk release)
- Power Door Lock System: for remote control locking/unlocking of vehicle doors (in conjunction with a security system and aftermarket power door locks)
Wiring Considerations: Installation of this relay requires soldering of the connections. Installation of a 30-amp fuse and fuse holder may be required near the battery connection.
Loading accessories...
Customer Q&A
3 questions already asked
Loading articles...
I had a problem in my car. i had a cap, jl 1000/1 and a TMA320.4 running off the same REM line from my head unit. It simply wasnt enough power to startup all of the components. I put this relay in to put more power into the amps to start them up. Its a great thing and works flawlessly
Paul from Stamford, CT
