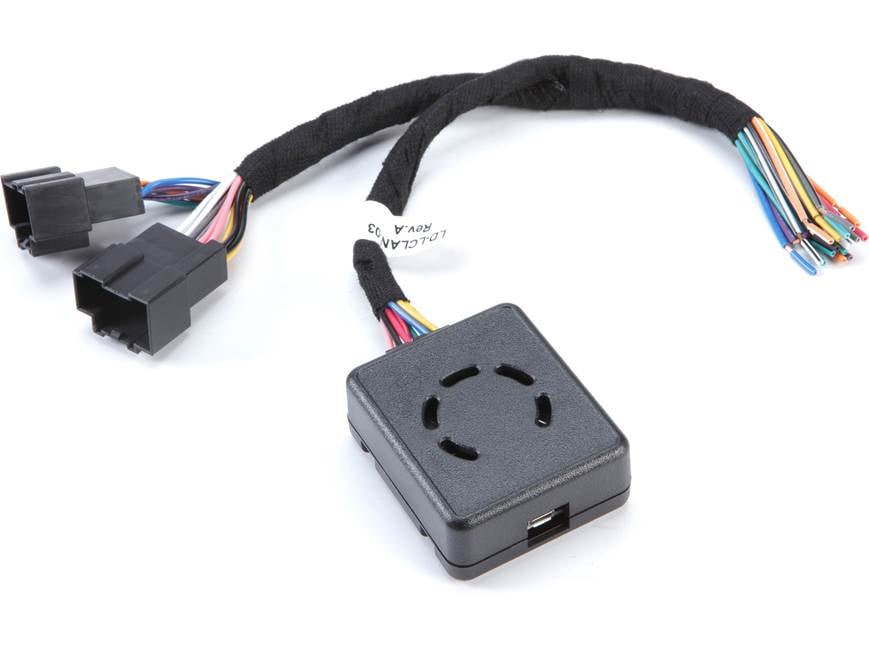

Metra LC-GMRC-LAN-03 Wiring Interface

Connect a new car stereo and retain factory door chimes and audible safety warnings in select 2006-12 GM vehicles

Item # 120LCLAN03

Problem: Installing an aftermarket receiver in many late model GM vehicles means losing the chime that warns the...

Find what Fits your vehicle

Problem: Installing an aftermarket receiver in many late model GM vehicles means losing the chime that warns the...

Item # 120LCLAN03

In stock

About the Metra LC-GMRC-LAN-03 Wiring Interface

Problem: Installing an aftermarket receiver in many late model GM vehicles means losing the chime that warns the door is open, along with other audible safety warnings. You want to retain the chime and warnings, but you don't want to keep the factory amp or OnStar®.

Problem: Installing an aftermarket receiver in many late model GM vehicles means losing the chime that warns the door is open, along with other audible safety warnings. You want to retain the chime and warnings, but you don't want to keep the factory amp or OnStar®.

 Solution: Metra's LC-GMRC-LAN-03 GM Data Bus Interface lets you replace the factory receiver in these vehicles and keep all audible safety warnings, without having to spend the extra cash for an adapter that retains features that you aren't going to use.

Wire up the LC-GMRC-LAN-03 to your aftermarket radio, mount the module in a location where the chime can be heard, and plug it into the existing factory plug. Get the great sound you want, and keep all important safety features intact. Warranty: 1 year.

Important Note: This LC-GMRC-LAN-03 interface allows you to keep your factory door chime (needed to keep audible safety warnings functioning) while providing a switched 12-volt power source for your new radio. If you do not use a compatible adapter when you replace your factory radio, you will disable the audible warning system in your vehicle. Crutchfield cannot provide a free wiring harness for your vehicle, and we strongly recommend that you use this interface when replacing this vehicle's factory radio. Failure to do so may result in serious injury or death.


What's in the box:

  • Radio replacement interface
  • Interface wiring harness
  • Rear speaker harness
  • Installation Instructions

Customer reviews

Loading reviews...

Metra LC-GMRC-LAN-03 Wiring Interface reviews

Average review:

142 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)



Crutchfield response

<< >>

More details on the Metra LC-GMRC-LAN-03 Wiring Interface

Stacey B.
The Metra LC-GMRC-LAN-03 Wiring Interface replaces these items:

Product Research


Vehicle Compatibility: The Axxess Integrate LC-GMRC-LAN-03 is designed for use in select 2006-2012 GM vehicles with non-amplified factory systems (or when replacing the factory amplified system) and without OnStar.

Make Model Year
Chevy Cobalt 2007-2010
HHR 2006-2011
Malibu 2008-2012
Pontiac G5 2007-2009
G6 2009*
G6 2010
Solstice 2006-2009
Saturn Aura 2007-2009
Sky 2007-2009

*The 5th digit of the 2009 G6's VIN must be a J, K, or L.

Retained Features: The LC-GMRC-LAN-03 provides +12V/3A accessory output, retains warning chimes, and retains R.A.P. (retained accessory power).

  • +12V Accessory Output: In many GM vehicles, there is no 12-volt accessory wire in the factory harness, which requires the installer to run an accessory wire to the fuse box or underneath the steering column when installing an aftermarket radio. The LC-GMRC-LAN-01 is designed to provide a 12V/3A switched accessory output (red wire).
  • Warning Chimes: The LC-GMRC-LAN-01 retains factory warning chimes through the use of an on-board speaker.
  • Retained Accessory Power (R.A.P.): The ignition power source of most GM vehicles keeps the radio on until one of the doors is opened. This feature is called the R.A.P. (retained accessory power). The LC-GMRC-LAN-01 is designed to retain this feature.

Wiring Harnesses: The main interface wiring harness has a white 4-pin female connector on one end and a black 14-pin male connector (9-pins present) on the other end. The 4-pin connector plugs into the LC-GMRC-LAN-03 and the 14-pin connector interfaces with the existing factory plug. The harness also includes 9 bare wires that will need to be hardwired to your new aftermarket radio's harness. There is an second wiring harness (rear speaker harness) with a 16-pin male connector (6-pins present) on one end and six bare wires on other end. The 16-pin connector plugs into your vehicle's factory radio plug, while the bare wires hard wire to your new radio.

Harness Type Wire Color Function
Main Interface Harness Red +12V Accessory
Yellow +12V Constant
Black Ground
White Left Front Speaker +
White/black Left Front Speaker -
Gray Right Front Speaker +
Gray/black Right Front Speaker -
Orange/white Illumination
Orange Not Used
Blue/pink Vehicle Speed Sense
Green/purple Reverse Gear
Light Green Parking Brake
Rear Speaker Harness Green Left Rear Speaker +
Green/black Left Rear Speaker -
Purple Right Rear Speaker +
Purple/black Right Rear Speaker -
Orange Dimmer
Blue Power Antenna

Loading accessories...

Customer Q&A

9 questions already asked

The black box has micro USB plug on it what's that for?
[ Joshemawa  Apr 10, 2022 ]
1 answer
It's used to connect it to your computer and update the software before you install it in your car. You don't need a USB cable to connect it in the car.
[ AMBER  Apr 10, 2022 ]
The black box that come with the harness the large side I understand plugs into harness but what is the smaller plug on other side that looks like the end of a phone charger?
[ Sean  Feb 16, 2021 ]
1 answer
We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
[ Calvin  Mar 04, 2021 ]  Staff
Will this harness retain steering wheel controls?
[ Clayton  Jan 09, 2021 ]
1 answer
The ability to retain steering wheel controls with aftermarket receivers will be determined by the receiver you are using and the vehicle you have. For full information on this type of integration (including the parts you will need) please contact an Advisor by phone (1-800-324-9695) or online chat.
[ Krissy  Jan 21, 2021 ]  Staff
what is the extra black box for? is it necissary for a new head unit to be installed?
[ Austin  Oct 01, 2020 ]
2 answers
It makes some of the vehicle sounds like the turn signal clicks
[ Benito  Oct 02, 2020 ]
Yes, it keeps the door chime when the door is open. Sometimes when install an aftermarket head unit, you lose the factory door chime.
[ Robert A.  Oct 01, 2020 ]
Does this have a remote turn on wire to install an aftermarket subwoofer?
[ Garrett  Jun 28, 2020 ]
2 answers
There is a switched, 12-volt power wire for the radio to turn on and off with the vehicle but there is not an additional remote turn on for a subwoofer. That would typically be something you would add separately in an amp wiring kit along with power, ground, etc. You can connect with one of our friendly product advisors to put together a complete cart with everything you will need here:
[ Cosmo  Jul 13, 2020 ]  Staff
If I remember correctly, yes. I have an amp and sub installed for my car. Just make sure everything is connected so it doesn't come loose.
[ James  Jul 13, 2020 ]
Would i have to re wire a power source to make my new radio work?
[ kenard  Dec 26, 2017 ]
2 answers
No, this is a plug and play design. The only wires you need to solder will be the ones from the new deck harness, to this harness.
[ John  Dec 29, 2017 ]
The wire should go where the power source was wired originally. Referring to the crutch field memo/instructions that should come with the order if i'm not mistaken, but if not call crutch field's excellent experienced customer service. They will definitely know the answer!
[ Alex  Dec 26, 2017 ]
Will this work with the premium stereo and allow the use of the factory subwoofer?
[ Josh  Dec 07, 2016 ]
1 answer
You will want to contact an Advisor by phone (1-800-324-9695) or online chat to discuss compatibility with your factory system. They will be able to pull up your vehicle and see if this will integrate. If it does not, then they will also be able to discuss other options with you.
[ Kenny  Dec 07, 2016 ]  Staff
Is this necessary for a head unit?
[ Brady  Aug 13, 2014 ]
1 answer
For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
[ Krissy  Aug 14, 2014 ]  Staff
