Metra 109-UN02 Floating Kit Works with a double-DIN dash kit to install Pioneer's DMH-WC6600NEX multimedia receiver with its 9" screen in select vehicles (Black)

Item # 120P9UN02

Pioneer designed a unique solution in the DMH-WC6600NEX digital multimedia receiver , which consists of a...

Find what Fits your vehicle

Remove

Checking fit...

Pioneer designed a unique solution in the DMH-WC6600NEX digital multimedia receiver , which consists of a...

Item # 120P9UN02

About the Metra 109-UN02 Floating Kit

A special kit for a special Pioneer stereo

Pioneer designed a unique solution in the DMH-WC6600NEX digital multimedia receiver, which consists of a "black box" and a separate 9" touchscreen connected by a proprietary cable. Not surprisingly, your standard double-DIN dash kit won't accommodate this kind of touchscreen. So, Metra worked with Pioneer to provide this unique "floating" double-DIN adapter kit for a clean installation of the DMH-WC6600NEX in most vehicles with a 4" tall dash opening.

A special kit for a special Pioneer stereo

Pioneer designed a unique solution in the DMH-WC6600NEX digital multimedia receiver, which consists of a "black box" and a separate 9" touchscreen connected by a proprietary cable. Not surprisingly, your standard double-DIN dash kit won't accommodate this kind of touchscreen. So, Metra worked with Pioneer to provide this unique "floating" double-DIN adapter kit for a clean installation of the DMH-WC6600NEX in most vehicles with a 4" tall dash opening.

Here's how it works. First, you install the double-DIN dash kit designed for your vehicle (sold separately). Then this Metra 109-UN02 floating kit provides a housing for the Pioneer receiver's separate 9" touchscreen so it floats over your dash, secured by the dash kit. The radio's chassis mounts in the lower half of the dash opening.

READ LESS

Product highlights:

  • universal dash kit for Pioneer's DMH-WC6600NEX receiver
  • works in conjunction with double-DIN dash kit for your vehicle
  • designed for Pioneer's DMH-WC6600NEX multimedia receiver with 9" screen
  • warranty: 1 year
  • MFR # 109-UN02

What's in the box:

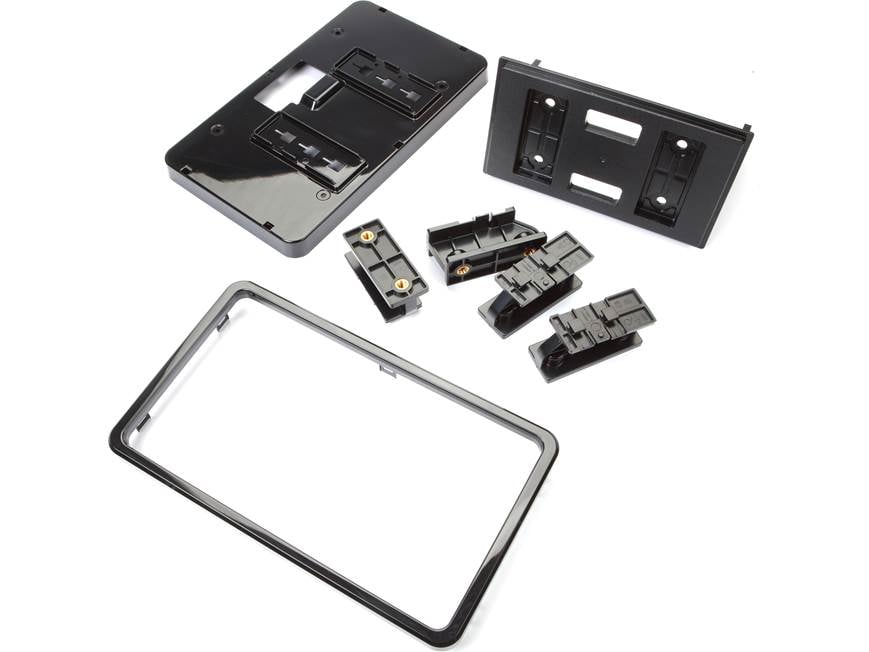

  • Assembly mount
