Features

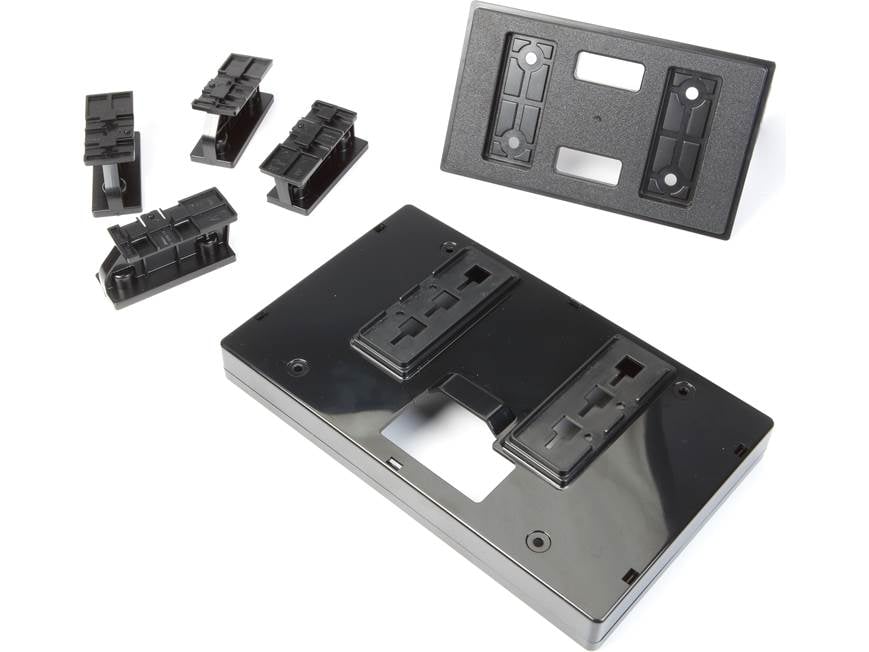

Compatibility: The Metra 108-UN02 Floating Mount Kit is engineered exclusively for Pioneer's DMH-C5500NEX digital media receiver with a 8" touchscreen monitor. The Metra 108-UN02 kit "floats" the Pioneer DMH-C5500NEX's 8" screen in front of your vehicle's factory radio location using a series of brackets that provide the ability to mount the DMH-C5500NEX's chassis into the pocket location of the majority of Double-DIN kits (sold separately) for a variety of vehicle applications.

• The 108-UN02 can be installed in many different configurations to fit many vehicle applications, and can also be customized to take adjustments even further. Careful consideration must be taken ahead of time before assembling the kit. Items to consider are the angle of the factory radio and dash, the depth of the radio opening, and items which may be blocked by the radio display or interfere with it.
• The 108-UN02 will mount into the lower portion of the Metra dash kit, and the DMH-C5500NEX chassis will mount above that. The 108-UN02 can be flipped 180-degrees to allow more room above in certain installations where upper sub-dash depth is an issue. The kit also allows for depth adjustment in the dash.
• Two different brackets are provided to compensate for different dash angles. If the dash is angled, use the 5-degree brackets. Washers (not provided) can also be used if more than a 5-degree angle is necessary. The brackets can also be flipped 180-degrees to allow the display screen to sit higher.
• The cable from the radio chassis to the radio display may not be long enough in certain installations. It is highly recommended to purchase Pioneer's CD-RGB150E extension cable (sold separately).

Dimensions: Kit opening dimensions.

• Width = 8.505"
• Height = 5.005"
• Depth = 0.315"
