Metra Speaker Terminal

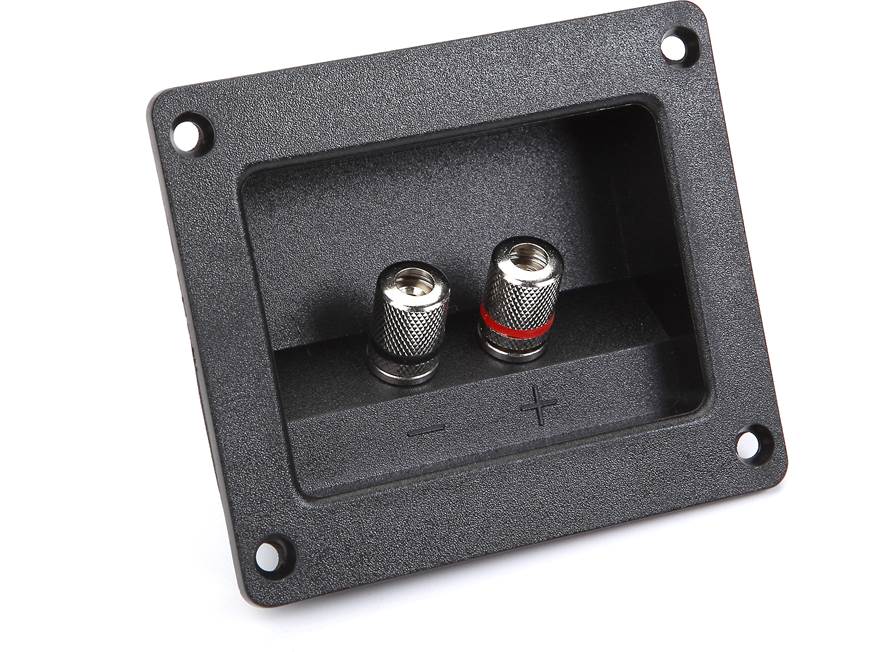

Square terminal cup with binding post connectors (for do-it-yourself box builders)

Item # 120TCSB

Item # 120TCSB

In stock
C$19.99

Since 1974

Years of experience making people happy.

Free lifetime tech support

Whenever you need a hand.

Hands-on research

We double check the details on each item.

About the Metra Speaker Terminal

Dominic DeVito

This Metra square terminal cup features binding post terminals that make it easy to connect speaker wire to your speaker or subwoofer box. The pass-through binding posts accept bare wire, spade lugs, and banana plugs. Knobs are colour-coded for positive and negative connections. Warranty: 60 days.

What's in the box:

  • Rectangular terminal cup with two binding post connectors
MFR #TCSB

Customer reviews

Loading reviews...

Metra Speaker Terminal reviews

Average review:

32 reviews

Filter by rating

Customer photos

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Pros:

Cons:

Crutchfield response

<< >>

More details on the Metra Speaker Terminal

Mark G.

Product Research

Overview

General Overview: This rectangular 5-way binding post terminal cup will accept pin connectors, spade lugs, single and dual banana plugs, and bare wire up to 10 gauge. The posts are color-coded for positive and negative terminals. On the side that connects to the speaker, there are two 0.205" male quick-slides (will accept a 0.205" female quick slide). The wire can also be attached using the nut holding the quick-slides in place.

Note: Speaker wire and female quick-slides are needed to connect the terminals to the speakers.

Cut-Out Dimensions: The rectangular terminal cup requires a cut-out of 2.915" (wide) x 2.125" (high).

Loading accessories...

Customer Q&A

2 questions already asked

Q
What should you use for an adhesive along with the screws I don't want it to rattle or whistle?
[ Nunya  Jul 10, 2019 ]
5 answers
A
So this part was installed into a custom built sub box. Depending on how thick your box is should determine the length of your screws. I used 1/2" wood screws, and liquid nail. But it already had a snug fit for the hole I cut and carpet that the box was wrapped in.
[ James  Jul 18, 2019 ]
A
I used liquid nail as a gasket and then screwed it down, much how the rest of the enclosures was constructed. This was also the first enclosure I built due to where I wanted to hide the sub, so my advice should hold little weight. I also built it keeping in mind that it was only going to be for a single 12, 500watt, low volume enclosure setup, I didn't have to build Fort Knox.
[ Travis  Jul 17, 2019 ]
A
you can try a multi purpose industrial epoxy adhesive or i hear super glue works well. be careful not to over use the super glue upon application.
[ CHRISTOPHER  Jul 17, 2019 ]
A
It didnt rattle in my box but simple calking should do, or even put electrical tape on the back edges before screwing it down
[ KEVIN  Jul 17, 2019 ]
A
You could apply silicone sealant or construction adhesive around the inside flange prior to inserting it into the box to ensure a tight seal.
[ daniel  Jul 10, 2019 ]
Q
Is this metal or plastic?
[ JW  Mar 17, 2017 ]
5 answers
A
Everything is plastic, minus the terminals obviously, which are metal.
[ Cody  Mar 20, 2017 ]
A
It's plastic. Pretty good rigidity though. The terminals themselves are metal.
[ justin  Mar 19, 2017 ]
A
Plastic
[ ryan  Mar 19, 2017 ]
A
Plastic
[ Jansen  Mar 19, 2017 ]
A
Plastic I am happy with it
[ JEFFERY  Mar 19, 2017 ]
