About the Pioneer RD-RGB150A
If your dash is too shallow for a conventional radio or you're doing a stealth install, you may need more cable length when installing a Pioneer DMH-C head unit. This Pioneer RD-RGB150A extension cable provides an additional 63" RGB cable plus power and ground wires, as well as a 31" antenna extension cable. Warranty: 1 year.
What's in the box:

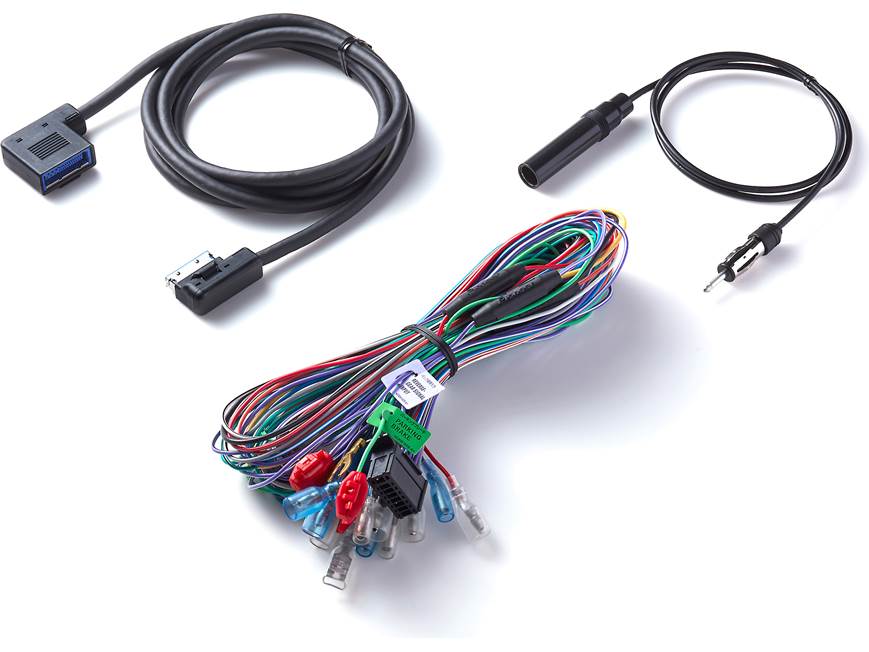

- 63" RGB extension cable
- 5' Wiring harness
- 31" Antenna extension cable
- Disposal note
Customer reviews for Pioneer RD-RGB150A
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Pioneer RD-RGB150A
Product Research
Features
RGB Extension Kit: The Pioneer RD-RGB150A is an RGB Extension Kit consisting of a 63" RGB cable, 31" antenna adapter cable, and 5' wiring harness that allows the remote installation of the hideaway chassis body and touchscreen monitor for a Pioneer modular receiver; including the DMH-C5500NEX, DMH-C2550NEX, and DMH-C2500NEX.
- 63" Extension Cable: One end of the cable plugs into the compatible Pioneer modular receiver's chassis body and the other end into the Pioneer modular receiver's touchscreen monitor.
- 31" Antenna Adapter Cable: On one end of the antenna adapter is a male motorola plug that plugs into the Pioneer modular receiver's hide-away chassis body. On the the other end of the antenna adapter is a female motorola plug which connects to your vehicle's antenna cable.
- 5' Wiring Harness: The included 5' wiring harness replaces the wiring harness that comes with the Pioneer modular receiver and plugs into the hide-away chassis body.
Wiring Harness Chart:
Black 16-Pin Connector | ||
---|---|---|
Pin # | Wire Color | Function |
1 | Yellow | +12 Volt Constat |
2 | Red | +12 Volt Accessory |
3 | Orange/White | Illumination |
4 | Light Green | Parking Brake |
5 | Green/Black | Left Rear Speaker Output (-) |
6 | Green | Left Rear Speaker Output (+) |
7 | White/Black | Left Front Speaker Output (-) |
8 | White | Left Front Speaker Output (+) |
9 | Black | Ground |
10 | Violet/White | Reverse Gear |
11 | Blue/White | Amp Turn-On |
12 | Open | None |
13 | Violet/Black | Right Rear Speaker Output (-) |
14 | Violet | Right Rear Speaker Output (+) |
15 | Gray/Black | Right Front Speaker Output (-) |
16 | Gray | Right Front Speaker Output (+) |
The Pioneer RD-RGB150A replaces these items
Pioneer CD-RGB150E
- add 63" of length for Pioneer DHM-C head unit installations
