About the Pioneer TS-A2000LD2
A shallow-mount sub that rocks
A shallow-mount sub that rocks

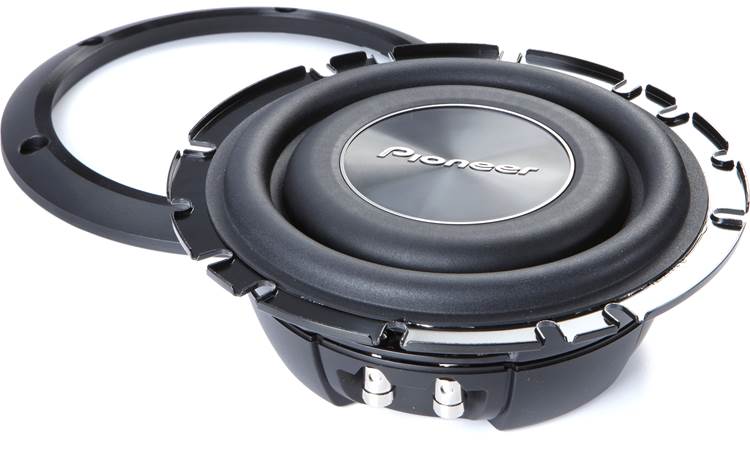

Pioneer's TS Series shallow-mount subs bring great bass to vehicles where conventional subs won't fit. Their low profile allows the use of slender enclosures that'll fit behind a truck seat or into any tight space while delivering the bass performance you need. The TS-A2000LD2 8" shallow-mount sub handles up to 250 watts RMS with a mounting depth of just 2-5/8".
Mica-injected moulded resin cone
The TS-A2000LD2 features an oversized cone made of mica and glass-fibre reinforced polypropylene that moves more air and delivers accurate bass. The dual 2-ohm voice coils allow you to wire the sub for 1- or 4-ohm impedance. The sub works best in a small sealed enclosure, making it ideal for those tight spaces in today's smaller vehicles.
- Featured in our article: Best shallow-mount car subwoofers for 2023
- 8" shallow subwoofer with dual 2-ohm voice coils
- glass fiber and mica reinforced polypropylene cone with rubber surround
- power handling: 250 watts RMS (700 watts peak)
- frequency response: 20-1400 Hz
- sensitivity: 83 dB
- mounting depth: 2-5/8"
- cutout diameter: 7"
- box volume: 0.15-0.5 cubic feet
- grille not included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # TS-A2000LD2
What's in the box:
Pioneer TS-A2000LD2 owner's manual
- One 8" Pioneer shallow mount subwoofer
- Trim ring
- Six 1-1/8" Screws
- Adhesive backed foam gasket
- Manual (English/ German/ French/ Spanish/ Portuguese/ Italian/ Russian)
- Warranty information
- Enclosure recommendations printed on the box
Pioneer TS-A2000LD2 reviews
This review was collected as part of a promotion
More details on the Pioneer TS-A2000LD2
Features & specs
|Impedance (Ohms)||1, 4|
|Cone Material||Glass Fiber/Mica Reinforced IM|
|Ideal Sealed Box Volume (cubic feet)||0.5|
|Ideal Ported Box Volume (cubic feet)||0.5|
|Port diameter (inches)||3|
|Port length (inches)||8|
|Dual Voice Coil||Yes|
83 dB at 1 watt |
|Frequency Response||20 - 1400 Hz|
|Max RMS Power Handling||250|
|Peak Power Handling (Watts)||700|
|Top Mount Depth (inches)||2 11/16|
|Bottom Mount Depth (inches)||N/A|
|Cutout Diameter or Length (inches)||6 15/16|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
Woofer Cone: Pioneer uses a glass fiber and mica reinforced injection molded polypropylene (IMPP) cone, making it more rigid than polypropylene alone.
Shallow Mount Woofer: Pioneer's Shallow-Mount subwoofers are designed to provide wider installation options for a broad range of vehicles. They can be mounted in select factory subwoofer locations, as well as behind or under the seats of many vehicles.
Dual 2Ω Voice Coils: This woofer features two 2Ω voice coils that offer wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 1Ω load. When the voice coils are wired in series, the woofer presents a 4Ω load.
Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.
Sealed Box Volume: Pioneer recommends a sealed enclosure with an internal volume between 0.15 ft³ and 0.5 ft³, with an ideal volume of 0.5 ft³. Sealed enclosures provide the most control over the woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box Volume: The recommended ported box volume ranges from 0.25 ft³ to 0.5 ft³, with the ideal size being 0.5 ft³, using a single 3" diameter x 8" long port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.
Measurements: When mounting the woofer with the trim ring, the dimensions change as follows:
- Mounting Height: 0.54"
- Flange Height: 0.54"
- Frame Diameter: 8.9"
The Pioneer TS-A2000LD2 replaces these items
- mica-injected resin cone
- handles up to 150 watts RMS (600 watts peak power)
- works in free-air applications
