About the Pioneer TS-A2500LS4
A shallow-mount sub that rocks
A shallow-mount sub that rocks

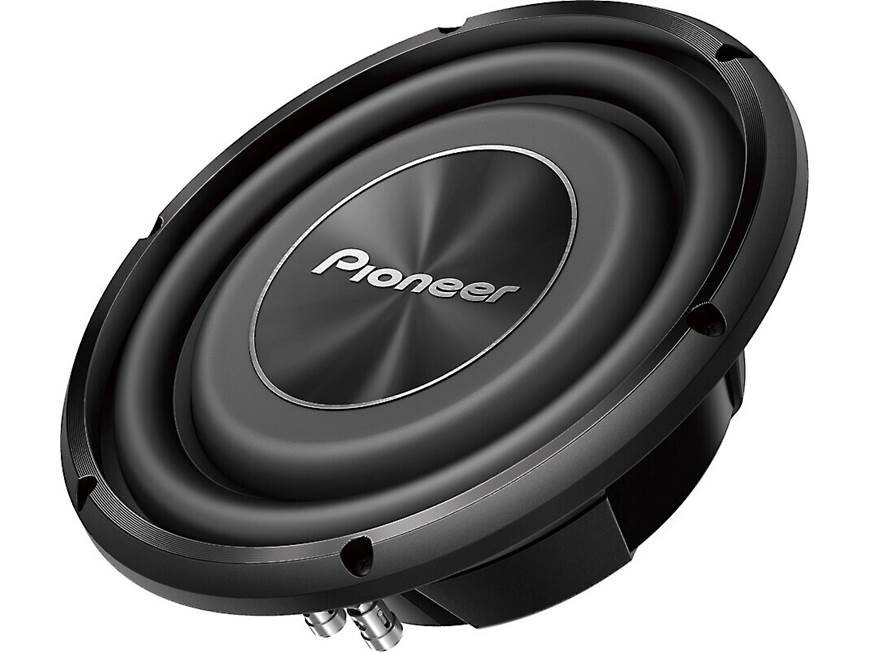

Pioneer's TS Series shallow-mount subs bring great bass to vehicles where conventional subs won't fit. Their low profile allows the use of slender enclosures that'll fit behind a truck seat or in any tight space while delivering the bass performance you need. The TS-A2500LS4 10" shallow-mount sub handles up to 300 watts with a mounting depth of just 3-1/4".
The TS-A2500LS4 features an oversized, glass fibre and mica reinforced polypropylene cone that moves more air and delivers accurate bass. The sub works best in a small sealed enclosure, making it ideal for fitting those tight spaces in today's smaller vehicles.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- 10" 4-ohm shallow subwoofer
- glass fiber and mica reinforced polypropylene cone with rubber surround
- power handling: 300 watts RMS (1,200 watts peak)
- frequency response: 20-900 Hz
- sensitivity: 85 dB
- top-mount depth: 3-1/4"
- cutout diameter: 9"
- sealed box volume: 0.35-0.7 cubic feet
- ported box volume: 0.5-0.7 cubic feet
- grille not included
- warranty: 1 year
- MFR # TS-A2500LS4
What's in the box:
Pioneer TS-A2500LS4 owner's manual
- One 10" Subwoofer
- Trim ring
- Six 1-1/8" Screws
- Adhesive backed foam gasket
- Manual (English/ German/ French/ Spanish/ Portuguese/ Italian/ Russian)
- Warranty information
- Enclosure recommendations printed on the box
Customer reviews for Pioneer TS-A2500LS4
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Pioneer TS-A2500LS4
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10 -inch | |
| Impedance (Ohms) | 4 | |
| Cone Material | Glass Fiber/Mica Reinforced IM | |
| Surround Material | Rubber | |
| Port diameter (inches) | 3 | |
| Port length (inches) | 7.5 | |
| Free-Air | Yes | |
| Dual Voice Coil | No | |
| Sensitivity |
85 dB at 1 watt | |
| Frequency Response | 20 - 900 Hz | |
| Max RMS Power Handling | 300 | |
| Peak Power Handling (Watts) | 1200 | |
| Top Mount Depth (inches) | 3 1/2 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 1/16 | |
| Frame Width | 10.47 | |
| Frame Length | 10.47 | |
| Vas (liters) | 17.9 | |
| Fs (Hz) | 38 | |
| Qts | 0.83 | |
| Xmax (millimeters) | 8.3 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.6 | |
| Minimum Sealed Box Volume (cubic feet) | 0.35 | |
| Maximum Sealed Box Volume (cubic feet) | 0.7 | |
| Ideal Ported Box Volume (cubic feet) | 0.6 | |
| Minimum Ported Box Volume (cubic feet) | 0.5 | |
| Maximum Ported Box Volume (cubic feet) | 0.7 | |
Product Research
Features
Woofer Cone: Pioneer uses a glass fiber and mica reinforced injection molded polypropylene (IMPP) cone, making it more rigid than polypropylene alone.
Shallow Mount Woofer: Pioneer's "Shallow-Mount" subwoofers are designed to provide wider installation options for a broad range of vehicles. They can be mounted behind or under the seats of many vehicles.
Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 8 gauge.
Sealed Box Volume: Pioneer recommends a sealed enclosure with an internal volume between 0.35 ft³ and 0.7 ft³, with an ideal volume of 0.6 ft³. Sealed enclosures provide the most control over the woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box Volume: The recommended ported box volume ranges from 0.5 ft³ to 0.7 ft³, with the ideal size being 0.6 ft³, using a single 3" diameter x 7½" long port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.
Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by 75% (to 75 watts RMS).
Measurements: When mounting the woofer without the trim ring, the dimensions change as follows:
- Mounting Height: 0.542"
- Flange Height: 0.19"
- Frame Diameter: 10.305"
The Pioneer TS-A2500LS4 replaces these items
Pioneer TS-SW2502S4
- 10" 4-ohm shallow subwoofer
- power range: 100-300 watts RMS (1,200 watts peak power)
- mounting depth: 3-1/8"
Loading...
Loading accessories...
Customer Q&A
4 questions already asked
Loading...
Loading articles...
I just built a very small sealed enclosure for this sub to fit into under seat storage bin of my Ford Maverick truck. Total volume of sealed enclosure is .65 cu. ft which comes out to .37 of useful volume. It sounds great and I am very pleased.
Paul from Jacksonville, FL
