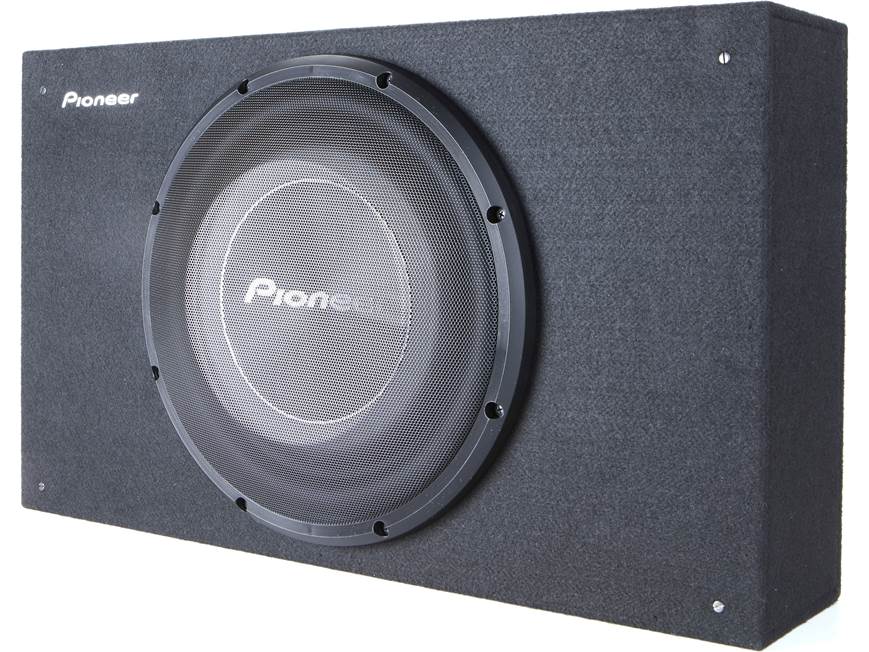

About the Pioneer TS-A3000LB
Space-saving shallow enclosure
Space-saving shallow enclosure
Need hard-hitting bass from a small enclosure? At only 6-3/4" deep, Pioneer's TS-A3000LB enclosure fits in in a wide variety of car trunks and truck applications, and delivers powerful performance without taking up a lot of space.
Home for a 12" sub
The enclosure houses a rugged Pioneer 12" sub, which features an oversized, injected polypropylene cone with a rubber surround to punch out deep bass with less distortion. Its dual-spider design helps to stabilize the cone and support the linear movement needed to pump out big volume.
The rugged enclosure is built of 5/8" MDF for strength, and is covered in black carpet with an embroidered Pioneer logo. A steel mesh grille protects the speaker against all the dangers of life behind a seat.
- sealed enclosure with one 12" subwoofer
- 5/8" medium density fiberboard construction covered with black carpet
- 2-ohm impedance
- power handling: 400 watts nominal (1500 watts peak power)
- frequency response: 20-1,000 Hz
- sensitivity: 88 dB
- dimensions: 23-5/8"W x 13-3/4"H x 6-3/4"D
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # TS-A3000LB
What's in the box:
- 12" Pre-loaded subwoofer enclosure
- 2 Mounting brackets
- Four 1.75" feet
- 4 Adhesive foot cushions
- Eight 1" screws
- Installation instructions
- Warranty information
More details on the Pioneer TS-A3000LB
Features & specs
|Woofer Size (inches)||12|
|Speakers Per Box||1|
|Pieces in System||1|
|Connector Type||Binding post|
|Frequency Response||20-1,000 Hz|
|Power Range (Watts RMS)||400|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
Overview: The Pioneer TS-A3000LB is a pre-loaded, sealed subwoofer enclosure. It's passive design offers maximum flexibility in amplifier matching and in the wide variety of vehicles it can be used in.
A-Series: The TS-A3000LB is part of Pioneer's A-series speakers, purposely designed to match A-series full-range speakers, providing smooth and seamless sound characteristics with dynamic, high-impact bass.
Driver: The TS-A3000LB features a single 12" driver made with a glass fiber and a mica interlaced, injection molded polypropylene (IMPP) cone with butyl rubber surround, mounted in a matched sealed enclosure. Careful engineering of the entire motor structure and suspension system gives balanced and linear motion of the cone, both forward and reverse directions, maintaining a high level of linearity, even during high output/high excursion transients.
Enclosure: The TS-A3000LB features a compact, space-saving enclosure that's designed for optimal use of space. The carpeted enclosure is shallow enough for mounting in a variety of pickup trucks including standard- and extended-cab models. Its unique design and included mounting hardware allow it to be mounted upright or laying flat, facing up or down.
Mounting: Two metal angle-brackets and eight 1" screws are provided for mounting the enclosure to a trunk or rear compartment floor in an upright fashion. Four screw-on feet also allow the enclosure to be mounted flat under a seat in a down-firing configuration.
Terminals: Wire connection to the subwoofer enclosure is done through a pair of binding posts that can accommodate bare wire (up to 12AWG), banana plugs, or pin connectors.
- Driver Size: 12"
- Power Handling: 400 watts RMS / 1500 watts peak
- Frequency Range: 20Hz - 1kHz
- Sensitivity: 88dB
- Nominal Impedance: 2Ω
