About the JL Audio 12W6v3-D4
Bass that means business

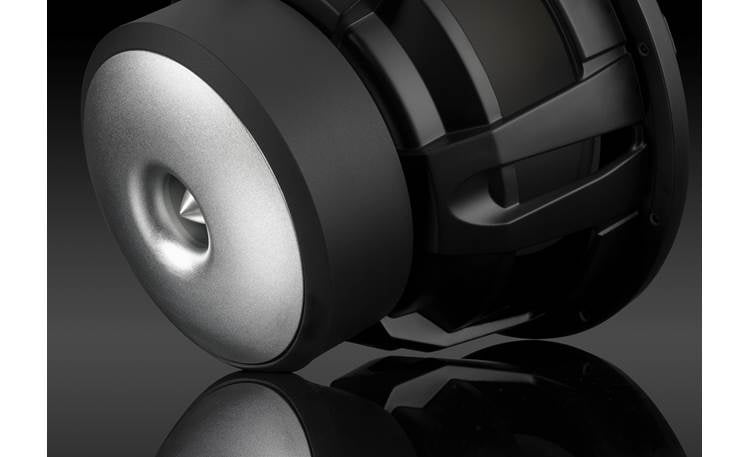

Pole-venting helps the sub stay cool when you turn the volume up.
Bass that means business
JL Audio's celebrated W6v3 subwoofers deliver knockout low end with incredible accuracy. The 12W6v3-D4 12" subwoofer uses a tough, mineral-filled polypropylene cone that offers incredible strength without the added bulk that can slow woofer response. JL Audio conducted extensive research to develop a motor structure that operates efficiently and precisely, so this sub can deliver powerful, reliable bass while handling up to 600 watts RMS. Exclusive cone-bonding assemblies, advanced cooling systems, and a highly stable spider attachment enhance reliability and promote long performance life.
Precision-crafted low end
The sub's solid cast-alloy basket allows your W6v3 sub to handle big-time power without any distortion-causing flexing. A sophisticated suspension system promotes linear cone movement for greater accuracy. The simple terminal jumper wiring system allows you to set the subwoofer's impedance to draw maximum power from your amplifier, or to design a multi-sub setup.
Get the sound and look you want

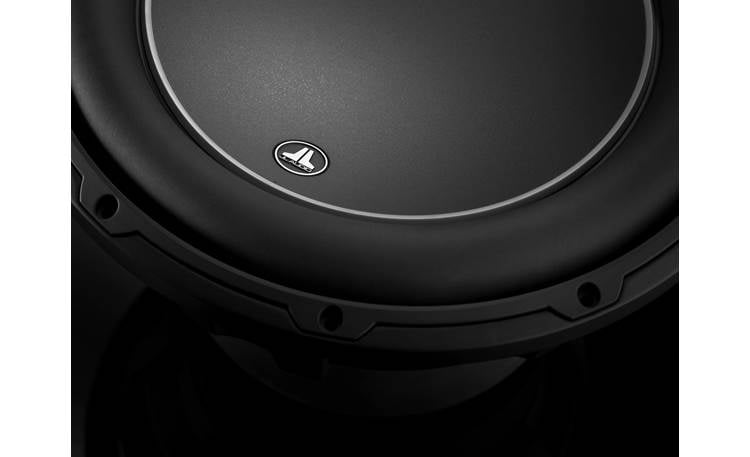

The elegant JL Audio medallion on the front shows the competition you mean business. Go for a special look with the removable black trim ring, which can be painted to match your installation theme. The 12W6v3-D4 works best in a compact enclosure, so you can get great bass in some tight places.
The terminal jumper system lets you easily adjust the sub's impedance.
- 12" subwoofer with dual 4-ohm voice coils
- mineral-filled polypropylene cone with rubber surround
- satin black cast-alloy basket
- power range: 200-600 watts RMS
- peak power handling: 1200 watts
- frequency response: 20-200 Hz
- sensitivity: 85.4 dB
- top-mount depth: 7-9/16"
- sealed box volume: 1.0 cubic feet
- ported box volume: 1.30 cubic feet
- grille not included
- warranty: 1 year
- MFR # 92141
What's in the box:
- One 12" Dual 4-ohm voice coil subwoofer
- 2 Voice coil jumper wires (installed)
- Black plastic trim ring (installed)
- Owner's manual
- Voice coil connection warning
Customer reviews for JL Audio 12W6v3-D4
More details on the JL Audio 12W6v3-D4
Features & specs
|Features and Specs|
|Impedance (Ohms)||2, 8|
|Cone Material||Mineral-filled IMPP|
|Port diameter (inches)||N/A|
|Port length (inches)||N/A|
|Dual Voice Coil||Yes|
85.4 dB at 1 watt |
|Frequency Response||20 - 200 Hz|
|Max RMS Power Handling||600|
|Peak Power Handling (Watts)||1200|
|Top Mount Depth (inches)||7 9/16|
|Bottom Mount Depth (inches)||N/A|
|Cutout Diameter or Length (inches)||11|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Ideal Sealed Box Volume (cubic feet)||1.105|
|Minimum Sealed Box Volume (cubic feet)||N/A|
|Maximum Sealed Box Volume (cubic feet)||N/A|
|Ideal Ported Box Volume (cubic feet)||1.405|
|Minimum Ported Box Volume (cubic feet)||N/A|
|Maximum Ported Box Volume (cubic feet)||N/A|
Dual Voice Coils: Due to the 12W6v3-D4's dual 4 ohm voice coils, the subwoofer can be configured as a 2-ohm (voice coils wired in parallel) or 8-ohm (voice coils wired in series) driver. The included jumper wires allow easy adjustment from one configuration to the other (the factory jumper position is 2-ohm).
Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, the 12W6v3-D4 motor remains linear over a long excursion range, and also maintains a stable fixed magnetic field in the gap over a wide power range. The result is reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
Pole-Vent Airflow Control (PVAC): The bullet-shaped structure inside the pole-vent directs airflow and increases air velocity to effectively reduce voice coil temperature, leading to improved fidelity and reliability.
Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Elevated Frame Cooling System: The elevated frame design of the 12W6v3-D4 delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Customizable Trim Ring: The woofer has a removable ring made of black ABS plastic which can be painted to match the installation theme and create a personalized look. You can purchase an optional mesh grille insert specifically designed to fit into the inner diameter of the trim ring (item number 136SGR126, sold separately).
Engineered Lead Wire System: JL Audio's engineered flying lead-wires have carefully engineered entry and exit support structures molded into the terminals and the voice coil collar and are jacketed to further reduce the likelihood of shorting and fatigue. The result is predictable high-excursion lead-wire behavior with long term reliability, and none of the compromises inherent to a woven-in lead wire system (when attached or woven into the spider material, lead-wires can alter the spider's motion, leading to asymmetrical spider behavior).
Sealed Enclosure: JL Audio recommends a sealed box size of 1.105 ft³ (1.0 ft³ net, plus the sub's 0.105 ft³ displacement). A diagram is provided in the owner's manual for a sealed box with external dimensions of 15" W x 15" H x 12" D, assuming 3/4" thick material. (If you are using 5/8" thick materials, subtract 1/4" from each dimension.)
Ported Enclosure: The ported box size JL Audio recommends is 1.405 ft³ (1.3 ft³ net, plus the sub's 0.105 ft³ displacement). The recommended slot port is 12-1/2" x 1-1/2" x 31-5/8", resulting in a tuning frequency of 33 Hz and a -3dB point of 31 Hz.
