About the JL Audio 8W3v3-4
Remarkably realistic bass
Remarkably realistic bass
JL Audio designed their W3v3 subwoofers to deliver powerful, accurate bass with a medium-power amplifier. Their extensive motor assembly research resulted in a design that ensures smooth, precise cone movement at any power level. Exclusive cooling features shunt heat away from the sub's internal motor structure for long term durability and reduced distortion. The W3v3 sub works well in a sealed or ported enclosure.

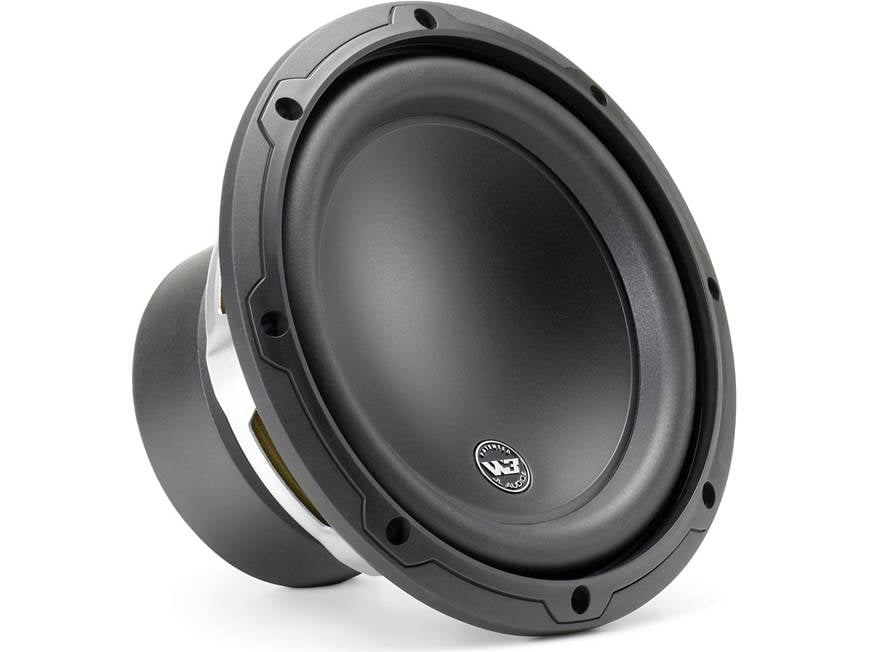

The 8W3v3-4 subwoofer boasts a 8" mineral-filled polypropylene cone with a distinctive metallic JL Audio medallion. A patented design eases the stress felt by the rubber surround during cone movement, for increased reliability and consistent bass output. The removable, customizable trim ring accepts optional JL Audio grilles, and can be painted to enhance your installation.
- Featured in our article: Best 8" car subwoofers for 2023
- 8" 4-ohm subwoofer
- mineral-filled polypropylene cone with nitrile-butylene rubber surround
- power range: 50-250 watts RMS
- peak power handling: 500 watts
- frequency response: 28-250 Hz
- sensitivity: 83.24 dB
- top-mount depth: 4-9/16"
- sealed box volume: 0.3 cubic feet
- ported box volume: 0.35 cubic feet
- grille not included
- warranty: 1 year
- MFR # 92148
What's in the box:
- One 8" Subwoofer
- Black plastic trim ring
- Owner's Manual
Customer reviews for JL Audio 8W3v3-4
More details on the JL Audio 8W3v3-4
Features & specs
|Features and Specs|
|Cone Material||Mineral-filled poly|
|Port diameter (inches)||2|
|Port length (inches)||18|
|Dual Voice Coil||No|
83.24 dB at 1 watt |
|Frequency Response||28 - 250 Hz|
|Max RMS Power Handling||250|
|Peak Power Handling (Watts)||500|
|Top Mount Depth (inches)||4 9/16|
|Bottom Mount Depth (inches)||N/A|
|Cutout Diameter or Length (inches)||7 1/16|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Ideal Sealed Box Volume (cubic feet)||0.3|
|Minimum Sealed Box Volume (cubic feet)||0.24|
|Maximum Sealed Box Volume (cubic feet)||0.38|
|Ideal Ported Box Volume (cubic feet)||0.35|
|Minimum Ported Box Volume (cubic feet)||N/A|
|Maximum Ported Box Volume (cubic feet)||N/A|
Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method aimed at improving dynamic motor behavior. As a result of DMA optimization, W3v3 motors remain linear in motor force over a very long range of excursion, and also maintain a highly stable fixed magnetic field in the gap over a wide power range. The result is vastly reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
Vented Reinforcement Collar (VRC): The Vented Reinforcement Collar is a composite structure that addresses two issues related to reliability. By reinforcing the critical junction between the cone, voice coil and spider, the VRC greatly reduces failures due to glue breakdown or material weaknesses. It does this by greatly increasing adhesive contact area and providing stress relief to the spider material at excursion extremes. the VRC also feature slots that facilitate air flow directly onto the voice coil windings to reduce thermal compression effects and enhances reliability.
Spider/Lead Wire Assembly: The W3v3 features a unique spider, coil and terminal subassembly which is assembled prior to installation in the speaker frame for optimum alignment and glue-joint integrity. The spider is insert-molded into a composite carrier tray which also incorporates the terminal assembly and lead wire strain relief features for enhanced reliability and optimal alignment of parts. The flying lead wires are carefully controlled and strain-relieved without resorting to woven-in lead wires, which can degrade spider performance.
Elevated Frame Cooling: The elevated frame design of the W3v3 delivers high-velocity air flow through slots directly above the top plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Surround Stress Relief: By creating a radiused feature on the edge of the cone, stress is relieved from the surround material at maximum forward excursion, resulting in longer life and more consistent surround behavior.
Customizable Trim Ring: The woofer comes with a removable ring made of black ABS plastic which can be painted to match the installation theme and create a personalized look. You can purchase optional grille mesh inserts which are specifically designed to fit into the inner diameter of the trim ring.
Recommended Sealed Box Volume: The sealed box size recommended by JL Audio is 0.30 cu/ft. A diagram is provided in the owner's manual for a sealed box with external dimensions of 12" W x 10" H x 8" D, assuming 3/4" thick material. (If you are using 5/8" thick materials, you should subtract 1/4" from each dimension.)
Recommended Ported Box Volume: The ported box size recommended by JL Audio is 0.35 cu/ft. A diagram is provided in the owner's manual for a ported box with external dimensions of 12.5" W x 10" H x 9.25" D, assuming 3/4" thick material. (If you are using 5/8" thick materials, you should subtract 1/4" from each dimension.) A rounded port is recommended with the following dimensions:
- Diameter = 2"
- Height = 18"
