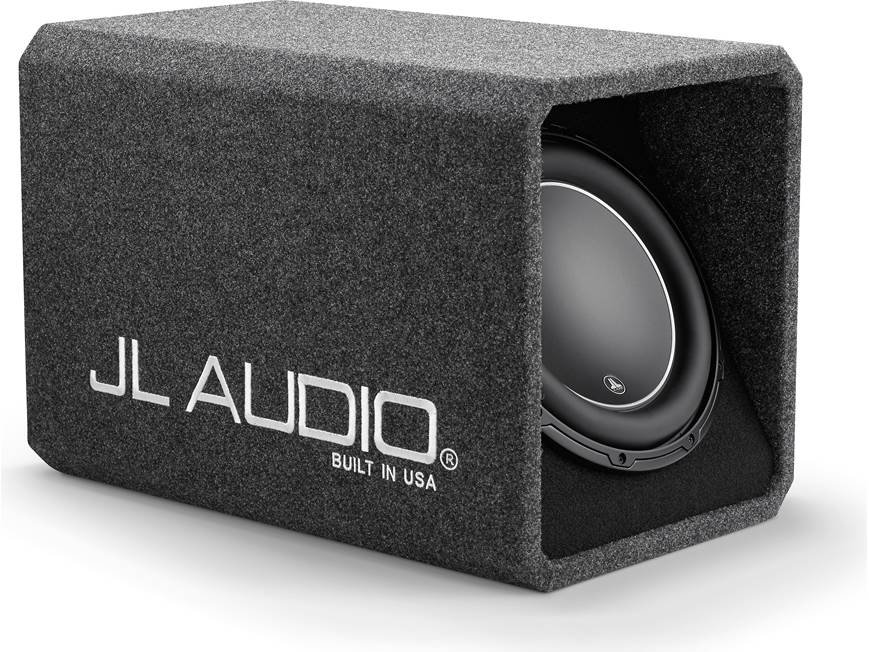

About the JL Audio HO112-W6v3

Powerful output, beautiful bass
Powerful output, beautiful bass
JL Audio built their High Output Enclosures to give you a great combination of high sound quality and powerful output. Engineers at JL Audio used a patented chamber-coupled port design to maximize bass production, and this unique enclosure is assembled by hand to exacting standards by the craftsmen at their Florida plant.
Tough 12" sub
The HO112-W6v3 is built around the 12" W6v3 subwoofer, which uses its rigid polypropylene cone to push plenty of air for some serious bass output. Extensive venting helps prevent thermal breakdown in the voice coil, so you'll get lasting, consistent performance. The enclosure is wired for 2-ohm total impedance and will handle up to 600 watts RMS.
Patented ported enclosure
JL Audio makes this enclosure from CNC-cut, industrial-grade 5/8" medium density fiberboard, covered by thick grey carpeting, The recessed mount for the speaker offers protection for the driver; a grille is also available separately for additional protection.
Product highlights:
- 12" subwoofer in ported enclosure
- 12" 12W6v3 speaker with dual 4-ohm voice coils
- 5/8" medium density fiberboard ported enclosure with carpet covering
- enclosure's patented chamber-coupled port design maximizes bass performance
- maximum power handling: 600 watts RMS
- 2-ohm total impedance
- assembled in the U.S.A.
- dimensions: 14-3/8"W x 16-1/4" H x 23-7/8"D
- weight: 60.7 lbs.
- warranty: 2 years (limited)
- MFR # 93315
What's in the box:
JL Audio HO112-W6v3 owner's manual
- Ported high output enclosure with one 12" 12W6v3 subwoofer installed
- Warranty information
Reviews (44)
Customer reviews for JL Audio HO112-W6v3
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JL Audio HO112-W6v3

Features & specs
General | ||
---|---|---|
Woofer Size (inches) | 12 | |
Speakers Per Box | 1 | |
Woofer Material | Mineral-fill IMPP | |
Enclosure Type | Ported | |
Color | Gray | |
Pieces in System | 1 | |
Width (inches) | 14-3/8 | |
Height (inches) | 16-1/4 | |
Depth (inches) | 23-7/8 | |
Connector Type | 5-way post | |
Frequency Response | 20-200 Hz | |
Power Range (Watts RMS) | 600 | |
Maximum Wattage | 1200 | |
Sensitivity | 85 dB | |
Impedance | 2 ohms | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years |
Product Research
Features
H.O. Wedge Enclosure: The HO112-W6v3 enclosure is designed around JL Audio's 12W6v3 subwoofer, using V-groove MDF construction with internal bracing to ensure structural integrity. The patented, chamber-coupled port design wraps around the inner enclosure boundary and terminates just above the woofer, coupling the port output to the woofer's direct output. This also provides the necessary surface area and port length to maximize the performance of the driver. The woofer's dual 4Ω voice coils are internally wired in parallel to present a 2Ω load.
Terminal: The enclosure features one pair of 5-way binding posts on the right side. They will accept pin connectors, spade connectors, single banana plugs, dual banana plugs (standard 3/4" width), and bare wire up to 10 gauge.
Enclosure Dimensions:
- Width: 14-3/8"
- Height: 16-1/4"
- Depth: 23-7/8"
