About the JL Audio M6-650X-S-GmTi-i
These 6-1/2" speakers really sing
These 6-1/2" speakers really sing
JL Audio's M6 Series marine speakers bring a whole new level of sound and style to your boat. These great-sounding 6-1/2” speakers combine innovative design with rugged, marine-ready componentry to give you outstanding audio performance. They'll really cut through wind, water, and engine noise. And, with built-in LED lighting, these speakers look as great as they sound.
Designed to sound great on your boat
The 3/4" treated-silk dome tweeters render brilliant highs, and true 2-way crossovers ensure that the woofer and tweeter work in perfect concert. You'll hear all the details of your music, even when the throttle is forward and you're skimming over the waves. You don't have to worry about mounting the crossovers, either, because they're attached to the speaker frames.
The coolest cones around

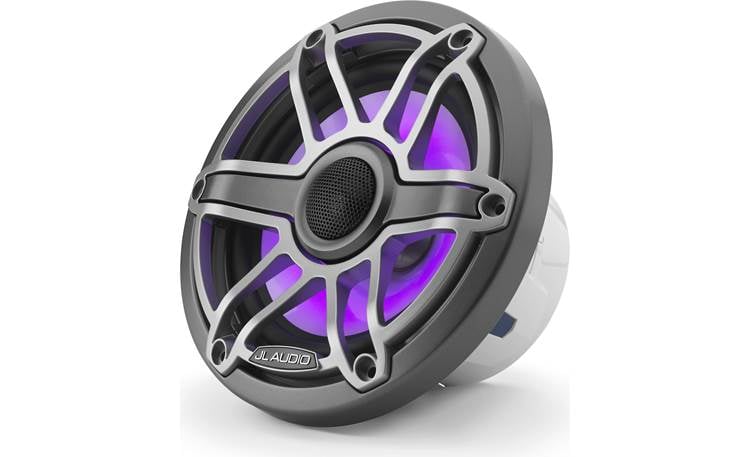

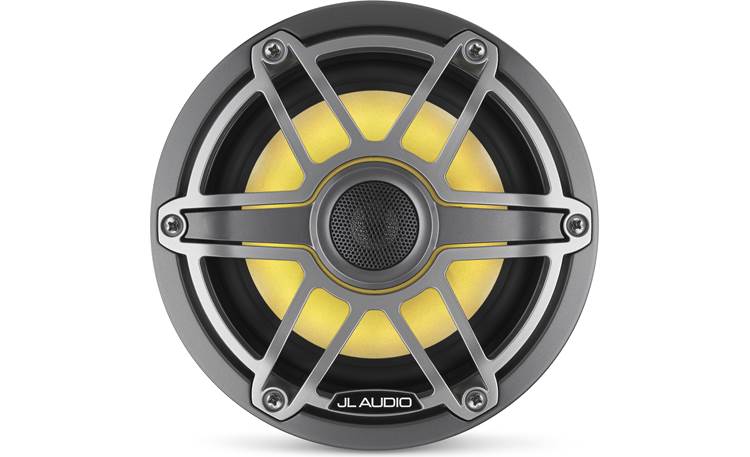

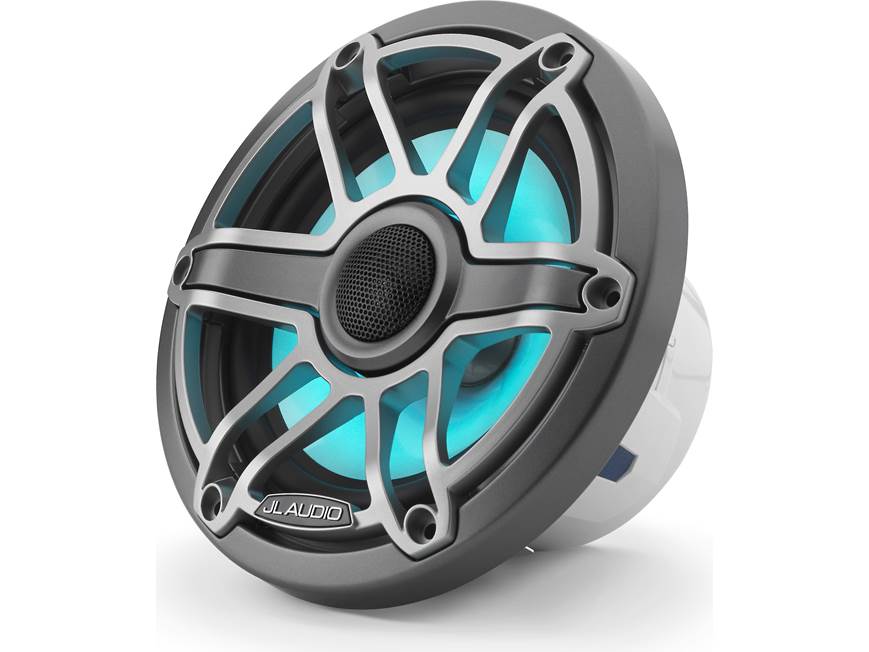

Any speaker with built-in lighting is cool enough, but JL Audio M6 speakers are something special. The unique Transflective™ cones are designed to both transflect light (the LEDs shine through) and reflect light (the cones look silver when the lights aren't in use), so your speakers will look awesome whether the lights are on or off.
The LEDs themselves are mounted to the speaker's frame and illuminate the cone from underneath. This very smart bit of engineering ensures smooth, vibrant light without the “hot spots” you'd notice on lesser LED speakers. It sounds like a subtle difference, but when you see them lit up, you'll understand what a huge improvement this is. You can choose from a variety of fixed lighting colours or control the colour and intensity of the lighting with the MLC-RW RGB LED Controller (coming soon).
Made for life on the water
All JL Audio marine speakers are designed to meet or exceed industry standards for salt, fog, and moisture resistance. They're built tough, too, with UV-resistant grilles and corrosion-resistant polymer baskets that surround the internal structure for extra protection. The marine-grade synthetic fibre spider, injection-moulded polypropylene cone, and synthetic rubber surround provide outstanding performance, while shrugging off sun, salt, and moisture. As an added bonus, you're protected by JL Audio's 2-year warranty.
Product highlights:
- 6-1/2" 2-way marine speakers with RGB LED lighting (pair)
- injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- 3/4" silk dome tweeter
- 2-way crossover attached to the woofer basket
- UV- and corrosion-resistant polymer baskets and grilles
- Transflective cones emit even glow when lit, appear silver with lighting off
- designed for free-air applications (no enclosures needed)
- power handling: 75 watts RMS (150 watts peak power)
- frequency response: 55-25,000 Hz
- sensitivity: 89.5 dB
- impedance: 4 ohms
- cutout diameter: 4.979
- frame diameter: 6.898
- mounting depth: 3.036
- warranty: 2 years
- MFR # 93715
What's in the box:
JL Audio M6-650X-S-GmTi-i owner's manual
- Two 2-way Marine speakers
- 2 Grilles
- Twelve 1-1/8" Philips-head stainless-steel screws
- 12 Stainless-steel flat-washers
- Owner's manual
- Template
Reviews (9)
Customer reviews for JL Audio M6-650X-S-GmTi-i
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JL Audio M6-650X-S-GmTi-i
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 0.8" Dome | |
| Tweeter Composition | Treated Silk | |
| Woofer Composition | Mica-Filled IMPP | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity |
89.5 dB at 1 watt | |
| Frequency Response | 55 - 25k Hz | |
| Max RMS Power Handling | 75 | |
| Peak Power Handling (Watts) | 150 | |
| Impedance (Ohms) | 4 | |
| Top-mount Depth (Inches) | 3 1/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 5 | |
| Bolt Circle | 6.13 | |
Product Research
Features
Marine Tested: JL Audio's marine speakers are tested in ultraviolet chambers to simulate years of sun exposure, and salt fog chambers to simulate years of exposure to salt-water environments.
LED Illumination: There are multi colored LEDs mounted behind the cone in the speaker frame, to create a glow on the cone. Depending on what combination of LED wires is connected, they can light red, green, blue, yellow, pink, aqua, or white. A 12 volt power supply is needed to turn the LEDs on. JL Audio recommends a 500 mA fuse on the LED power lead of each speaker. The LEDs can also be controlled using JL Audio's MLC-RC controller (item number 13699816, sold separately).
Woofers: The woofer cones are injection-molded, mica-filled polypropylene with UV inhibitors and synthetic rubber surrounds. The precisely engineered dust cap profiles help smooth the upper-end response. Each woofer uses a marine-grade synthetic fiber spider with a progressive roll design and a vented motor structure with a marine grade stainless steel rear diffuser plate.
DMA (Dynamic Motor Analysis): DMA is JL Audio's proprietary method of improving dynamic motor behavior. The DMA-optimized long-excursion design enhances output, bass extension and power handling of the speaker.
Tweeters: Each speaker features a bridge mounted 0.8" treated silk dome tweeter with a specially formulated treatment to withstand the marine environment. The tweeters use neodymium magnets for higher efficiency levels and is Ferrofluid-cooled and damped for improved response and power handling capabilities.

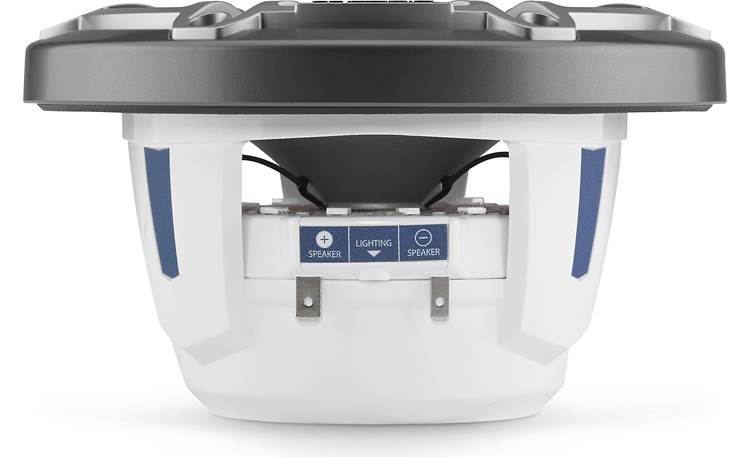

Crossover: The JL audio marine speakers utilize a true 2-way crossover network with 1st order low-pass and 2nd order high-pass circuits. The crossover network also features a polyswitch solid-state tweeter protection circuit. The crossover is built into the terminal assembly to protect it from vibration and corrosion.

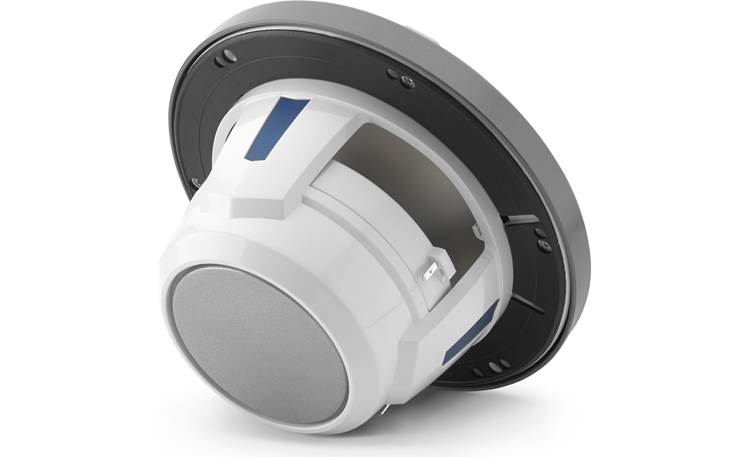

Polymer Basket And Grille: The baskets and grilles are UV-resistant polymer. The baskets encapsulate the woofers' motor systems to prevent corrosion.
Infinite-Baffle Operation: The speakers are optimized for infinite-baffle operation so they can be installed in a variety of locations, without the need for a dedicated enclosure.
Power Handling: JL Audio recommends two RMS power figures for this model; 75 watts RMS continuous power handling and 25-150 recommended amplifier power. We've listed the more conservative 75 watts RMS in the specs table.
