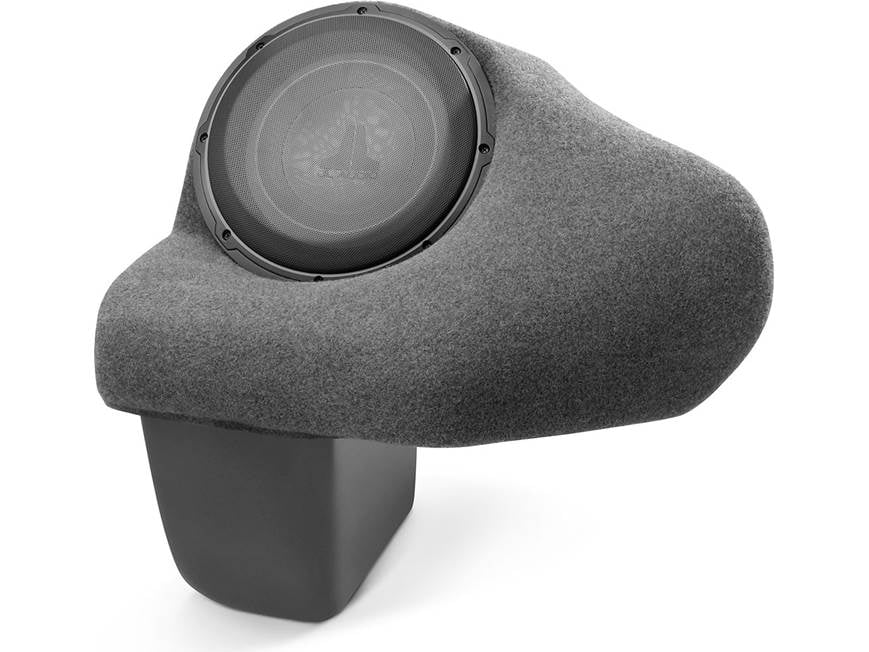

JL Audio Stealthbox® Custom-fit fiberglass enclosure with 10" W1v3-2 subwoofer
Fits 2005-up Chevrolet C6 Corvette

Features

Overview: JL Audio's Stealthbox subwoofer systems are designed to hide away in a specific vehicle. Please enter your vehicle information to confirm fit.

Construction: Stealthboxes are hand-crafted from fiberglass and/or Advanced Molded Composite (AMC) materials. Fiberglass delivers a level of enclosure rigidity and dimensional stability not possible with other enclosure materials, allowing wall thickness to be reduced compared to a typical wood enclosure. This gives you more interior box volume for a given external volume. Fiberglass and AMC materials are very strong and can be molded into very complex shapes; giving JL Audio the ability to design your Stealthbox to fit perfectly into tight spots and minimize intrusion into your vehicle's useful space. Each Stealthbox is laminated, ground, joined, and finished by hand in the USA. Proprietary techniques and materials developed by JL Audio through years of fiberglass manufacturing experience ensure consistent quality and performance.

Woofer: One 10" JL Audio 10W1v3-2, 2-ohm subwoofer is loaded in this enclosure.

• Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, the W1v3-2 motor remains linear over a long excursion range, and also maintains a stable, fixed magnetic field in the gap over a wide power range. The result is reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.
• Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
• Vented Reinforcement Collar: The Vented Reinforcement Collar (VRC) is a composite structure that addresses two issues related to reliability:
  • Stress Relief: By reinforcing the critical junction between the cone, voice coil and spider, the VRC reduces failures due to glue breakdown or material weakness. It does this by increasing adhesive contact area and providing stress relief to the spider material at excursion extremes.
  • Air Flow: The VRC also features slots that facilitate air flow directly onto the voice coil windings, thus reducing thermal compression effects and enhancing reliability.
• Insert Molded Suspension/Coil/Terminal Sub-Assembly: The W1v3-2 features a unique spider, coil and terminal subassembly, assembled prior to installation in the speaker frame for optimum alignment and glue-joint integrity. This type of assembly ensures precise lead wire length, lead wire entry and exit angles, and coil/spider alignment.
• Elevated Frame Cooling System: The elevated frame design of the W1v3-2 delivers cool air through slots directly above the top-plate to the voice coil. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
