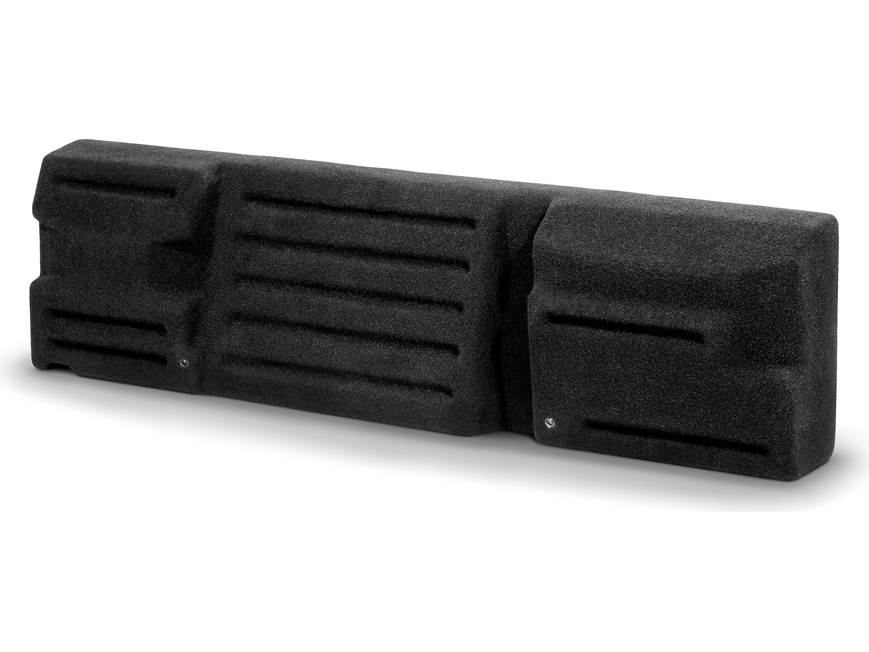

JL Audio Stealthbox® Custom-fit fiberglass enclosure with two 10TW3-D8 subwoofers — fits 2014-up Toyota Tundra CrewMax trucks

Item # 13694616

The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space...

Find what Fits your vehicle

Remove

Checking fit...

The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space...

Item # 13694616

Special order

C$2,649.95

About the JL Audio Stealthbox®

Bob Bihlmayer

Big bass, minimal space

The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space and blends in with your vehicle's interior. JL Audio designs Stealthboxes to fit in specific vehicles, then loads them with appropriate subwoofers for optimal performance. Pair the system with an appropriate amp and wiring for stellar concealed bass.

Big bass, minimal space

The JL Audio Stealthbox® custom-fit subwoofer delivers incredible bass in a package that takes up minimal space and blends in with your vehicle's interior. JL Audio designs Stealthboxes to fit in specific vehicles, then loads them with appropriate subwoofers for optimal performance. Pair the system with an appropriate amp and wiring for stellar concealed bass.

Perfect sound to go with the perfect fit

JL Audio puts months of research and design into each Stealthbox® custom-fit subwoofer to ensure not only that it fits, but that it sounds better than any other custom enclosed system. First, JL Audio determines the ideal shape and mounting location for each enclosure, so that it looks like an original part of the vehicle it's designed for. Next, they mount each high-performance subwoofer so it delivers amazing firepower from within its unique enclosure, without sacrificing clarity or musical depth.

The fiberglass enclosure offers superior rigidity while allowing more interior volume, so the sub can turn out louder, deeper bass. JL Audio craftsmen then laminate, grind, join, and finish each Stealthbox® by hand. The end result: full-bodied, distortion-free bass from an impressively stealthy enclosure.

Enjoy enhanced, custom-fit sound

This Stealthbox® enclosure installs behind the rear seat back of 2014-up Toyota Tundra CrewMax vehicles. It includes two 10TW3-D8 10" subwoofers from JL Audio, wired for 2-ohm mono impedance. Please check with us before purchasing by using the vehicle selector on our site, or calling a Sales Advisor at 1-888-955-6000 to verify fit information.

Installation Note: This Stealthbox installs behind the rear seatbacks — you don't have to make any permanent modifications to the vehicle. You will have to remove the actory subwoofer (if equipped) and relocate your jack tools tp install this Stealthbox.

READ LESS

Product highlights:

  • Stealthbox® custom-fit subwoofer
  • sealed fiberglass enclosure
  • two 10TW3-D8 10" subwoofers, wired to 2-ohm mono
  • installs behind the rear seat back
  • handles up to 800 watts RMS
  • warranty: 2 years
  • MFR # 94616

What's in the box:

  • Stealthbox (w/ 2 installed 10TW3-D8 subwoofers)
  • 2 Mounting brackets
  • Two 1-1/4" hex-bolts
  • 2 Flat-washers
  • 2 Lock-washers
  • Installation instructions
  • Warranty information

Customer reviews for JL Audio Stealthbox®

Loading reviews...

Average review:

4.5 out of 5 stars
36 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the JL Audio Stealthbox®

Pat M.

Product Research

Features

Overview: JL Audio's Stealthbox is a custom formed subwoofer enclosure designed specifically to mount behind the rear seats of 2014 - up Toyota Tundra CrewMax trucks.

Drivers: The JL Audio Stealthbox contains two 10" 10TW3-D8 subwoofer drivers pre-mounted inside the enclosure. Both subwoofers are wired for a 2Ω load to the single set of binding posts mounted on the end of the enclosure. The subwoofer system is rated for a maximum RMS power of 800 watts.

Enclosure & Mounting: The Stealthbox enclosure is made of fiberglass, offering superior rigidity with low resonance, and covered in protective black carpet. The enclosure has been custom designed to fit behind the rear seats of 2014 and up Toyota Tundra CrewMax trucks, so no valuable space is taken up with the speaker enclosure. No drilling or permanent modifications to the truck necessary, and all mounting hardware and instructions are included, simplifying the install.

Note: Installation of the Stealthbox requires removing the factory subwoofer (if equipped) and relocating the jack tools.

Loading accessories...

Customer Q&A

12 questions already asked

Q
Will this fit a 2018 Tundra Crewmax with the rear cab adjustable window? (Has window that moves up and down with motor) Hoping for a definitive answer as I have heard mixed so far, some sources say yes and some sources say no.
garrett  Mar 13, 2024
1 answer
A
Greetings Garrett. Thank you for your question. We honestly do not install these, or most anything for that matter. The best answer on this would be from the great staff at JL Audio. Their number is 954-624-0113.
hogan  Mar 13, 2024 (Staff)
Q
Will you be making a box that will fit the 2022 tundra crew max Iâ??ve been waiting since Dec of last year when I got my truck tk put sound I. It no one makes a box that fits without cutting the plastic out?
marc  Dec 20, 2022
1 answer
A
We do not make any custom boxes ourselves sadly, Marc. I can also give no information on what may or may not happen in the future. Right now, we have no options listed for your 2022 Tundra Crewmax. As this is a super popular truck, there could be options in the future. For Toyota truck specific solutions that may be able to work in your 2022 now I would check out the link below. Tacotunes is a Toyota specific third-party retailer that has some options listed up to 2021 Tundra's. These may fit in your 2022 so check them out and reach out to them for fitment info that we may not have on the 2022 model as it looks like we have not had our hands on one yet. We may have some JL Stealthbox options in the future, but there is no guarantee. I hope this helps Marc. https://tacotunes.com
bo  Dec 20, 2022 (Staff)
Q
Will this stealthbox fit in a 2022 Tundra?
alexander  Oct 21, 2022
1 answer
A
At this time we have not confirmed fit for this Stealthbox in the 2022 redesign of the Tundra. JL Audio does not recommend this for 2022-2023 Tundras. We would not recommend this for your truck.
zachary  Oct 21, 2022 (Staff)
Q
how thick is the box?
gilbert  Aug 13, 2022
1 answer
A
JL Audio Stealthboxes are made to fit specific vehicles. We do not have precise measurements of these products since they are custom designed to fit. For help with determining if your vehicle is compatible, please give our advisors a call at 1-800-324-9695.
zachary  Aug 16, 2022 (Staff)
Q
What amp would be good for this subwoofer box?
kirt  Sep 23, 2020
1 answer
A
I did a 5 channel Planet Audio amp MB2200-5D. It will power the 2 subs wired at 2 ohms just fine.
michael  Sep 23, 2020
Q
There is a discrepancy on information about what subs are actually used on this site. Even on JL's website it lists using 10TW3-D8 but the manual lists 10TW3-D4 subs. So which is it? Also, are the subs wired in parallel or stereo? I need to know the final impedance.
lance  Jan 04, 2018
3 answers
A
I'm not sure what speakers exactly but I know They are 2 ohm impedance. I got the hd750/1 channel sub. And it hits hard
brian  Jan 05, 2018
A
D8 and wired to 2 ohms.
travis  Jan 04, 2018
A
I can't answer the first question but i can tell you they are wired parallel, and you will not be disappointed with them! But one thing they don't tell you is you will need to find a new location for your Jack handle.. best of luck to you! I love my stealthbox, honestly worth every penny.
jerdear  Jan 04, 2018
Q
If my tundra does not have a factory subwoofer, other than the suggested amplifier, what other parts do I need to get for this? Also, is there any removing of seats or pealing of carpet to install wires/cables etc....required?
ed  Apr 01, 2017
1 answer
A
For additional details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on how everything fits and what you will need for an installation in your vehicle.
kenneth  Apr 01, 2017 (Staff)
Q
Is there enough air in this cabinet to drive a good subwoofer experience (2 x 10" subs)?
danonthestrat  Nov 26, 2016
1 answer
A
This JL Audio Stealthbox comes pre-loaded with two of their 10TW3-D4 subwoofers. They were selected by the JL for this enclosure based on their fit and available airspace so, yes, they will work very well when powered properly. I hope that helps! My Bio; http://www.crutchfield.com/Support/Bio.aspx?bio=5
ryan  Dec 01, 2016 (Staff)
Q
Is this a drop in unit ? Replaces factory sub ? Does it need a separate amp ?
drew  Nov 23, 2016
1 answer
A
If you have a factory sub in your vehicle, this one will replace it as this installs behind rear seat-backs and requires no permanent modifications to the vehicle. It does not come with an amp but we have many that will work with it including the JL Audio HD750/1 amp: http://www.crutchfield.com/p_136HD7501/item.html Feel free to contact an advisor on 1-800-324-9695 for other recommendations! My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101
jason  Nov 27, 2016 (Staff)
Q
What are the dimensions of this sub? Specifically, how tall is it? How much room is there on the rear wall of the cab above this enclosure?
jeffrey  Nov 08, 2016
1 answer
A
Exact dimensions and available space above the enclosure are not provided/published by the manufacturer. The enclosure is made specifically for the compatible trucks (2014-up Tundra CrewMax) and fits very well as a result. While I know this isn't the answer you were looking for, I hope the information helps. My bio: http://www.crutchfield.com/Support/Bio.aspx?bio=5
ryan  Nov 10, 2016 (Staff)
