JL Audio CLS110RG-W7AE

ProWedge™ enclosure with one 10" W7AE subwoofer

Item # 136S110R7A

JL Audio's ProWedge enclosure provides the ideal home for their W7 Anniversary Edition subwoofer, a hand-assembled...

JL Audio's ProWedge enclosure provides the ideal home for their W7 Anniversary Edition subwoofer, a hand-assembled...

Item # 136S110R7A

In stock

Articles, videos & DIY info

Decades of expertise at your fingertips.

60-day returns

If you don't love it, send it back.

60-day price protection

We’ll reimburse you if the price drops.

About the JL Audio CLS110RG-W7AE

John Pollard
JL Audio's ProWedge enclosure provides the ideal home for their W7 Anniversary Edition subwoofer, a hand-assembled sealed housing that allows the sub to produce bass notes with impressive depth, detail and clarity. This versatile sub will enhance the impact of any type of music, from the subtle thrum of the stand-up bass in a jazz ensemble, to the satisfying gut punch of a rock band's kick drum.

JL Audio's ProWedge enclosure provides the ideal home for their W7 Anniversary Edition subwoofer, a hand-assembled sealed housing that allows the sub to produce bass notes with impressive depth, detail and clarity. This versatile sub will enhance the impact of any type of music, from the subtle thrum of the stand-up bass in a jazz ensemble, to the satisfying gut punch of a rock band's kick drum.

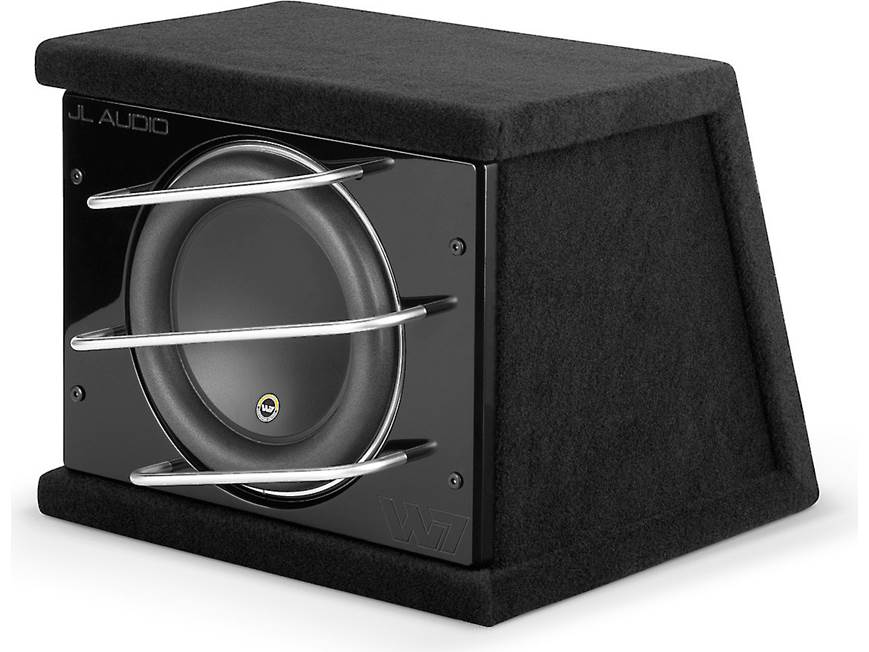

The CLS110RG-W7AE ProWedge features a unbelievably rigid sealed enclosure, made from solid 1" thick medium-density fiberboard and optimized for the W7AE subwoofer. The glossy black laminate baffle with its embossed logos adds a touch of class, while the durable black carpet covering keeps nicks and scratches at bay. Three stylish brushed aluminum rods protect the woofer so it can deliver long-lasting bass in your vehicle. Gold-plated, five-way binding posts allow for convenient and secure hookup.

The enclosure contains one 10" W7AE subwoofer, creating premium bass with the help of six patented features and a computer-optimized motor assembly design. Match this amazing enclosure with the proper amplifier and wiring to enjoy inspiring bass — call 1-888-955-6000 if you have questions on how to power the W7 ProWedge.


Product highlights:

  • sealed enclosure with one 10" W7AE subwoofer
  • 1" medium density fiberboard construction covered with black carpet
  • brushed aluminum grille rods
  • 3-ohm total impedance
  • power handling: 300-750 watts RMS (1,500 watts peak power)
  • frequency response: 20-250 Hz
  • sensitivity: 84 dB
  • 17-5/8"W x 14-5/8"H x 16-3/4"D1 x 11-1/2"D2
  • warranty: 2 years
  • MFR # 93270

What's in the box:

  • Sealed hatchback-style enclosure with a 10" (10W7AE-3) subwoofer installed

Customer reviews for JL Audio CLS110RG-W7AE

Loading reviews...

Average review:

5.0 out of 5 stars
14 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the JL Audio CLS110RG-W7AE

Pat M.

Features & specs

Woofer Size (inches) 10
Speakers Per Box ---
Woofer Material Polypropylene
Enclosure Type Sealed
Color Black
Pieces in System 1
Width (inches) 17-5/8
Height (inches) 14-5/8
Depth (inches) 16-3/4
Connector Type 5-way post
Frequency Response 20-250 Hz
Power Range (Watts RMS) 750
Maximum Wattage 1500
Sensitivity 84 dB
Impedance 3 ohms
Parts Warranty 2 Years
Labor Warranty 2 Tears
The JL Audio CLS110RG-W7AE replaces these items:

Product Research

Enclosure Features
Driver Features

Enclosure Features

Enclosure: The ProWedge sealed enclosure is optimized for the 10" W7AE-3 subwoofer and built from 1" MDF. It's finished in high-grade black carpet with a gloss-black laminate front baffle trim featuring engraved "JL Audio" and "W7" logos. Three solid, brushed aluminum rods provide stylish woofer protection.

Terminal: The enclosure features a pair of gold plated 5-way binding posts on the left side. They will accept pin connectors, spade connectors, single banana plugs, dual banana plugs, and bare up to 10 gauge.

Enclosure Dimensions:

  • Width: 17.625"
  • Height: 14.625"
  • Depth (including grille): 18.625"
  • Depth (top of enclosure): 11.5"
  • Depth (bottom of enclosure): 16.75"

Driver Features

W-Cone: The JL Audio 10W7AE-3 subwoofer utilizes a W-Cone design, a unit-body cone assembly, that delivers astonishing cone stiffness with minimal mass. The shape also provides incredible torsional rigidity, which is critical to maintaining voice coil alignment at the suspension limits. In order to gain maximum stiffness, two lightweight mineral-filled polypropylene skins are bonded together at the perimeter and the center of the assembly. The lower skin's cross-section is shaped like a "W", and provides incredible rigidity when bonded to the dished upper skin.

OverRoll Surround: OverRoll Surround technology allows JL Audio to make full use of the entire footprint of the speaker, placing the surround further to the outside than in a conventional woofer. This means the 10W7AE-3 subwoofer can use a large roll for all its benefits without sacrificing cone area. By maximizing the effective piston/total footprint ratio, the subwoofer can deliver more output for a given excursion and outside frame diameter. This means that the prodigious excursion advantage of the 10W7AE-3 can be put to full use enhancing output, rather than making up for lost piston area. This technology also provides a geometry advantage on the outside edge of the surround roll, allowing for more linear operation. A further benefit is that the mounting holes are inherently sealed by the surround, resulting in an improved box seal.

Ultra-Long Voice Coil: The 10W7AE-3 subwoofer features an ultra-long voice coil to allow extreme linear excursion, phenomenal power handling and control. The massive surface area of these coils is excellent for heat dissipation, while the huge winding height provides the necessary motivational force to achieve the huge excursion of the design. Considering their size, the 10W7AE-3 voice coils are extremely light in weight. The voice coil uses aluminum-alloy wire (instead of conventional copper) and a specific winding method to achieve JL Audio's desired electrical properties. The light weight of the coils helps keep the overall moving mass down at manageable levels, which is extremely important for efficiency and sound quality reasons.

Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method of improving dynamic motor behavior. As a result of DMA optimization, the 10W7AE-3 motor force remains linear over a very long range of excursion. It also maintains a stable fixed magnetic field in the gap over a wide power range. The result is vastly reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.

Forced Air Cooled: The elevated frame design of the 10W7AE-3 delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Radial Cross-Drilled Pole Piece: This innovative venting system enhances thermal dissipation and power handling by directing air flow onto the voice coil former and works in conjunction with the Elevated Frame cooling technology to effectively remove heat from the voice coil. This improves power handling and reduces power compression effects, leading to more linear performance.

Progressive-Roll Spider: The large, progressive-roll spider provides precise control and motor/voice coil alignment without limiting excursion prematurely.

Plateau-Reinforced Spider Attachment: The lower reinforcement collar, attached to the voice coil former of the W7, incorporates a plateau design dedicated to relieving material stress and providing a solid attachment surface for the inner edge of the spider.  The plateau of the reinforcement collar provides excellent contact area for adhesive therefore creating an incredibly strong bond at a critical point within the driver.

Co-Extruded Double Lead Wires: The extruded casing and carefully engineered attachments ensure controlled lead-wire behavior under the most extreme excursion demands. Two conductors are used per connection for ample current carrying capability.

Loading accessories...

Customer Q&A

5 questions already asked

How much does it weigh. Also. Using this 3ohms subwoofer with a 4ohms / 2ohms stable amplifier like the audiocontrol 1.800 could damage or reduce the life of the amplifier in any way? Maybe long-term damage or something for being working out of the intended resistant?
reyniel  Dec 20, 2022
1 answer
That is a great question, Reyniel. We do not have a weight listed specifically for the JL Audio CLS110RG-W7AE sadly. We do know that this is a heavy item as it does only ship freight. The impedance should be a non-issue, you are right in the sweet spot with the Audiocontrol and it should not affect the longterm performance of the Audiocontrol amp.
bo  Dec 20, 2022 (Staff)
Hello. I would like to know which Audio Control amplifier would be best suited to get maximum performance from this 10w7. Lc-1.800 or Lc-1.1500? I will be using it with a D-6.1200. Thank you.
martin  Oct 14, 2019
2 answers
The LC-1.800 would be a good match. There are definitely others, but if you're comparing the two Audio Control amps, go for the 800 watt. I have the LC-1.1500 for the W-7, 12" and it's a bit overkill. You'll probably want to get the wired remote level control to adjust the bass on your amp as well. It's nice to have on an amp connected to a sub with a lot of bass. :)
tyler  May 06, 2021
Thanks for your question. For information on selecting the best amp I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
kristina  Oct 22, 2019 (Staff)
Can the subwoofer be taken out of that box or is it permanently in there?
benw32  May 24, 2019
2 answers
It can be taken out.
patrick  May 24, 2019
It would be an effort to remove it, but if you are going that route buy it without the enclosure
jason  May 24, 2019
