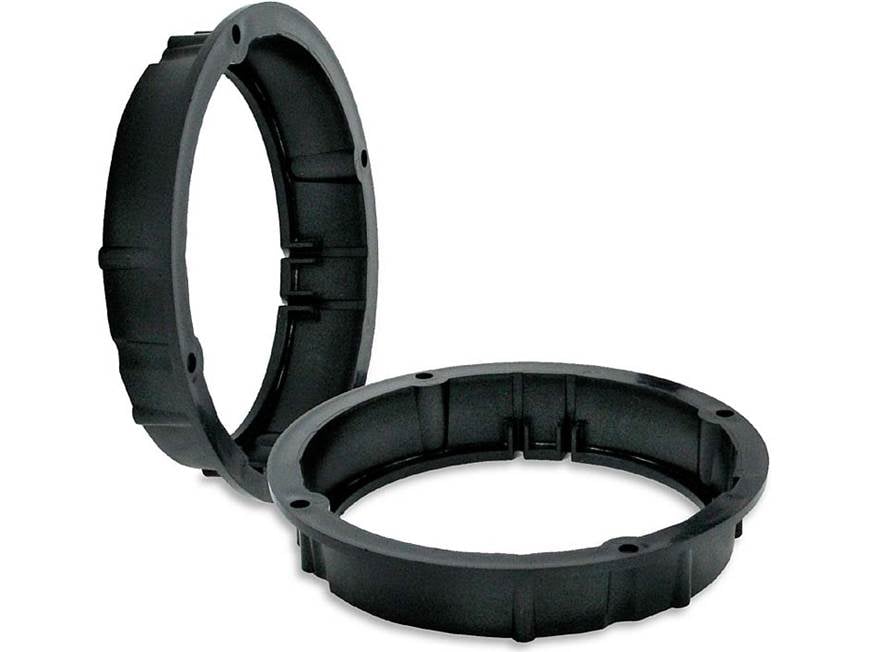

About the Scosche SAVW-6 Speaker Mounting Brackets
Scosche's SAVW-6 brackets will allow you to install select 5-1/4" or 6-1/2" speakers in the factory speaker openings of select 1998-up Volkswagen and Land Rover vehicles. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to confirm that these adapters are compatible with your vehicle. Warranty: 60 days.
Important Note: Some 6-1/2" speakers use a larger frame and require a larger cutout. We call these 6-3/4" speakers, and they won't fit in this bracket. This bracket will only work with speakers that require a cutout diameter of 5-1/8" or less.
More details on the Scosche SAVW-6 Speaker Mounting Brackets
Overview: As of 2/20/14, the SAVW6 is compatible with select 2005-2009 Land Rover LR3s and select 1998 and later VWs. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 5-1/4 and 6-1/2 speakers. (Please refer to the Crutchfield Vehicle Selector to confirm fit in your vehicle.)
6-1/2 Speakers: The available bolt pattern for speakers to mount to this bracket is smaller than most 6-1/2s. For a 6-1/2 to fit, the diagonal measurement should be no greater than 5.641" (symmetrical 4-hole pattern) or the perimeter should be no greater than 4.902" (standard symmetrical 3-hole pattern).
5-1/4 Speakers: While a 5-1/4 speaker will mount easily in this bracket given the bolt pattern, the frame of many 5-1/4s is smaller than the opening in the bracket. When using a 5-1/4 with a smaller frame diameter, a speaker baffle must also be used to seal the rear of the speaker.
- Outer Diameter of Bracket: 6.568" (widest part of the bracket, at the base)
- Inner Diameter: 5.101" (speaker opening)
- Outer Diameter of Speaker Mounting Surface: 5.682"
- Height: 1.192"
