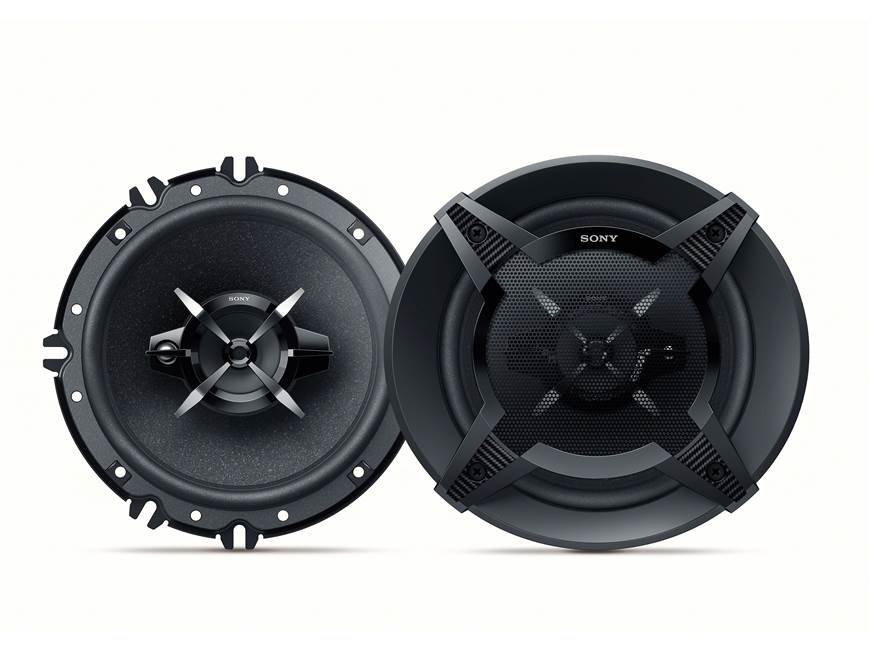

About the Sony XS-FB1630
Sony's XS-FB1630 6-1/2" speakers feature a 3-way design that extends the frequency range of your system from 50 to 24,000 Hz, giving your music satisfying fullness and texture. Built with woofer cones made from sensitive yet sturdy material, these efficient speakers prove to be great power-handlers, specially equipped for enhancing bass response. A 1-7/16" PEI balanced dome tweeter and a 1/4" dome supertweeter take on the high frequencies with gusto, adding in true-to-life instrumental and vocal details.
You can count on these speakers to deliver great sound on every drive, whether you power them with your car stereo or an outboard amp. Grilles are included.
- 6-1/2" 3-way car speakers (pair)
- Foamed-Mica Reinforced Cellular fiber woofer
- 1-7/16" PEI balanced dome tweeter and 1/4" dome supertweeter
- handles up to 45 watts RMS (270 watts peak power)
- frequency response: 60-24,000 Hz
- sensitivity: 91 dB
- top-mount depth: 1-3/4"
- grilles included
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # XSFB1630
What's in the box:
- Two 3-way speakers
- 2 Grilles
- Eight 1-1/8" Self-tapping screws
- Two 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Instructions (English/ French/ Spanish/ German/ Italian)
- Warranty information
- Template on box
More details on the Sony XS-FB1630
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||1-7/16" Balanced Dome|
|Woofer Surround||Rubber Coated Cloth|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||91|
|Sensitivity at 2.83 volts||N/A|
|Frequency Response||50 - 24k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||45|
|Peak Power Handling (Watts)||270|
|Top-mount Depth (Inches)||1 3/4|
|Bottom-mount Depth (Inches)||N/A|
|Cutout Diameter or Length (inches)||5 1/16|
|Mounting Height (Inches)||0.737|
Woofer Cones: The XS-FB series woofers use MRC cones (Mica Reinforced Cellular glass fiber composite) to reduce weight and increase rigidity, delivering full bass response.
Treated Cloth Surrounds: Each woofer uses a treated cloth surround for added reliability and efficiency.
Tweeters: Each speaker features a 1-7/16" PEI (Poly-Ether-Imide) balanced-dome tweeter. PEI is a polymer film that produces a wide soundstage for superior imaging. A semi-dome tweeter has a dome placed inside a cone. Balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter. A 1/4" PEI dome super tweeter further reinforces the high frequency output.
Specification Note: Sony's rated power spec for the XS-FB1630 is 40 watts (derived using IEC 60268-5 standards). In the manual they also list the CEA 2031 compliant RMS power as 45 watts. We've adopted the 45 watt RMS rating because CEA 2031 is the more common rating system.
Mounting: The speaker basket has multiple mounting holes and is designed to fit standard 3-hole 6-1/2" applications, 4-hole 6-1/2" applications, and standard 4-hole 6-3/4" applications. (When mounting in a 6-3/4" application, use a speaker baffle to seal the inner ring of screw holes.)
