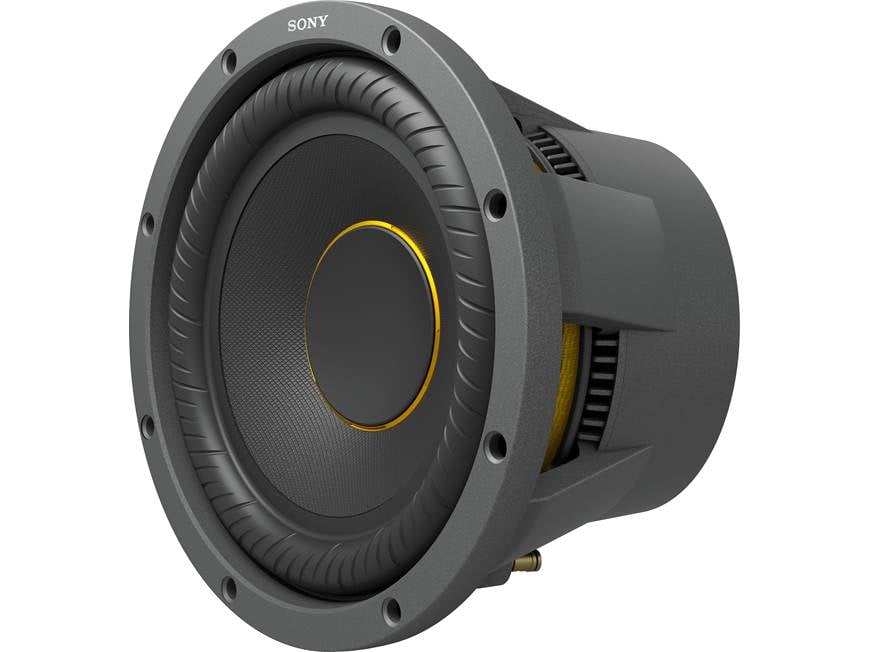

About the Sony XS-W104ES
New ideas
New ideas
When you're looking for a new subwoofer, you want deep, rich bass. Sony's Mobile ES Series XS-W104ES 10" sub is engineered from top to bottom with proprietary Sony technology to deliver low frequencies at high volume levels with minimal distortion, so you'll get the best bass possible.
Into the cone zone
The XS-W104ES features a Mica Reinforced Cellular (MRC) cone, created for high rigidity, light weight and good internal loss. This material combines a layer of mica flakes and paper pulp with a honeycomb-shaped aramid fibre core, for a speaker cone that's 10 times stronger than polypropylene. You'll hear cleaner, more realistic bass with smoother, more natural sound characteristics, along with powerful bass that stays tight at the highest volume levels. In short, this sub is all about accuracy.
Intelligent design
The woofer surround features another proprietary Sony technology that uses distinctive curved notches to ensure that the cone stays on track. The acoustically-optimized double-layered spider maximizes power handling, with a profile designed for more rapid and precise cushioning of the speaker cone. The sub's "Five-beam Frame" design virtually eliminates resonance, while its integrated Dynamic Air Diffuser ensures efficient air circulation to keep things cool when the music gets hot.
If you're looking for superior low-frequency punch, this unique Mobile ES sub uses proprietary materials and creative design to bring high-performance bass to your ride and give you the gift of great sound.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- 10" 4-ohm component subwoofer
- mica flake/aramid fiber/pulp cone with honeycomb core
- separated-notch rubber surround
- gold-plated spring terminals allow up to 10-gauge wiring
- power handling: 450 watts RMS (1800 watts peak)
- frequency range: 28-500 Hz
- sensitivity: 86 dB
- mounting depth: 5.382"
- mounting height: 0.5"
- sealed box volume: 1.01 cubic feet
- ported box volume: 1.44 cubic feet
- warranty: 3 years
- MFR # XSW104ES
What's in the box:
- One 10" Single voice coil woofer
- Plastic trim ring
- Adhesive backed foam gasket
- Eight 1-3/8" Screws
- Installation instructions (English/ French/ Spanish/ German/ Italian/ 20 other languages)
- Warranty information
Featured video:
Customer reviews for Sony XS-W104ES
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Sony XS-W104ES
Features & specs
Features and Specs | ||
---|---|---|
Size | 10 -inch | |
Impedance (Ohms) | 4 | |
Cone Material | MRC Aramid Fiber | |
Surround Material | Rubber | |
Port diameter (inches) | 4 | |
Port length (inches) | 13.875 | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
86 dB at 1 watt | |
Frequency Response | 28 - 500 Hz | |
Max RMS Power Handling | 450 | |
Peak Power Handling (Watts) | 1800 | |
Top Mount Depth (inches) | 5 7/16 | |
Bottom Mount Depth (inches) | 5 5/8 | |
Cutout Diameter or Length (inches) | 9 1/16 | |
Frame Width | 10.7 | |
Frame Length | 10.7 | |
Vas (liters) | 23.26 | |
Fs (Hz) | 39.6 | |
Qts | 0.488 | |
Xmax (millimeters) | 6.5 | |
Parts Warranty | 3 Years | |
Labor Warranty | 3 Years | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 1.01 | |
Minimum Sealed Box Volume (cubic feet) | 0.76 | |
Maximum Sealed Box Volume (cubic feet) | 1.21 | |
Ideal Ported Box Volume (cubic feet) | 1.44 | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A |
Product Research
Features
Specifications: Sony's rated power spec for the XS-W104ES is 350 watts (derived using IEC 60268-5 standards). In the manual they also list the CTA 2031 compliant RMS power as 450 watts. We've adopted the 450 watt RMS rating because CTA 2031 is the more common rating system.
Spring Posts: The spring post wire terminals will accept pin connectors, single banana plugs, and bare wire up to 10 gauge. The binding posts are spaced too far apart to accept standard dual banana plugs (3/4").
Enclosure Compatibility: The XS-W104ES is compatible with either a sealed or ported enclosure.
- Sealed Box Volume: The ideal sealed box volume is 1.01 ft³.
- Ported Box Volume: The ideal ported box volume is 1.44 ft³ with a 4" diameter and 13⅞" long port.
Trim Ring: When using the included cosmetic trim ring the dimensions change slightly:
- Top Mount:
- Flange Height: 0.72"
- Mounting Height: 0.72"
- Bottom Mount:
- Depth: 6.102"
- Protrusion: 0" (zero)
The Sony XS-W104ES replaces these items
Sony XS-GSW101
- mica reinforced cellular glass fibre cone with honeycomb internal matrix
- handles up to 450 watts RMS (1800 watts peak power)
- warranty: 3 years
