Features

IR System Overview: An infrared (IR) extender system enables you to control your IR remote controlled A/V equipment from a remote location. This enables you to place your A/V components out of sight (behind cabinet doors, in the rear of a room, or in a different room) and still conveniently control your equipment.

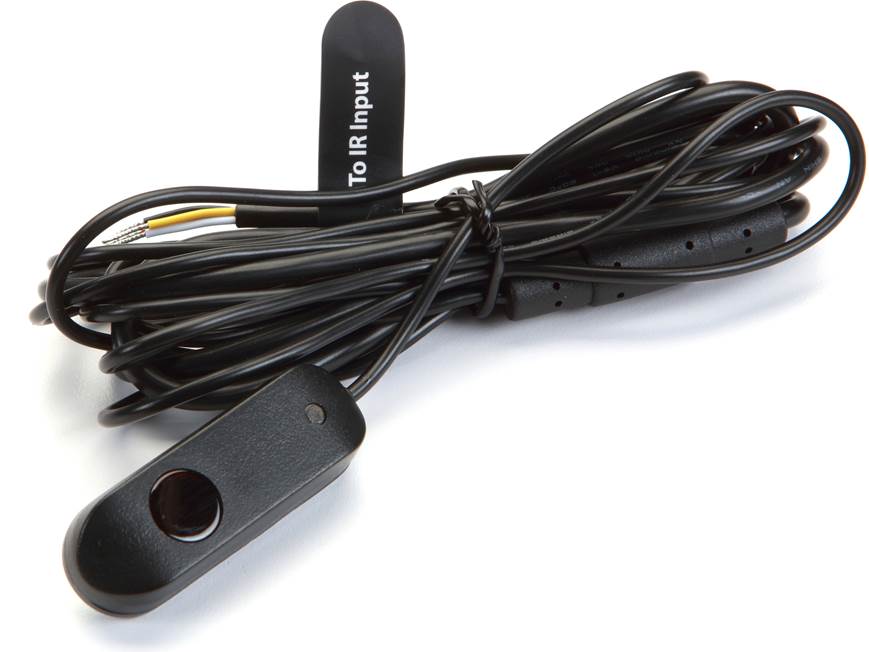

IR System Components: The MS220 miniature surface-mount IR sensor is one of three elements that make up an infrared extender system:

• IR Main System Unit (sold separately): The IR Main System Unit provides a connection hub for the IR sensors and the IR flashers and is generally located near the A/V components. The Main System Unit's level controls and LED indicators enable you to calibrate and troubleshoot an IR extender system. The Main System Unit is the "heart" of an IR extender system.
• IR Sensors/Keypad:
  • IR Sensors: IR Sensors are the "eyes" of the system, receiving IR commands from hand-held remote controls and relaying the commands to the Main System Unit via a 4-conductor shielded cable. Generally, sensors are placed so that you can easily and naturally point your remote control directly at them. Sensors are available in wall-mount, ceiling-mount, surface-mount and table-top models.
  • Keypad (sold separately): The IntelliPad is a wall-mounted, programmable IR keypad system that provides a unique LED power status display and the convenience of true one-button remote control of complex audio/video systems.
• IR Flashers (sold separately): IR Flashers re-transmit the infrared signals from the IR Main System Unit to your A/V components. Flashers are the "voice" of an IR extender system that "speaks" to your components.

Universal Compatibility: When used in a complete system, this IR sensor is compatible with virtually all brands of A/V equipment and remote controls using carrier frequencies of between 25kHz and 90kHz. The MS220 is also compatible with the recently introduced Philips RCMM codes.

Universal Noise Suppression: The sensor has a patent-pending Universal Noise Suppression design that effectively eliminates IR interference from plasma and LCD TVs, CFL (fluorescent) lighting, and direct sunlight. This two-stage technology combines an optical noise filter with a "smart" electronic circuit to provide consistent, reliable control.

IR Receiving Range: You get 20' to 35' of remote control range, depending upon the strength of your handheld remote. The IR pickup angle is 30° off-axis (horizontal and vertical) at 25 feet.

Bi-colored LED: The LED glows green when the system is on and flashes blue to confirm reception of IR commands.

Mounting: The MS220 is designed to surface-mount almost anywhere with its self-adhesive backing. Convenient mounting locations for the MS220 include: on the front panel of a television set, on the front surface of a wall, a cabinet, an appliance, or a speaker grille.

Wiring: The MS220 connects to the Niles infrared main systems unit (or IRH610 sensor expansion hub) with an individual "home run" of Category 5 ("Cat 5") cable. When running wires inside walls, most states and municipalities usually require the wire to have a specific "CL" fire rating. Please consult your local building inspection department for requirements in your area.
