About the Kicker 46CSS674
The streamlined speaker system
The streamlined speaker system
Kicker consistently prioritizes vehicle fit along with quality in their CS Series car speakers, making them among the most popular we sell. And better fit doesn't come at the cost of better sound — you'll find several cool innovations at work here. Kicker's separate titanium tweeter, driven by a neodymium magnet, delivers your music's highs with control and clarity. The woofer's phase plug helps eliminate distortion, and its UV-treated poly-foam surround equips this Kicker speaker for enduring performance no matter what extremes life in your car door brings.
Consistently solid sound
Kicker's 46CSS674 6-3/4" component speaker system serves up stellar sound using a polypropylene woofer for the lower frequencies and a titanium dome tweeter for the highs. Kicker includes a pair of external crossovers with three-level tweeter attenuation for fine-tuning your overall sound. Use an aftermarket car stereo or an outboard amp to enjoy classic Kicker quality with more detail and punch.
Product highlights:

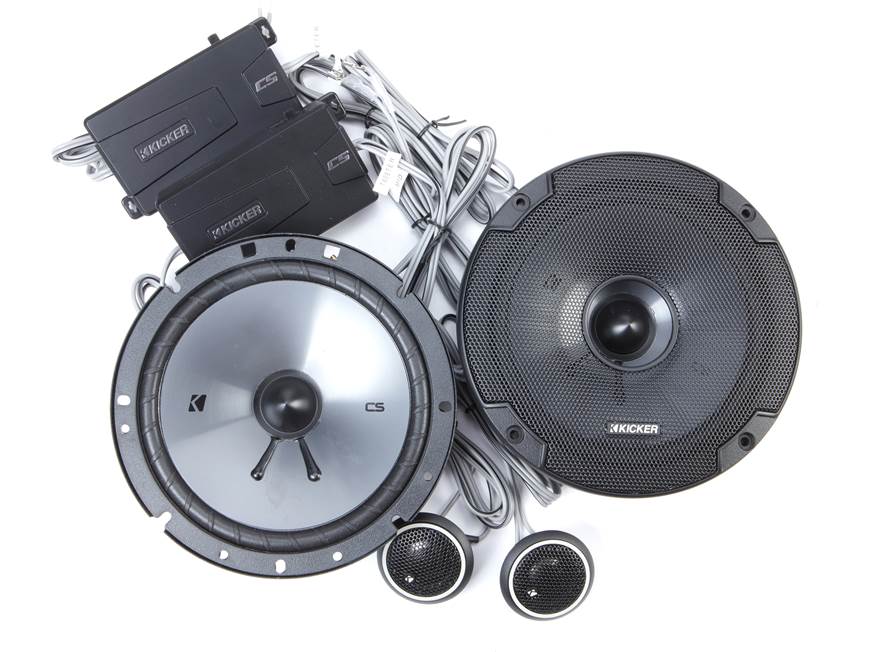

- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6-3/4" polypropylene woofer with polyester foam surround
- 3/4" titanium dome tweeter
- external crossover network with 3 tweeter levels (0, +3, +6 dB)
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 35-21,000 Hz
- sensitivity: 90 dB
- woofer top-mount depth: 1-7/8"
- grilles included
- warranty: 2 years
- MFR # 46CSS674
What's in the box:
Kicker 46CSS674 owner's manual
- Two woofers
- 2 Woofer grilles
- Two tweeters (each with 36" Wire attached)
- 2 Crossovers (each with 35" Input wire/ 35" Tweeter output wire/ 35" Woofer output wire attached)
- 2 Flush mount tweeter rings
- 2 Short tweeter mounting nuts
- 2 Long tweeter mounting nuts
- 2 Back angled tweeter rings
- 2 Front angled tweeter rings
- 2 Angled surface mount tweeter housings
- Twelve 1" Screws
- Four 5/8" Screws
- Four 7" Zip-ties
- 4 Red plastic wire caps
- Owner's manual (English/ Spanish/ German/ French)
Reviews (82)
Customer reviews for Kicker 46CSS674
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker 46CSS674
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 3/4 | |
| Design | 2-way | |
| Tweeter Design | 3/4" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Titanium | |
| Woofer Composition | Polypropylene | |
| Woofer Surround | Polyester foam | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 90 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 35 - 21k Hz | |
| Minimum RMS Wattage | 10 | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 1 7/8 | |
| Bottom-mount Depth (Inches) | 2 1/16 | |
| Cutout Diameter or Length (inches) | 5 9/16 | |
| Mounting Height (Inches) | 0.251 | |
Product Research
Features
Polypropylene Woofer Cones: The Kicker CS-series speakers feature durable polypropylene woofer cones, resistant to the moisture and temperature extremes found in automotive applications.
Ribbed Polyester Foam Surrounds: The ribbed polyester foam surrounds allow extended cone excursion for additional bass output and higher SPL.
Tweeter Mounting Options: The tweeters come with brackets to allow multiple mounting configurations: flush-mounted, angled flush-mounted (approximately 10°), and angled surface-mounted (approximately 45°).
Tweeter Dimensions:
| Flush Mount | Angled Flush Mount | Angled Surface Mount | |
| Mounting Height | 0.275" | 0.662" | 1.928" |
| Depth | 0.548" | 0.705" | 0.491" (screw depth) |
| Frame Diameter | 1.968" | 1.968" | N/A |
| Cutout Diameter | 1.570" | 1.685" | N/A |
| Frame Width | N/A | N/A | 1.887" |
| Frame Length | N/A | N/A | 2.110" |
Crossovers: The component system includes passive 2-way crossover networks for a seamless transition between the woofers and tweeters. The slope is 12dB per octave (both high pass and low pass) and the crossover point is 4000 Hz. A switch on each crossover allows you to set the tweeter output; 0 dB, +3 dB, or +6 dB. Each crossover's input and output wires are attached; the 35" woofer output has quick slide terminals that connect directly to the woofer and the 35" tweeter output has bullet terminals that mate to the terminals on the tweeter wires.
Crossover Dimensions:
- Length: 4.02" (4.67" including mounting flange)
- Width: 2.29" (4.47" including tweeter output level switch)
- Height: 1.01"
The Kicker 46CSS674 replaces these items
- 6-3/4" polypropylene woofers with polyester foam surrounds
- 3/4" titanium dome tweeters
- external crossover network with 3 tweeter levels (0, +3, +6 dB)
Loading accessories...
Customer Q&A
9 questions already asked
Loading articles...
I purchased kicker 2-ways for my front door and separate tweeters and didn't get the sound I wanted so I went with these and what a difference it makes! My car had an internal crossover that had to be replaced with the one it comes with but it was a very easy installation!
Jasper from SALIDA, CA
