About the Kicker 46L7T104
Bigger bass for your smaller space
Bigger bass for your smaller space
Excellent. Superb. Great sounding. Unbelievable. These are a few of the words our customers have used to describe the performance of Kicker's Solo-Baric® subwoofers. With more cone area than a conventional sub, these subs give you bass you can really feel. Now Kicker has combined this innovative concept with the shallow-mount design of their CompRT Series subs to create the L7T Series subs — the ultimate low-profile solution for big bass.
Made to be played

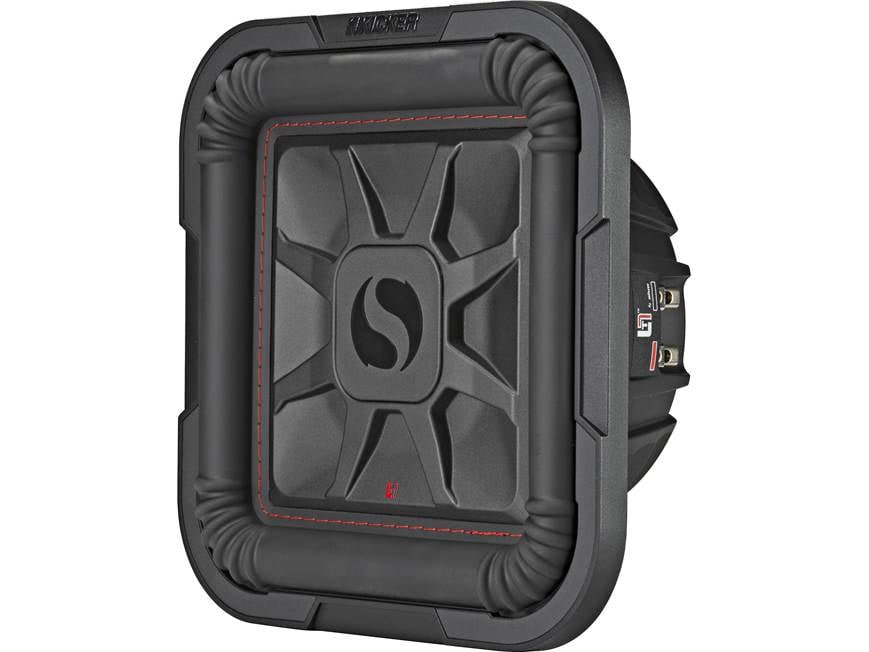

The 46L7T104 10" sub features the signature SoloKon™ square polypropylene cone, creating a rigid surface that won't flex and cause distortion at high sound levels. The Santoprene rubber surround stands up to the car environment and keeps the cone on track for maximum clarity and minimal distortion, while the sturdy steel frame resists vibration and provides a solid foundation. This sub handles up to 500 watts RMS, so be sure your amp can give it all the power it needs. The dual 4-ohm voice coils make it easy to get more power from your mono amplifier.
Kit that will fit
You'll have more installation options than ever for this super sub. Whether you prefer a sealed or a ported enclosure, the 46L7T104 is designed to excel so you can pick the enclosure that'll give you the response you prefer. And with only 3-3/4" of mounting depth required, this pizza-sized deep-dish of boom settles neatly into your vehicle's tight corners. If you thought it was impossible to fit this kind of massive bass into your vehicle, think again.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- Featured in our article: Best 10" car subwoofers for 2024
- 10" shallow-mount subwoofer with dual 4-ohm voice coils
- square SoloKon™ polypropylene cone with Santoprene rubber surround
- steel basket
- power handling: 500 watts RMS (250 watts per voice coil)
- peak power: 1000 watts
- frequency response: 25-100 Hz
- sensitivity: 85.98 dB
- sealed box volume: 0.4-1.0 cu. ft.
- ported box volume: 1.25-1.75 cu. ft.
- grille not included
- top-mount depth: 3-3/4"
- warranty: 1 year
- MFR # 46L7T104
What's in the box:
Kicker 46L7T104 owner's manual
- One square 10" dual 4-ohm voice coil subwoofer
- 4 Adhesive backed hardware covers
- Owner's manual (English/ Spanish/ German/ French)
- Hardware cover installation instructions
- 2 Kicker decals
- Template on box lid
Featured video:
Customer reviews for Kicker 46L7T104
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker 46L7T104
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | Square 10 -inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | Polypropylene | |
| Surround Material | Santoprene Rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
85.98 dB at 1 watt | |
| Frequency Response | 25 - 100 Hz | |
| Max RMS Power Handling | 500 | |
| Peak Power Handling (Watts) | 1000 | |
| Top Mount Depth (inches) | 3 3/4 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 3/8 | |
| Frame Width | 10.71 | |
| Frame Length | 10.71 | |
| Vas (liters) | 44.59 | |
| Fs (Hz) | 30.75 | |
| Qts | 0.531 | |
| Xmax (millimeters) | 9.2 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | 0.4 | |
| Maximum Sealed Box Volume (cubic feet) | 1 | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Minimum Ported Box Volume (cubic feet) | 1.1 | |
| Maximum Ported Box Volume (cubic feet) | 1.75 | |
Product Research
Features
Square Design: By making the cone square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the cone moves more air, resulting in louder, deeper bass.
Dual Voice Coils: For increased system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.
Cone Material: The square SoloKon design is a unique one-piece construction, using injection molded polypropylene that moves as a lightweight piston, for improved control. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.
Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge to improve durability.
Terminals: The spring post terminals will accept pin connectors, single banana plugs (but not dual), and bare wire up to 8 gauge.
Break-in Period: Due to the complex nature of Kicker subwoofers, they require a break-in period in order to produce optimum bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.
Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 25 and 30 Hz).
- Minimum Volume: 0.4 ft³
- Maximum Volume: 1.0 ft³
Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.
- Minimum Volume: 1.25 ft³ with a 2" x 10½" x 20" slot port
- Maximum Volume: 1.75 ft³ with a 2½" x 10½" x 20" slot port
Cutout: The woofer will not mount in a standard enclosure with a round cutout. Instead, the woofer must be mounted in an enclosure with a 9.325" x 9.325" square opening.
