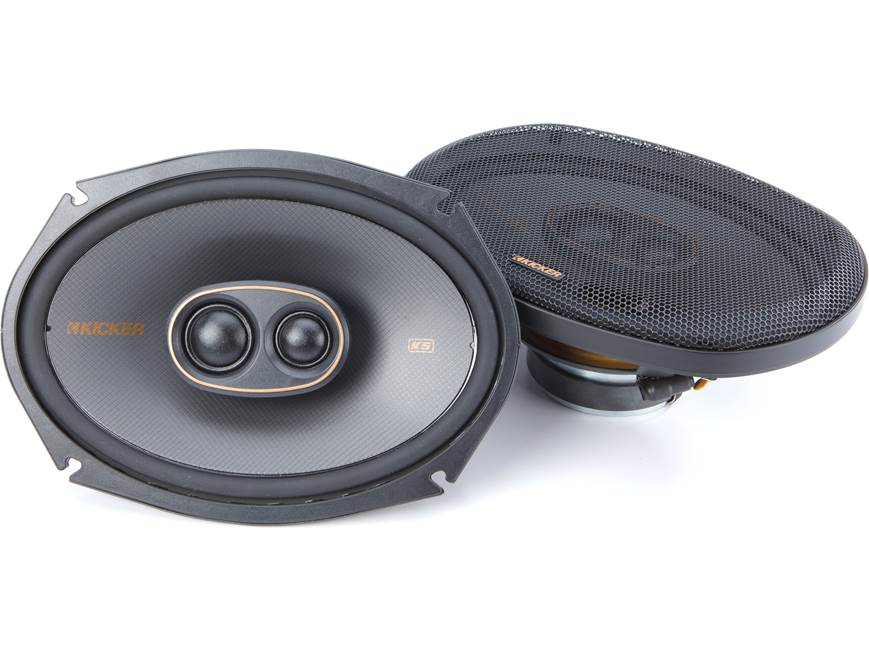

Kicker 47KSC69304 KS Series 6"x9" 3-way car speakers

Item # 20647KSC93

Kicker designed their KS Series to be a substantial step up from your factory speakers.

Find what Fits your vehicle

Remove

Checking fit...

Kicker designed their KS Series to be a substantial step up from your factory speakers.

Item # 20647KSC93

Shop all Kicker 6"x9" Speakers

About the Kicker 47KSC69304

Alexander H.

Smooth detail

Kicker designed their KS Series to be a substantial step up from your factory speakers. The KSC69304 6"x9" speakers feature a polypropylene woofer that provides a natural sound with a satisfying low end. And the 1" midrange driver and 3/4" silk dome tweeter prioritize smoothness in your music's vocal and instrumental details. Kick out your stale, old sound and rediscover how your favourite songs were meant to be heard.

Smooth detail

Kicker designed their KS Series to be a substantial step up from your factory speakers. The KSC69304 6"x9" speakers feature a polypropylene woofer that provides a natural sound with a satisfying low end. And the 1" midrange driver and 3/4" silk dome tweeter prioritize smoothness in your music's vocal and instrumental details. Kick out your stale, old sound and rediscover how your favourite songs were meant to be heard.

Use factory or aftermarket power

Not planning on swapping out your factory radio or adding an amp? No problem. With the KS Series, Kicker created a highly sensitive design that conjures hefty volume even from low-powered factory radios.

Kicker prioritizes fit

These low-profile speakers feature a reduced mounting depth and minimal tweeter protrusion, making them a match for almost any car.

READ LESS

Product highlights:

  • 3-way car speakers (pair)
  • 6"x9" polypropylene woofer cone with rubber surround
  • 1" midrange driver
  • 3/4" silk dome tweeter
  • handles up to 150 watts RMS (300 watts peak power)
  • frequency range: 30-21,000 Hz
  • sensitivity: 92 dB
  • top-mount depth: 3"
  • impedance: 4 ohms
  • grilles included
  • warranty: 2 years
  • MFR # 47KSC69304

What's in the box:

  • Two 3-way speakers
  • 2 Grilles
  • 2 Adapter brackets
  • 2 Bottom mount spacers
  • 2 in-line crossovers with 11" Lengths of speaker wire attached (tinned wire on the input end and three female quick slides on the output end)
  • 2 Adhesive backed foam pads
  • Grille putty
  • 4 Red plastic wire caps
  • Eight 1-1/8" Screws
  • Quick-Start guide (English/ Spanish/ German/ French)
  • Template

Customer reviews for Kicker 47KSC69304

Loading reviews...

Average review:

4.5 out of 5 stars
117 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Kicker 47KSC69304

Pat M.

Features & specs

General
Speaker Size 6X9
Design 3-way
Tweeter Design 3/4" Dome
Impedance (Ohms) 4
Tweeter Composition Silk
Woofer Composition Polypropylene
Woofer Surround Rubber
Parts Warranty 2 Years
Labor Warranty 2 Years
Specifications
Sensitivity (1W at 1 meter) 92
Sensitivity at 2.83 volts N/A
Frequency Response 30 - 21k Hz
Minimum RMS Wattage 15
Maximum RMS Wattage 150
Peak Power Handling (Watts) 300
Top-mount Depth (Inches) 3
Bottom-mount Depth (Inches) 3 3/8
Cutout Diameter or Length (inches) 0
Mounting Height (Inches) 0.342
Frame Width 6.646
Frame Length 9.208
The Kicker 47KSC69304 replaces these items:

Product Research

Features

Woofer Cones: The Kicker KS Series speakers feature durable polypropylene woofer cones, resistant to moisture and the temperature extremes found in automotive applications.

Dome Tweeter/Midrange: The ¾" silk dome tweeter and 1" silk dome midrange provide smooth mid and high frequency response. Silk is lightweight and great for high frequency extension and efficiency. Both have neodymium magnets.

Crossovers: The included speaker wire has an in-line crossover. The three female quick slides on the output end of the wire attached to the crossover plug onto the three terminals on the speaker (0.11", 0.187" and 0.25"). A note on each crossover states they must be used. (If the crossovers are not used, the tweeters will be damaged very quickly.)

Mounting Brackets: In addition to fitting standard 6x9 applications, Kicker includes a pair of mounting brackets to install the speakers in several vehicle-specific applications. Please enter your vehicle information to confirm fit.

Loading accessories...

Customer Q&A

6 questions already asked

Q
Would I need an amp for these? After installing one I tested it out only to find it was very quite and almost had no sound at all
pflow  Apr 08, 2023
1 answer
A
This depends on your vehicle and specific install, Peyton. These Kicker KS series 6x9's have a 92 db sensitivity, so they play fantastic on 10 to 20-watts of factory radio power. I would make sure there is not an alternate issue first, as these will sound great on very little wattage especially if you are hearing almost no sound at all. Depending on your specific vehicle details, you may want to consider adding an amplifier to get the absolute best performance from your Kicker 6x9's. The Pioneer GM-DX874 4-channel in the link below is a top contender, delivering 100-watts RMS per channel. https://www.crutchfield.com/p_130GMDX874/Pioneer-GM-DX874.html
bo  Apr 08, 2023 (Staff)
Q
Is there a way to know if the crossover is wired wrong?
kevin  Aug 06, 2021
1 answer
A
Check the voltage coming out of the wires if 0 then its wire wrong
jonathan  Aug 09, 2021
Q
What gauge wire is attached to the crossover? Is it removable to use higher gauge wire? Why aren't there any pictures of the crossovers?
adam  Jun 15, 2021
1 answer
A
We do not know the gauge of the crossover wires. They are attached to the crossover and are not removeable. We were not supplied with a picture of the crossover from Kicker and did not take our own picture of the it. I recommend contacting Kicker by calling 405-624-8583 to check if they can supply you with a picture of it.
jason  Jun 29, 2021 (Staff)
Q
These new speakers are a lower volume than oem speakers. the included wire harness didn't work as plug and play because of the 3-way. what did i do wrong or were these the wrong speakers to choose? the car is a 2006 chrysler 300c. the website showed as compatible. i am very unhappy with the quality of the sound, the door speakers are much more louder than the rear now. i do not have the box anymore, it was left at the shop and the janitors threw it away. :(
thomas  Dec 09, 2020
2 answers
A
You gotta use the wiring harness included. You're gonna need to cut off the connection fitting from the speaker wire from the car, you'll have to use those two wires to connect to the wiring harness. The butt connectors included with the new speakers are junk, use a better quality selection. Crutchfield has a Master Installation Sheets for your car, they'll help you identify the + positive and - negative speaker wires. Good luck Pal.
tyler  Dec 14, 2020
A
These speakers come with an external crossover that is required to be spliced into the wiring harness. Without the external crossover I noticed my sound quality was low. After I installed the crossover the sound quality is great.
jim  Dec 12, 2020
Q
2019 Tacoma/no JBL upgrade...I have read that a new tweeter swap out is a great way to improve the sound. Are the highs voided using a 3-way speaker in the door...knowing the way the door speaker/tweeter in the dash is wired? Is a new dash tweeter and a 2-way in the door more effective? thanks
john  Sep 03, 2020
1 answer
A
Hi John! In order for us to provide you with more in-depth information regarding possible upgrades, and to best answer your questions, please chat with us online or by phone at 1-800-324-9695. We are more than happy to help, and provide you with more precise information and answer additional questions that may arise.
jessica  Sep 20, 2020 (Staff)
