About the Kicker 47KSS6504

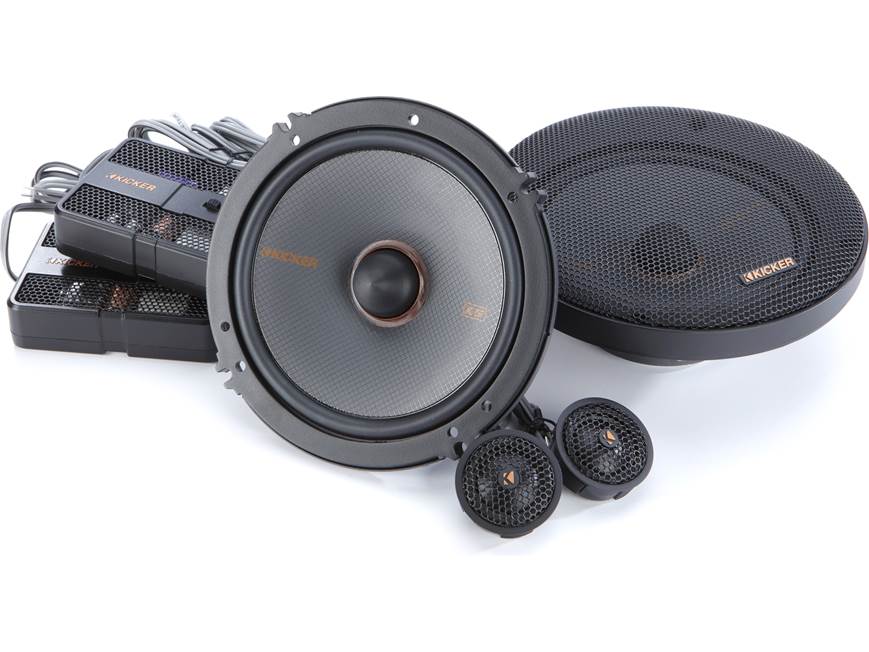

Kicker designed their KS Series lineup to be a substantial step up from your factory speakers. The KSS6504 6-1/2" component system features two quality woofers, two powerful tweeters, and two external crossovers. The polypropylene woofer and its powerful magnet provide a natural sound with a satisfying low end, while the 1" silk dome tweeter prioritizes smoothness in your music's vocal and instrumental details. Kick out your stale, old sound and rediscover how your favorite songs were meant to be heard.
Kicker also gives you the option of screwing the component tweeters on in place of the woofer's removable phase plug, giving you a coaxial speaker that benefits from the superior performance of an external crossover. Installed as 2-way speakers, you can aim the tweeters to direct high-frequency response in your vehicle.
Great with all kinds of power
While we'd recommend using an aftermarket amp to power this system, Kicker gave the KS Series a highly sensitive design that conjures hefty volume even from low-powered factory radios.
These low-profile speakers feature a reduced mounting depth, making them a match for almost any car. And the refined, black grilles included with the package allow you to do a custom installation that'll add nice flair to your car's interior.
- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6-1/2" polypropylene woofer cone with rubber surround
- 1" silk dome tweeter with four mounting options
- external crossover network with 3 tweeter levels (0, +4.5, +9 dB)
- handles up to 125 watts RMS (250 watts peak power)
- can be installed as separate components or as 2-way speakers
- frequency range: 35-21,000 Hz
- sensitivity: 90 dB
- woofer top-mount depth: 1-13/16"
- impedance: 4 ohms
- grilles included
- warranty: 2 years
- Our 60-day money-back guarantee
- MFR # 47KSS6504
What's in the box:
- 2 Woofers
- 2 Phase plugs (installed)
- 2 Woofer adapter brackets
- 2 Woofer grilles
- 2 Grille mounting rings
- Two 1" Tweeters (each with 6" Wire attached)
- 2 Crossovers
- 2 Upper tweeter mounting posts
- 2 Lower tweeter mounting posts
- 2 Tweeter housings
- 2 Tweeter housing washers
- 2 Flush mount rings (tweeter)
- 2 Front angle rings (tweeter)
- 2 Back angle rings (tweeter)
- 2 Short mounting nuts (tweeter)
- 2 Long mounting nuts (tweeter)
- 2 Surface mount pods
- 2 Pod nuts
- 1 Tweeter tool
- Two 11" Zip ties
- 2 Adhesive backed foam pads
- Grille putty
- 4 Red plastic wire caps
- Two M4x7mm Machine screws
- Twelve 1-1/8" Screws
- 12 Speed clips
- Quick-Start guide (English/ Spanish/ German/ French)
More details on the Kicker 47KSS6504
Features & specs
|Speaker Size||6 1/2|
|Tweeter Design||1" Dome|
|Parts Warranty||2 Years|
|Labor Warranty||2 Years|
|Sensitivity (1W at 1 meter)||90|
|Sensitivity at 2.83 volts||N/A|
|Frequency Response||35 - 21k Hz|
|Minimum RMS Wattage||15|
|Maximum RMS Wattage||125|
|Peak Power Handling (Watts)||250|
|Top-mount Depth (Inches)||1 13/16|
|Bottom-mount Depth (Inches)||2 3/16|
|Cutout Diameter or Length (inches)||4 7/8|
|Mounting Height (Inches)||0.359|
Woofer Cones: The Kicker KS-series speakers feature durable Polypropylene woofer cones, resistant to the moisture and temperature extremes found in automotive applications.
Woofer Mounting: The speaker baskets have multiple mounting holes and are designed to fit a standard 3-hole 6½" applications and Ford's 4-hole 6½" application. With the extended mounting "ears" around the perimeter of the frame, they also fit many 6¾" applications, but a speaker baffle should be used to seal the inner ring of screw holes. Kicker also makes a dedicated 6¾" speaker in this series (item number 20647KSS67) that is often a better fit for those applications. Adapter brackets are also included that are compatible with other factory speaker applications. Please enter your vehicle information to confirm fit.
Tweeter Mounting Options: The tweeters come with brackets to allow multiple mounting configurations; flush-mount, angle-mount, and surface-mount. The surface mount pods are mounted to a threaded, hollow shaft and have a ball-and-socket joint, so they can be turned in any direction, and angled up to approximately 30°.
|Frame Diameter||2.05"||2.1"||2.3" x 1.9"|
|Cutout Diameter||1.67"||1.67"||0.47" (post)|
Coaxial Tweeter Mount: In addition to standard tweeter mounting options, the included tweeter mounting posts let you mount the tweeters directly to the center of the woofers, giving you a standard coaxial speaker. The tweeter can be angled up to 12° when coaxially mounted. When the tweeter is attached to the woofer the mounting height increases to 1.078" (top mount) and the tweeter protrusion increases to 0.72" (bottom mount).
Crossovers: The component system includes 12 dB/octave passive crossovers for the tweeters. (Both the woofers and tweeters are wired through the crossovers, but only the tweeters are filtered.) The crossover point is 4,000 Hz. A switch on each crossover allows you to adjust the tweeter output; 0 dB, +4.5 dB, or +9 dB. Each crossover has input and output wires are attached; the 34" woofer output has quick slides that connect directly to the woofer terminals and the 32" tweeter output has quick slides that mate to the terminals on the wire attached to the tweeter. The crossovers' dimensions are:
- Length: 4"
- Width: 2⅞"
- Height: 1⅛"
