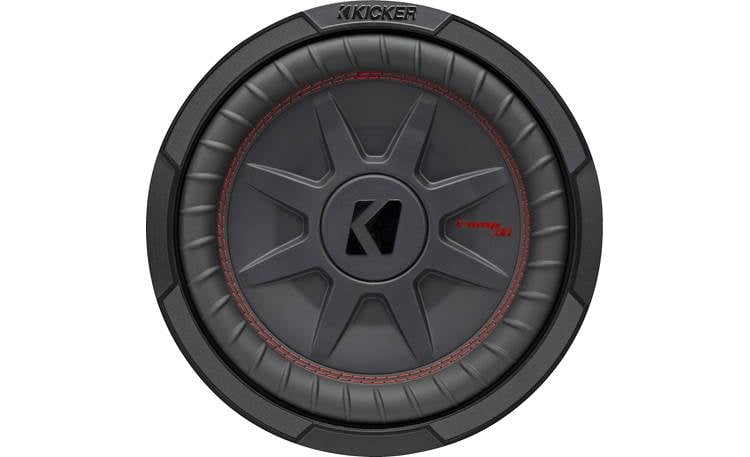

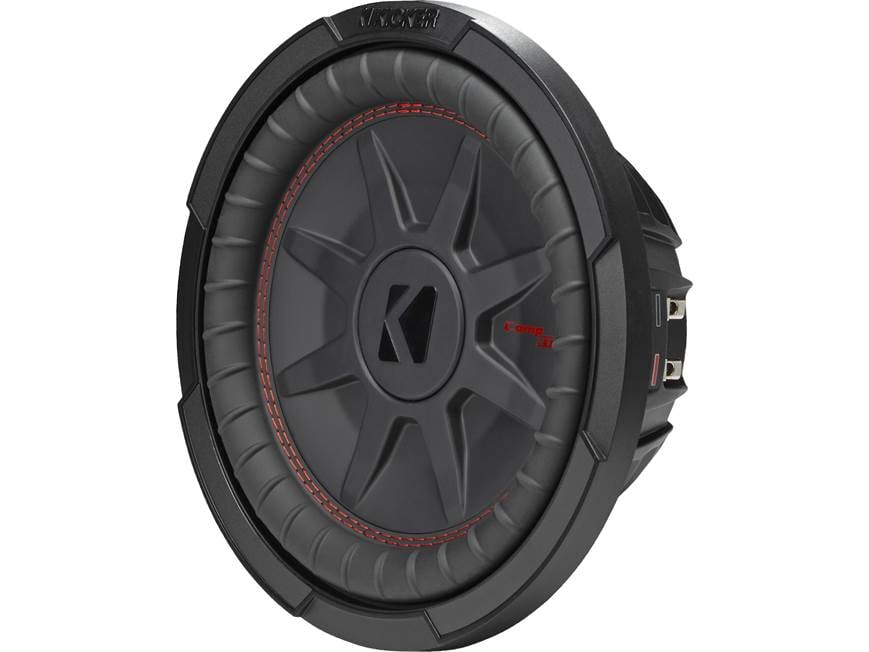

About the Kicker 48CWRT104
Big sound from a small sub
Big sound from a small sub
If you're looking for bass for a tight space, Kicker designed their CompRT subs with compact cars, pickup trucks, and ATVs in mind. The low-profile 48CWRT104 10” subwoofer performs just like a full-size sub, but without killing all your cargo space. This high-performance CompRT sub stands less than 3-1/2" tall, so your installation options are wide open. Kicker has redesigned the forced-air cooling system, so this sub will run cooler when you drive it hard (and you know you will).
Made to bring the boom
The 48CWRT104 comes equipped with a rigid injection-moulded polypropylene cone that won't flex and cause distortion while you're cranking the bass. Its rubber surround will last through years of heavy use, combining with a special-design back and top plate to give you more excursion (which equals more bass) than other skinny subs.
Made to fit many systems
This sub handles up to 400 watts RMS so make sure you've got a solid amp to power it. You can wire the dual voice coils for either 2- or 8-ohm total impedance, giving you more wiring options when setting up your system. This versatile sub sounds great in sealed or ported enclosures.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- 10" shallow-mount subwoofer with dual 4-ohm voice coils
- injection-molded polypropylene cone
- rubber surround
- power handling: 400 watts RMS (800 watts peak)
- frequency response: 25-500 Hz
- sensitivity: 84.8 dB
- top-mount depth: 3.4125"
- sealed box volume: 0.4 - 1.25 cu. ft.
- ported box volume: 1.25 - 1.75 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 48CWRT104
What's in the box:
Kicker 48CWRT104 owner's manual
- One 10" Dual 4-ohm voice coil subwoofer
- Kicker logo sticker
- 4 Adhesive backed screw covers
- Manual (English/ Spanish/ German/ French)
- Screw cover installation instructions
- Template on box
Reviews (29)
Customer reviews for Kicker 48CWRT104
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker 48CWRT104
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10 -inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | Polypropylene | |
| Surround Material | Santoprene Rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
84.8 dB at 1 watt | |
| Frequency Response | 25 - 500 Hz | |
| Max RMS Power Handling | 400 | |
| Peak Power Handling (Watts) | 800 | |
| Top Mount Depth (inches) | 3 1/2 | |
| Bottom Mount Depth (inches) | 4 1/4 | |
| Cutout Diameter or Length (inches) | 9 1/8 | |
| Vas (liters) | --- | |
| Fs (Hz) | --- | |
| Qts | --- | |
| Xmax (millimeters) | --- | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | 0.4 | |
| Maximum Sealed Box Volume (cubic feet) | 1.25 | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Minimum Ported Box Volume (cubic feet) | 1.24 | |
| Maximum Ported Box Volume (cubic feet) | 1.75 | |
Product Research
Features
Dual Voice Coils: This woofer features dual 4Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load. When the voice coils are wired in series, the woofer presents an 8Ω load.
Shallow-Mount: Kicker's CompRT series is designed to minimize depth, giving you subwoofer options where standard enclosures don't fit.
All-Weather: Although not marine certified, Kicker describes the CompRT series as weatherproof.
Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.
Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 0.4 ft³ to 1.25 ft³.
Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Kicker recommends the following ported enclosures:
- Minimum Enclosure Volume: 1.25 ft³ with a 10" x 2" x 20" slot port
- Maximum Enclosure Volume: 1.75 ft³ with a 10" x 2½" x 20" slot port
The Kicker 48CWRT104 replaces these items
- injection-moulded polypropylene cone with rubber surround
- power handling: 125-400 watts RMS
- frequency response: 25-500 Hz
Loading accessories...
Customer Q&A
12 questions already asked
Loading articles...
One of the best sounding subs I have ever owned. In a very small approx .40 cubic foit box with 300watts and hits hard and clear. Custom built enclosure inside rear seat of my TJ Wrangler.
Jimmy from Newnan, GA
