About the Kicker CompVR 43CVR122
Built to handle abuse
Built to handle abuse

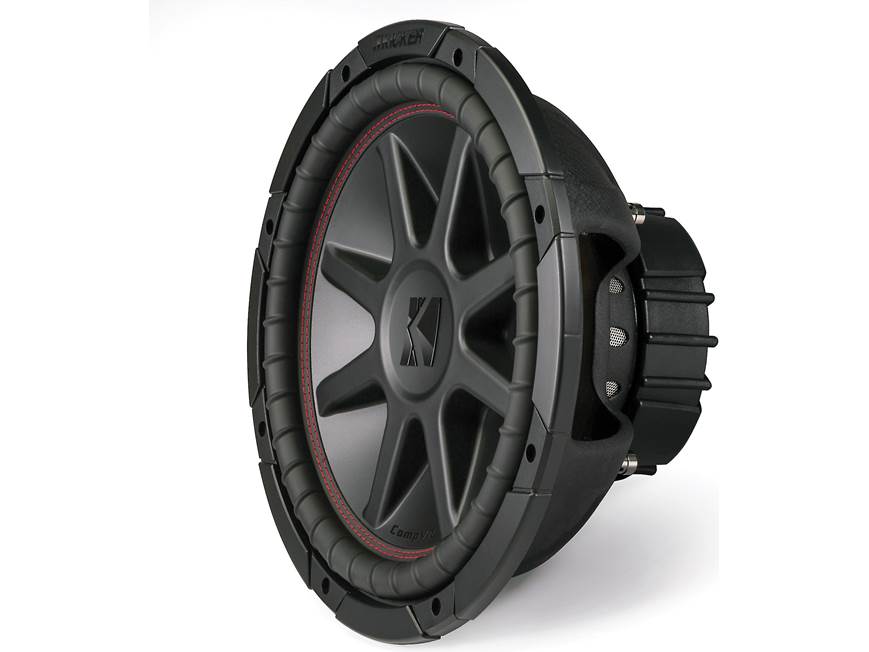

Kicker's CompVR Series 43CVR122 sub delivers serious bass without tearing a hole in your wallet. This 12" sub handles up to 400 watts RMS, thanks to a tough, injection-moulded polypropylene cone supported by a reliable Santoprene™ surround. The unique SoloKon™ cone with its 360-degree back bracing keeps going strong when the bass gets heavy, while perimeter venting in the strong steel basket keeps the voice coils cool for dependable performance.
Dual voice coils for wiring flexibility
The sub's dual 2-ohm voice coils give you more wiring options when setting up your system. The sub's cool-looking black finish highlights the potent low end you'll hear and feel.
Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Product highlights:
- 12" subwoofer with dual 2-ohm voice coils
- injection-molded polypropylene cone
- ribbed Santoprene rubber surround
- power handling: 150-400 watts RMS (200 watts per coil)
- 800 watts peak power handling
- frequency response: 25-500 Hz
- sensitivity: 86.9 dB
- top-mount depth: 6-1/4"
- sealed box volume: 1.0-4.6 cu. ft.
- ported box volume: 1.75-2.25 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 43CVR122
What's in the box:
Kicker CompVR 43CVR122 owner's manual
- One 12" Dual 2-ohm voice coil subwoofer
- Kicker logo sticker
- Manual (English/ Spanish/ German/ French)
- Template on box
Customer reviews for Kicker CompVR 43CVR122
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker CompVR 43CVR122
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 12 -inch | |
| Impedance (Ohms) | 1, 4 | |
| Cone Material | Polypropylene | |
| Surround Material | Rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
86.9 dB at 1 watt | |
| Frequency Response | 25 - 500 Hz | |
| Max RMS Power Handling | 400 | |
| Peak Power Handling (Watts) | 800 | |
| Top Mount Depth (inches) | 6 5/16 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 10 15/16 | |
| Vas (liters) | 65.294 | |
| Fs (Hz) | 32.6 | |
| Qts | 0.648 | |
| Xmax (millimeters) | 14 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | 1 | |
| Maximum Sealed Box Volume (cubic feet) | 4.6 | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Minimum Ported Box Volume (cubic feet) | 1.61 | |
| Maximum Ported Box Volume (cubic feet) | 2.25 | |
Product Research
Features
Dual Voice Coils: This woofer features dual 2Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 1Ω load. When the voice coils are wired in series, the woofer presents a 4Ω load.
Rubber Magnet Boot: A black rubber boot covers the outside edge of the magnet structure to improve the cosmetics of the woofer and protect the magnet during installation. The boot is removable if needed for tight installations.
Break-in Period: The high-performance suspension system makes the speaker very stiff out-of-the-box. Approximately 2 weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.
Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 1.6 ft³ to 4.6 ft³.
Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. Kicker recommends ported enclosures in the following range:
- Minimum Enclosure Volume: 1.75 ft³ with a 12-1/2" x 2-1/2" x 20" slot port
- Maximum Enclosure Volume: 2.25 ft³ with a 12-1/2" x 3" x 20-1/2" slot port
The Kicker CompVR 43CVR122 replaces these items
Kicker 10CVR122
- frequency response: 25-500 Hz
- polypropylene cone with ribbed Santoprene rubber surround
- 50-400 watts RMS power range
