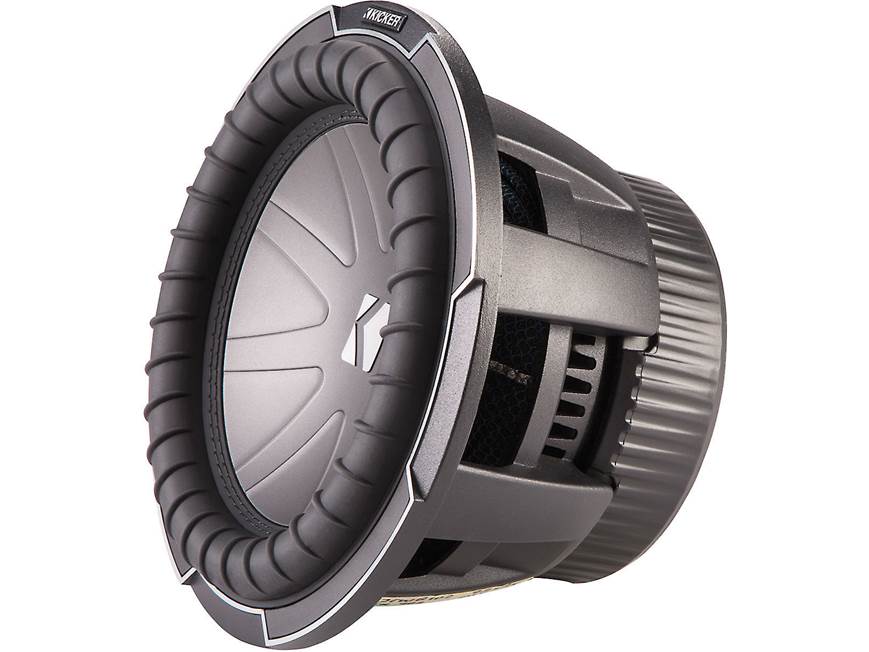

About the Kicker Q-Class 42CWQ104
L7 + round frame = CompQ
L7 + round frame = CompQ
When Kicker introduced their L7™ Series subwoofers, the combination of rugged materials, quality workmanship, and innovative design raised the bar for aftermarket subwoofer performance. Now Kicker has created the CompQ™ Series subwoofer, a speaker that puts the L7's awesome performance into a round basket that'll mount in a standard enclosure.
Built tough for great bass
The 42CWQ102 10" sub features a forged aluminum frame for maximum strength and accurate sound reproduction. The sub's injection-moulded SoloKon™ polypropylene cone features special back bracing for strength and responsiveness, while a special-design Santoprene™ rubber surround allows greater cone excursion for increased output. Two 4-ohm voice coils make it easy to get more power from your mono amplifier.
Handles up to 700 watts
This sub's advanced design keeps things cool when you are driving your system hard, so you'll get reliable performance. With up to 700 watts of RMS power handling, you'll get plenty of the deep, rich bass you need to make your music come alive.
Kicker Q-Class subwoofers incorporate cutting-edge technologies and superb construction to deliver an extraordinary musical experience in your vehicle. These subs are only sold by select dealers chosen by Kicker.
Product highlights:
- 10" subwoofer with dual 4-ohm voice coils
- SoloKon polypropylene cone with Santoprene rubber surround
- cast aluminum basket
- handles up to 700 watts RMS
- sensitivity: 85.3 dB
- mounting depth: 6-3/8"
- sealed box volume: 0.66-1.25 cubic feet
- ported box volume: 1.25-2.25 cu. ft.
- grille not included
- warranty: 3 years
- Our 60-day money-back guarantee
- MFR # 42CWQ104
What's in the box:
Kicker Q-Class 42CWQ104 owner's manual
- One 10" Round dual 4-ohm voice coil woofer
- Kicker logo
- 4 Hardware covers
- Owner's manual (English/ Spanish/ German/ French)
- Template
Reviews
Customer reviews
Loading reviews...
Kicker Q-Class 42CWQ104 reviews
Average review:
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker Q-Class 42CWQ104
Features & specs
| Size | 10 -inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | Polypropylene | |
| Surround Material | Santoprene Rubber | |
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
85.3 dB at 1 watt | |
| Frequency Response | 24 - 100 Hz | |
| Max RMS Power Handling | 700 | |
| Peak Power Handling (Watts) | --- | |
| Top Mount Depth (inches) | 6 3/8 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 3/16 | |
| Vas (liters) | 14.68 | |
| Fs (Hz) | 39.2 | |
| Qts | 0.44 | |
| Xmax (millimeters) | 16.25 | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
Product Research
Features
Dual Voice Coils: For increased system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.
Terminals: The spring post terminals will accept pin connectors, single banana plugs (but not dual), and bare wire up to 8 gauge.
Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 30 Hz).
- Minimum Volume: 0.66 ft³
- Maximum Volume: 1.25 ft³
Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.
- Minimum Volume: 1.25 ft³ with a 2½" x 11¼" x 19¾" slot port
- Maximum Volume: 2.25 ft³ with a 3" x 11¼" x 18" slot port
