About the Morel CCWR254

Expand your premium sound
Expand your premium sound

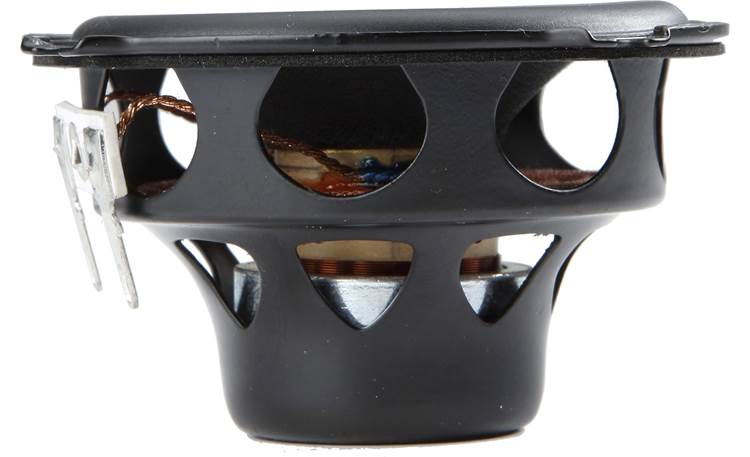

Talk about a jack-of-all-trades... Morel's CCWR254 2-1/2" midrange speakers perform well in a variety of roles. Got a factory centre speaker that's seen better days? This little powerhouse can be installed in those openings, and offers frequency response all the way up to 19,000 Hz. If you're looking to upgrade your sound, Morel built this speaker to do the work of a tweeter in a 2-way system if need be, or you can incorporate it as a midrange driver in a 3-way system for seriously premium sound. Just be sure you power it with an outboard amplifier to make the most of Morel's superior speaker technology.
Grilles are not included; the factory grilles should be suitable for most applications.
Product highlights:
- 2-1/2" car speakers (pair)
- treated paper woofer cone with butyl rubber surround
- handles up to 40 watts RMS (80 watts peak power)
- frequency range: 300-19,000 Hz
- sensitivity: 84.5 dB
- top-mount depth: 1-7/16"
- grilles not included
- warranty: 1 year
- MFR # 325092-325
What's in the box:
- 2 Midrange drivers
- Two 150 microfarad capacitors
- Installation guide
Reviews (15)
Customer reviews for Morel CCWR254
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Morel CCWR254

Features & specs
General | ||
---|---|---|
Speaker Size | 2 1/2 | |
Design | 1-way | |
Tweeter Design | --- | |
Impedance (Ohms) | 4 | |
Tweeter Composition | --- | |
Woofer Composition | --- | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 84.5 | |
Frequency Response | 300 - 19k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 40 | |
Peak Power Handling (Watts) | 80 | |
Top-mount Depth (Inches) | 1 7/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 2 3/16 | |
Mounting Height (Inches) | 0.128 |
Product Research
Features
Crossover: The included 150 microfarad capacitors are 1st order high pass crossovers (6 dB/octave); the crossover point is approximately 265 Hz. One capacitor is wired in-line with the positive input of each speaker.
