About the Morel Elate Carbon Alto
The best of the best
The best of the best
Morel enhanced their Elate Carbon Series with the most effective technology from their flagship Supremo Piccolo tweeters. In addition to the Supremo Piccolo's cavity-back design, you'll find other famous Morel elements in play like a Hexatech aluminum voice coil, which promotes lightning-quick response. Morel enhances the performance of the 1.1" silk dome tweeter with a coating of Acuflex™ compound, which helps damping for a natural sound. By cancelling break-up that can happen at high-frequencies, this special tweeter can soar with a frequency response that reaches up to 25,000 Hz.
Morel allows for a very low crossover point with the Elate Carbon Alto tweeter, which means it can achieve powerfully realistic performance and a highly accurate soundstage with even the most complex music. With power handling up to 220 watts RMS, you'll hear awesome detail at any volume.
Morel complements the powerful sound with a powerful look — an aluminum faceplate and Lotus transparent grille for custom installations.

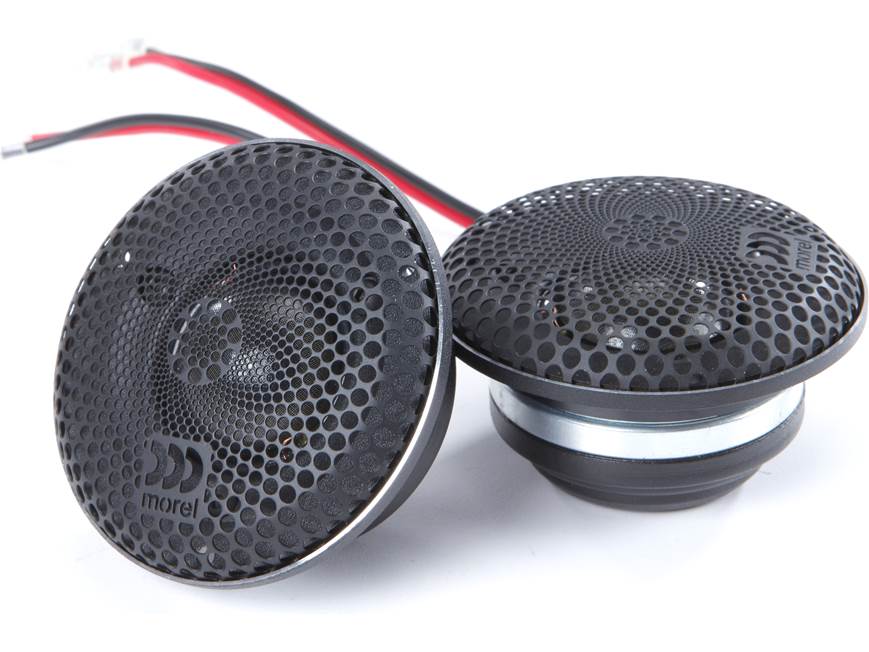

- 1.1" Acuflex coated silk soft dome tweeter (pair)
- flush-mount hardware included
- handles up to 220 watts RMS (1000 watts peak power)
- frequency response: 1,400-25,000 Hz
- impedance: 6 ohms
- sensitivity: 91 dB at 2.83 V
- flush-mount depth: 1-3/16"
- cutout diameter: 2-1/8"
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 323650-125
What's in the box:
- 2 Alto Tweeters (with attached 7" length of speaker wire)
- 2 Grilles (installed)
- Six 3/4" Screws
- 6 Speed clips
- Installation guide
- Warranty card
More details on the Morel Elate Carbon Alto
Features & specs
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||91|
|Frequency Response||1400 - 25k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||220|
|Peak Power Handling (Watts)||1000|
|Top-mount Depth (Inches)||1 3/16|
|Bottom-mount Depth (Inches)||N/A|
|Cutout Diameter or Length (inches)||2 1/8|
|Mounting Height (Inches)||0.465|
Dome Material: The silk dome tweeters are coated with Acuflex, a damping compound designed to minimize distortion. The tweeter is designed to be flush mounted; it is built on a flush mount frame. The dome is very delicate, so the mesh grille should always be used.
