About the Morel Elate Carbon Pro 53A
Add a special tweeter
Add a special tweeter

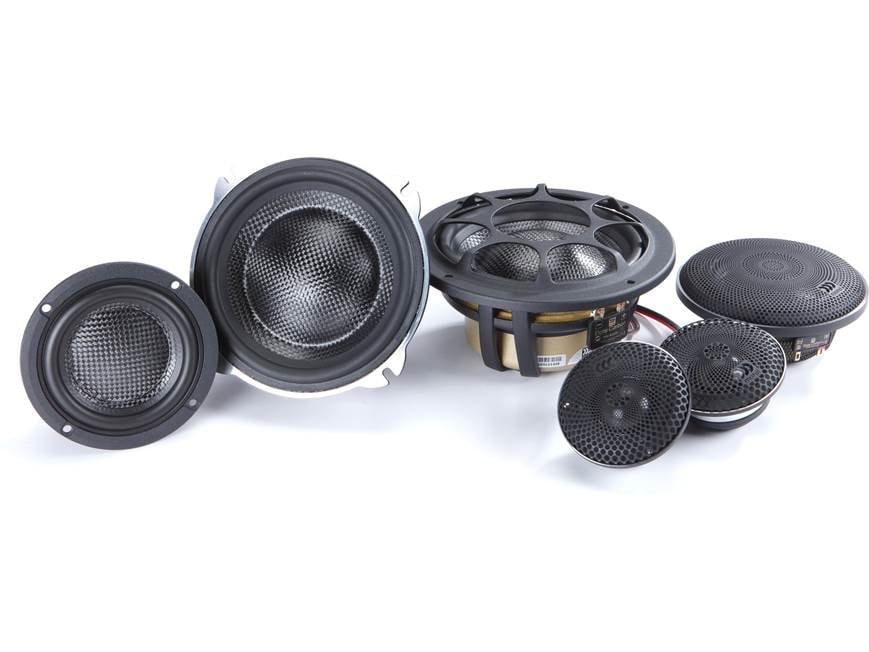

Just the style of Morel's iconic Lotus-design speaker grilles takes your breath away, and then there's the sound... The Elate Carbon Pro 53A 3-way component system includes a 5-1/4" woofer, a 3" midrange driver, and the Elate Alto 1.1" tweeter, not included with the "non-Pro" Elate Carbon systems. Both the midrange and the woofer use a carbon-fibre/Rohacell cone that minimizes distortion for the most accurate sound possible. And for the Elate Alto tweeter, Morel draws on cavity-back technology developed for their flagship Supremo Piccolo tweeter for astounding highs.
Elate Carbon tweeter
Morel enhances the performance of the silk dome tweeter with a coating of Acuflex™ compound, which helps damping for a natural sound. By cancelling break-up that can happen at high-frequencies, this special tweeter soars with a frequency response that reaches up to 25,000 Hz. Additionally, Morel allows for a very low crossover point, which means this tweeter can achieve powerfully realistic performance and a highly accurate soundstage with even the most complex music.
Build an active system
Passive crossover systems are not included. Morel designed these Elate Carbon speakers to be neutral, without coloration, so that you can use your active crossover to craft exactly the right sound for you and your vehicle. You'll need an active crossover to use these speakers. If you would like to use passive crossovers with this system, optional Morel MXT380C crossovers are available
Why choose Morel?
It's hard to not feel overwhelmed by your choices when deciding which component system is worthy of your car... and your ears. But if you're looking for the best, Morel's component speakers soar. Every bit of that excellence is due to their passion for sound and their insistence that every hand-made Morel driver be tested to meet their premium standards.
Installation note: You'll need a pair of our universal backstraps to install the tweeters in most factory locations.
- 3-way component speaker system
- includes two woofers, two midrange drivers, and two tweeters
- 5-1/4" 3-layer carbon fiber/Rohacell woofer cone with butyl rubber surround
- 3" 3-layer carbon fiber/Rohacell midrange driver and 1.1" Elate Carbon Alto Acuflex-coated silk dome tweeter
- cast aluminum basket
- handles up to 160 watts RMS (1000 watts peak power)
- frequency response: 40-25,000 Hz
- sensitivity: 85 dB at 2.83 V
- woofer mounting depth: 2-3/8"
- woofer cutout diameter: 4-13/16"
- midrange mounting depth: 1-9/16"
- midrange cutout diameter: 3-1/4"
- grilles included
- warranty: 2 years
- MFR # 350462-205A
What's in the box:
- 2 MW5 Woofers
- 2 MM3 Midrange
- 2 Alto Tweeters (with attached 7" length of speaker wire)
- 2 Woofer grilles
- 2 Midrange grilles
- 2 Midrange grille frames
- 2 Tweeter grilles (installed)
- Eight 1-1/4" Screws
- Fourteen 3/4" Screws
- 18 Speed clips
- Grille putty
- Eight 0.25" Crimp-on female quick slides
- Four 0.110" Crimp-on female quick slides
- Installation guide
- Warranty card
- Genuine product verification instructions
Customer reviews for Morel Elate Carbon Pro 53A
More details on the Morel Elate Carbon Pro 53A
Features & specs
|Speaker Size||5 1/4|
|Tweeter Design||1.1" Dome|
|Woofer Composition||Carbon Fiber Composite|
|Parts Warranty||2 Years|
|Labor Warranty||2 Years|
|Sensitivity (1W at 1 meter)||N/A|
|Sensitivity at 2.83 volts||85|
|Frequency Response||40 - 25k Hz|
|Minimum RMS Wattage||---|
|Maximum RMS Wattage||160|
|Peak Power Handling (Watts)||1000|
|Top-mount Depth (Inches)||2 7/16|
|Bottom-mount Depth (Inches)||2 9/16|
|Cutout Diameter or Length (inches)||4 13/16|
|Mounting Height (Inches)||0.413|
Woofer Cone: Morel describes the woofer as having a Triple Layer Cone design; two exterior carbon fiber layers sandwiching a layer of Rohacell (a high strength, lightweight foam).
Midrange Size: The midrange drivers are not a standard size, approximately 3" diameter. They can be top or bottom mounted, and have these dimensions:
- Top mount depth: 1.523"
- Mounting height: 0.255"
- Flange height: 0.185"
- Bottom mount depth: 1.708"
- Tweeter Protrusion: 0.07"
- Cutout diameter: 3.254"
- Frame diameter: 3.944"
Tweeters: The silk dome tweeters are coated with Acuflex, a damping compound designed to minimize distortion. The tweeter is designed to be flush mounted; it is built on a flush mount frame. The dome is very delicate, so the mesh grille should always be used.
