About the Morel Hybrid MW5 MKII

Serious performance
Serious performance

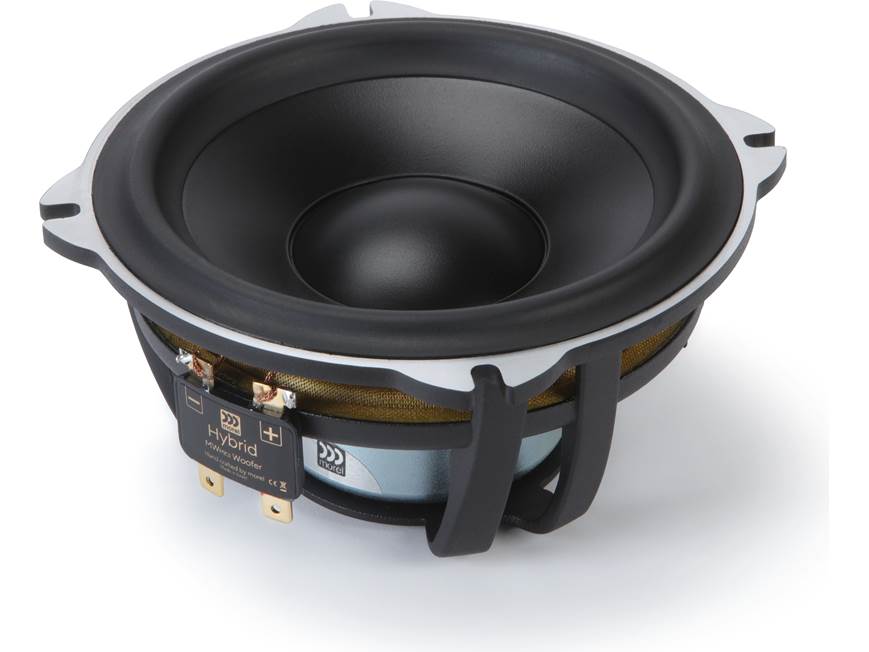

Morel takes sound in the car seriously, and a great midrange speaker is crucial to a satisfying system. This Hybrid MW5 MKII 5-1/4" damped polymer woofer, powered by ferrite and neodymium magnets, handles the lower and midrange frequencies, benefitting massively from its sturdy one-piece dustcup structure. Plus, Morel uses new Hexatech aluminum voice coil technology for better heat dispersion and efficient performance.
Use it as part of a 2- or 3-way component system, and add a subwoofer for serious bass reinforcement. Just be sure you power it with an outboard amplifier to make the most of Morel's superior speaker technology.
Product highlights:
- 5-1/4" car woofers (pair)
- one-piece damped polymer woofer cone (DPC) with butyl rubber surround
- handles up to 120 watts RMS (500 watts peak power)
- frequency range: 45-3,000 Hz
- sensitivity: 90 dB
- top-mount depth: 2-7/16"
- cutout diameter: 4-13/16"
- warranty: 2 years
- MFR # 321125-425
What's in the box:
Morel Hybrid MW5 MKII owner's manual
- Two MW5mkII Woofers
- 2 Grilles
- Eight 1-1/4" Screws
- 8 Speed clips
- Installation guide
Reviews (2)
Customer reviews for Morel Hybrid MW5 MKII
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Morel Hybrid MW5 MKII

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Design | 1-way | |
Tweeter Design | --- | |
Impedance (Ohms) | 4 | |
Tweeter Composition | --- | |
Woofer Composition | Damped Polymer | |
Woofer Surround | Rubber | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 90 | |
Frequency Response | 45 - 3k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 120 | |
Peak Power Handling (Watts) | 500 | |
Top-mount Depth (Inches) | 2 7/16 | |
Bottom-mount Depth (Inches) | 2 9/16 | |
Cutout Diameter or Length (inches) | 4 13/16 | |
Mounting Height (Inches) | 0.337 |
Product Research
Features
Controlled Acoustic Resistance: Car speakers are typically installed in free-air applications, providing minimal acoustic loading. Controlled Acoustic Resistance (C.A.R. Filter) improves the acoustic loading by controlling airflow within the driver, mimicking the effects of an enclosure. This provides greater control over the woofer's cone movement for improved bass dynamics.
Crossover: These drivers do not include a crossover, so you'll need to add one to the system if it's not built into your amplifier.
Loading accessories...
Customer Q&A
Loading articles...
Great speakers. Beautiful full sound with rich bass response. Adapter brackets perfectly matched vehicle and made installation nice & clean. Only hitch was necessity to enlarge original speaker opening in door to accommodate larger Morel frame.
Leonard from Santa Maria, CA
