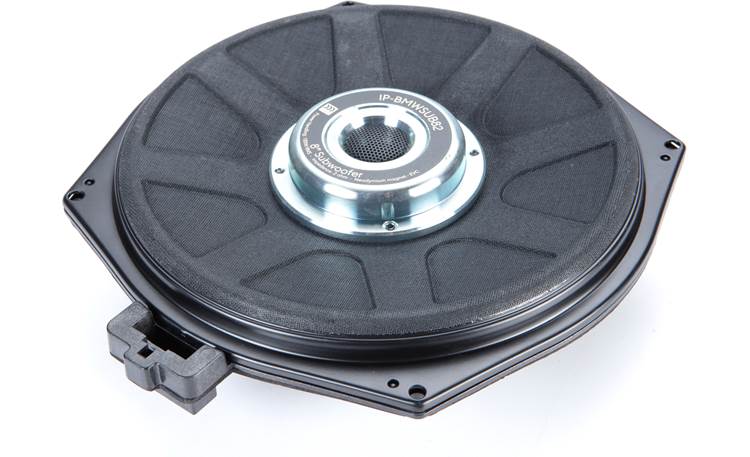

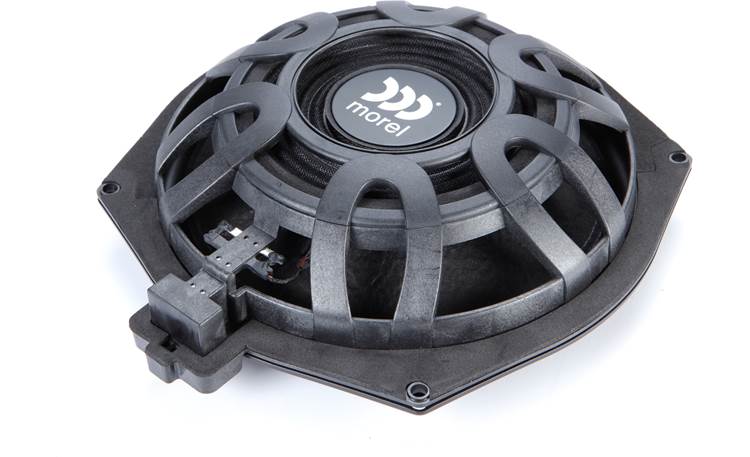

Morel IP-BMWSUB82 8" ultra-slim component subwoofer — designed to fit select BMW vehicles with factory sub

Item # 210IPBMWSU

Bring bass into your BMW with Morel's custom-fit ultra-slim sub.

Find what Fits your vehicle

Remove

Checking fit...

Bring bass into your BMW with Morel's custom-fit ultra-slim sub.

Item # 210IPBMWSU

In stock

Deeply discounted installation gear

C$499.95 each

About the Morel IP-BMWSUB82

Alexander H.

Upgrade BMW bass performance

Get ready for more satisfying punch in your favourite tunes with this Morel IP-BMWSUB82 8" ultra-slim component subwoofer. It's a straightforward swap for your BMW's factory sub, and Morel's DirectFit design with supplied mounting brackets and factory wire connections makes installation go smoothly. The sub's 2-ohm impedance makes it highly efficient when used with your BMW's factory amplification and its Uniflow™ chassis helps eliminate distortion for clean performance.

Product highlights:

  • 8" shallow-mount subwoofer
  • designed to fit in factory location of select BMW models
  • built-in adapters for the BMW speaker plugs
  • mounting hardware included
  • paper composite cone
  • 2-ohm impedance compatible with BMW amplifier
  • handles up to 180 watts RMS (500 watts per voice coil)
  • frequency response: 20-1000 Hz
  • sensitivity: 84 dB
  • warranty: 2 years
  • MFR # 327570-110

What's in the box:

  • 1 Subwoofer
  • 1 Foam gasket
  • Installation guide

Customer reviews for Morel IP-BMWSUB82

We don't have any reviews, yet.
Be the first to review this product

Loading reviews...

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Morel IP-BMWSUB82

Pat M.

Features & specs

General
Speaker Size Vehicle-specific
Design 1-way
Tweeter Design ---
Impedance (Ohms) 2
Tweeter Composition ---
Woofer Composition Paper Composite
Woofer Surround Rubber
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 84
Frequency Response 20 - 1k Hz
Minimum RMS Wattage ---
Maximum RMS Wattage 180
Peak Power Handling (Watts) 500
Top-mount Depth (Inches) 1 5/8
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 7 9/16
Mounting Height (Inches) 0.9
Frame Width 8.51
Frame Length 8.51

Product Research

Features

Mounting: The IP-BMWSUB82 is a direct replacement for the factory under-seat subwoofers in select BMW models. In most cases, the new sub has the same screw hole pattern as the factory sub and is a perfect fit, but there are a few instances where the factory sub was glued in place and new screw holes need to be drilled in the plastic factory enclosure. The factory grille is re-installed over the new subwoofer. This sub is packaged individually, so you will need to purchase two. Please enter your vehicle information to confirm fit.

Wiring: The BMW factory wiring harness plugs directly into the subwoofer frame.

Magnet: The sub uses a neodymium magnet to minimize size without giving up magnetic field strength.

Reinstalling Seats: When researching a previous generation BMW replacement subwoofer, I found a warning about not reconnecting the battery until the seats have been reinstalled and the wiring reconnected. The warning stated that reconnecting power too soon, to test the new subs, can damage the seats and airbags. I found no such warning related to this sub, but to be safe I recommend heeding the warning in this case as well.
