About the Morel Maximo Ultra 603 MKII
Rediscover your favourite songs
Rediscover your favourite songs
No matter how many car audio installations I do, listening to high-quality car speakers brings a certain thrill that never goes away — the thrill of the moment when I hear something totally new in an old favourite song. Morel understands how you feel, and their Maximo Ultra Series delivers every bit of Morel's excellence and passion for sound at their most affordable price point.
3-way Maximo sound
This Morel Maximo Ultra 603 MKII component speaker system uses a 6-1/2" treated paper composite woofer, a separate 2-1/2" midrange driver, and a separate 1" soft dome tweeter to deliver impressive full-range sound. The true champ of the system is the 2-1/2" driver which takes on the dynamic sound of the midrange with gusto, so that the woofer can rumble and the tweeter can soar.
Handles up to 100 watts RMS
This system can handle up to 100 watts RMS, so you'll get the best performance powering these component speakers with an aftermarket amplifier. The external crossover delivers an ideal blend of the highs, mids, and lows for an incredible stereo image. Morel also includes mounting solutions for ideal tweeter placement. You'll have to custom-mount the midrange drivers in most vehicles.
Product highlights:
- component speaker system includes 2 woofers, 2 midrange drivers, 2 tweeters, and 2 crossovers
- 6-1/2" treated paper composite woofer cone with butyl rubber surround
- 2-1/2 treated paper midrange driver
- 1" soft dome textile tweeter
- external Morel Crossover Resolution (MXR) crossover
- handles up to 100 watts RMS (180 watts peak power)
- frequency response: 50-20,000 Hz
- sensitivity: 90.5 dB at 2.83 V
- woofer mounting depth: 2-5/16"
- grilles included
- warranty: 1 year
- MFR # 350173-200
What's in the box:
Morel Maximo Ultra 603 MKII owner's manual
- Two Woofers
- Two Midrange
- Two Tweeters (with attached 38" length of speaker wire)
- 2 Crossovers
- 2 Woofer grilles
- 2 Woofer grille frames
- 2 Midrange grilles
- 2 Midrange grille frames
- Grille putty
- 2 Mesh tweeter grilles (installed)
- 2 Oval flush mount tweeter housings (with tweeters installed)
- 2 Flush mount brackets
- 2 Large angled surface mount tweeter housings
- 2 Small angled surface mount tweeter housings
- Twelve 1" Screws
- Eight 3/4" Screws
- 8 Large speed clips
- 8 Small speed clips
- Two 0.187" Crimp-on female quick slides
- Six 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Six 0.110" Quick slide insulating covers
- Installation guide
- Morel window sticker
Featured video:
Reviews (4)
Customer reviews for Morel Maximo Ultra 603 MKII
Loading reviews...
Average review:
4.5 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Morel Maximo Ultra 603 MKII
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 3-way | |
| Tweeter Design | Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Textile | |
| Woofer Composition | Treated Paper Composite | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 90.5 | |
| Frequency Response | 50 - 20k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 180 | |
| Top-mount Depth (Inches) | 2 5/16 | |
| Bottom-mount Depth (Inches) | 2 1/2 | |
| Cutout Diameter or Length (inches) | 5 5/8 | |
| Mounting Height (Inches) | 0.252 | |
Product Research
Features
Woofer Size Classification: Some manufacturers, including Morel, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size as 6¾". Please enter your vehicle information to confirm fit.
Midrange Size: The midrange drivers are not a standard size, approximately 2½" diameter. They are top mounted and have these dimensions:
- Depth: 1.38"
- Mounting height:
- With Grille: 0.425"
- Without Grille: 0.16"
- Flange height: 0.1"
- Cutout diameter: 2.156"
- Frame diameter: 2.571"
- Terminal Width: 0.11"
Tweeter Mounting Options: The tweeter can be surface or flush mounted using the included adapters. The large surface mount housing also uses the oval flush mount housing and angles the tweeters at approximately 45°. The small surface mounting housing angles the tweeters at approximately 20°.
Tweeter Dimensions:
| Oval Flush Mount | Large Surface Mount | Small Surface Mount | |
| Mounting Height | 0.60" | 1.93" | 1.34" |
| Mounting Depth | 0.875" | screw depth | screw depth |
| Cutout Diameter | 1.94" | N/A | N/A |
| Frame Width | 2.21" | 2.332" | 1.93" |
| Frame Depth | 2.70" | 2.625" | 1.96" |

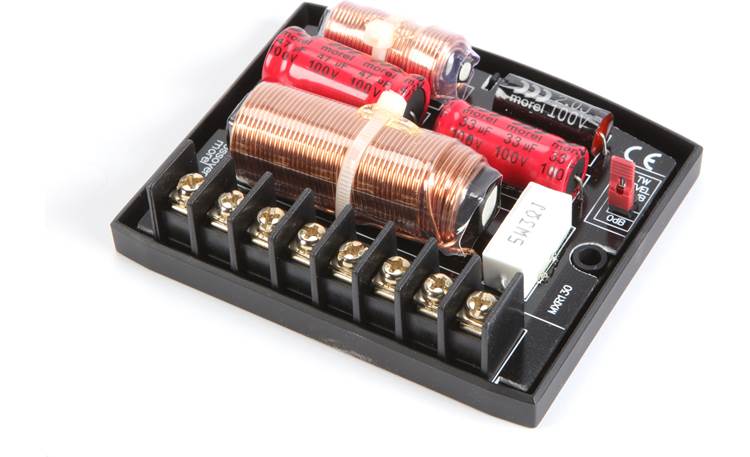

Crossover: The outboard crossovers have screw terminal inputs and outputs (0.3" wide). A jumper on each crossover allows you to adjust the tweeter output level to 0 dB or +3 dB.
Crossover Dimensions:
- Width: 3⅞"
- Height: 1¼"
- Depth: 3¼"
The Morel Maximo Ultra 603 MKII replaces these items
- 6-1/2" treated paper composite woofer cone with butyl rubber surround
- handles up to 100 watts RMS (180 watts peak power)
- 2-1/2 treated paper midrange driver; 1" soft dome textile tweeter
