About the Morel Ultimo TI SC124
Championship lineage
Championship lineage
When the Ultimo Series 10" subwoofer won the 2014-15 EISA best subwoofer of the year award, it confirmed that Morel has the knowledge and expertise to create some of the most musical bass drivers out there. Now, they've used some of the advanced technology developed for the Ultimo Titanium Series subs to create the Ultimo SC line, giving you prize-winning bass at a lower price point.
The Ultimo SC sub is all about powerful, accurate bass.
5.1" external voice coil

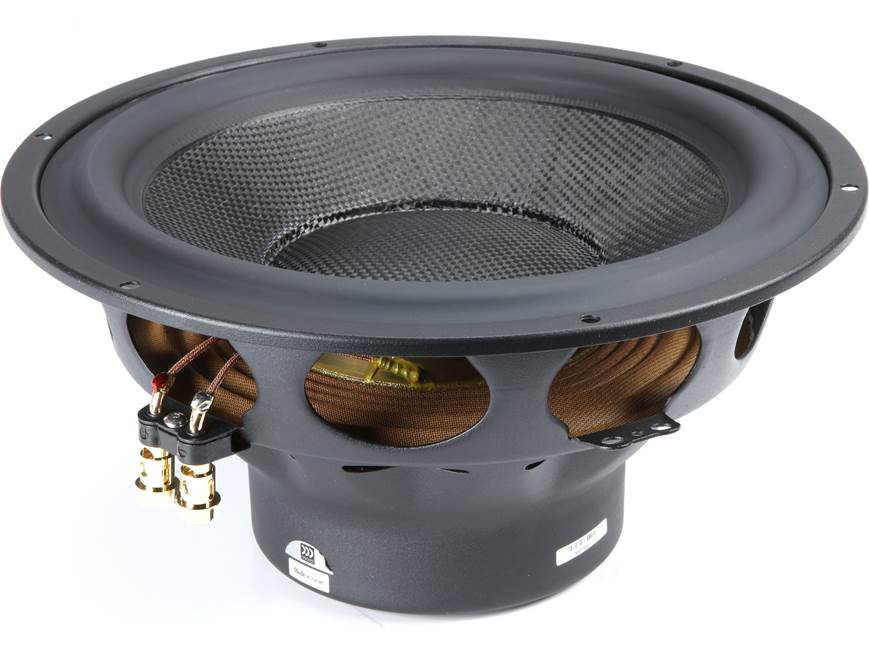

The Ultimo Ti SC124 12" 4-ohm subwoofer features a huge 5.1" external voice coil wound from Hexatech™ aluminum wire on a titanium former, along with a highly efficient double ferrite magnet motor that maximizes the magnetic field. This means high quality sound, high power handling (up to 600 watts RMS), and high durability.
Stable and reliable
The SC124's composite cone gives you the best of both worlds – the musicality of paper with the durability of carbon fibre. Housed in a heavy-duty stamped steel basket, this cone achieves the rigidity you need for strong bass output while retaining a warm, natural sound. And that's what the Ultimo SC is all about: low-down bass with audiophile-quality sound.
Product Highlights:
- 12" 4-ohm component subwoofer
- external voice coil
- carbon fiber/paper laminate cone with rubber surround
- power handling: 600 watts RMS
- peak power handling: 2000 watts
- frequency response: 10-900
- sensitivity: 89 dB
- top-mount depth: 6"
- sealed box volume: 0.706-1.76 cubic feet
- ported box volume: 1.059-2.11 cubic feet
- MFR # 327631-210
What's in the box:
Morel Ultimo TI SC124 owner's manual
- One 12" Single 4-ohm voice coil subwoofer
- Octopus style grille
- User manual
- Morel logo badge
- Morel window sticker
- Genuine product verification instructions
- Warranty card
Reviews
Customer reviews
Loading reviews...
Morel Ultimo TI SC124 reviews
Average review:
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Morel Ultimo TI SC124
Features & specs
| Size | 12 -inch | |
| Impedance (Ohms) | 4 | |
| Cone Material | Paper/Carbon Fiber | |
| Surround Material | Rubber | |
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | 1.59 | |
| Port diameter (inches) | 4 | |
| Port length (inches) | 19.2 | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity |
91.5 dB at 2.83 volts 87 dB at 1 watt | |
| Frequency Response | 10 - 900 Hz | |
| Max RMS Power Handling | 600 | |
| Peak Power Handling (Watts) | 2000 | |
| Top Mount Depth (inches) | 5 11/16 | |
| Bottom Mount Depth (inches) | 6 | |
| Cutout Diameter or Length (inches) | 10 3/8 | |
| Vas (liters) | 92.2 | |
| Fs (Hz) | 26 | |
| Qts | 0.47 | |
| Xmax (millimeters) | 9.5 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
Product Research
Features
Sealed Box: Morel recommends sealed enclosure sizes from 20 liters (0.71 ft³) to 50 liters (1.77 ft³). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Box: Morel recommends ported enclosure sizes from 30 liters (1.06 ft³) to 60 liters (2.12 ft³), with an optimum volume of 45 liters (1.59 ft³). Two ported enclosure volume options are listed in the manual; 35 liters (1.24 ft³) with one 10.16cm (4") diameter x 55.82cm (21.97") long port and 55 liters (1.94 ft³) with one 10.16cm (4") diameter x 43.7cm (17.2") long port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output.
