About the Morel Virtus Nano Carbon MW6
An essential component
An essential component

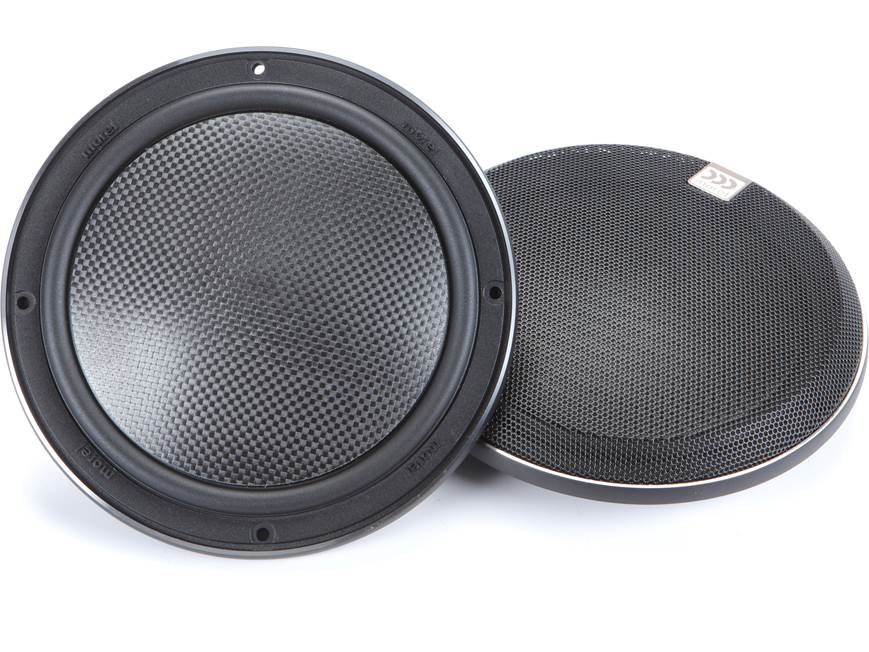

The time has come to upgrade the audio in your classic or custom car, and Morel has the eye-popping solution. The Virtus Nano Carbon MW6 woofer offers hi-fi performance of the all-important lower and midrange frequencies while still fitting in challenging locations. With an incredible mounting depth of only 11/16", this speaker uses Morel's unique Hexatech™ aluminum voice coil and sandwich carbon fibre dome-shaped woofer to help deliver satisfying low-end punch and a rich, natural sound.
Use it as part of a 2- or 3-way component system, and add a subwoofer for serious bass reinforcement. Just be sure you power it with an outboard amplifier to make the most of Morel's superior speaker technology.
Note: Morel does not include a crossover with these speakers.
Product highlights:
- 6-1/2" woofers (pair)
- sandwiched carbon fiber convex woofer cone with butyl rubber surround
- handles up to 100 watts RMS (300 watts peak power)
- frequency range: 50-5,500 Hz
- sensitivity: 88 dB
- impedance: 4 ohms
- top-mount depth: 11/16"
- cutout diameter: 5-3/8"
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # 321116-225
What's in the box:
Morel Virtus Nano Carbon MW6 owner's manual
- Two Nano MW6 Woofers
- 2 Grilles (installed)
- Eight 1-1/4" Screws
- 8 Speed clips
- Four 0.25" Crimp-on female quick slides
- Grille putty
- Installation guide
- Warranty card
- Genuine product verification instructions
Featured video:
10 reasons to shop with us
#8
Articles, DIY tips, and videos
Our experts help you shop smart.
Customer reviews
Loading reviews...
Customer photos
More details on the Morel Virtus Nano Carbon MW6
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 1-way | |
| Tweeter Design | --- | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | --- | |
| Woofer Composition | Carbon/Foam Core | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 88 | |
| Frequency Response | 50 - 5.5k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 0 11/16 | |
| Bottom-mount Depth (Inches) | 0 15/16 | |
| Cutout Diameter or Length (inches) | 5 3/8 | |
| Mounting Height (Inches) | 0.7 | |
Product Research
Features
Size Classification: Some manufacturers, including Morel, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size woofer as a 6¾". Please enter your vehicle information to confirm fit.
Dome: Morel describes the woofer as a Grand Dome, having a Triple Layer design; two exterior carbon fiber layers sandwiching a layer of Rohacell (a high strength, lightweight foam).
Controlled Acoustic Resistance: Car speakers are typically installed in free-air applications, providing minimal acoustic loading. Controlled Acoustic Resistance (C.A.R. Filter) improves the acoustic loading by controlling airflow within the driver, mimicking the effects of an enclosure. This provides greater control over the cone movement for improved bass dynamics.
Crossover: These drivers do not include a crossover, so you'll need to add one to the system if it's not built into your amplifier.
