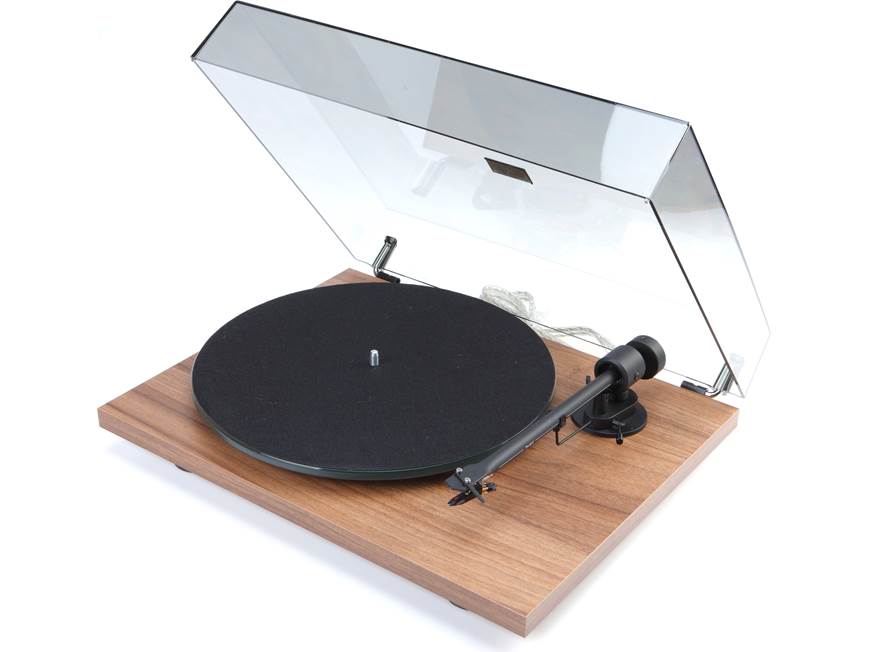

About the Pro-Ject T1
Product highlights:
- heavy 8mm zero-resonance glass platter with felt mat to protect records from scratches
- 8.6" one-piece aluminum tonearm with low-friction, vibration-free bearing
- includes pre-mounted Ortofon OM 5E moving magnet cartridge
- anti-resonant sub-platter design
- heavy, solid, precision routed chassis with shock absorbing feet
- ultra-precise main bearing with a hardened steel axle and brass bushing
- manual speed switching: 33-1/3rpm and 45rpm
- speed variance: 0.7% (at 33-1/3 RPM), 0.6% (at 45 RPM)
- wow and flutter: 0.25% (at 33-1/3 RPM), 0.23% (at 45 RPM)
- speed-regulated AC motor
Dimensions and warranty:
- dimensions (measured by Crutchfield): 16-7/16"W x 4-3/8"H x 13-1/2"D
- weight: 8.38 lbs.
- warranty: 2 years (1 year warranty for the supplied cartridge)
- MFR # 9120097821959
- Item # 252T1WN
What's in the box:
- Turntable
- Sub-platter (pre-installed)
- Tone-arm (pre-installed)
- Cartridge w/ stylus (pre-installed)
- Counter-weight (pre-installed)
- Platter
- Belt
- Mat
- 45RPM adapter
- Dust cover
- Stylus pressure gauge
- Two-point cartridge alignment protractor
- Allen-key
- Plastic key
- Instructions for Use
More details on the Pro-Ject T1
Features & specs
| Features | ||
|---|---|---|
| Color | Walnut | |
| Operation | Manual | |
| Automatic Functions | N/A | |
| Speeds | 33-1/3, 45 | |
| Speed Control | Manual | |
| Drive Type | Belt | |
| Pitch Control | No | |
| Phono Preamp | No | |
| Phono/Line Switch | No | |
| Adjustable Vertical Tracking Angle | No | |
| Adjustable Azimuth | No | |
| Bluetooth Built-In | No | |
| Wi-Fi Streaming | No | |
| 45 RPM Adapter | Yes | |
| Dust Cover | Yes | |
| Materials and Construction | ||
| Plinth | MDF | |
| Platter | Glass | |
| Tone Arm Shape | Straight | |
| Tone Arm Material | Aluminum | |
| Tone Arm Lift | Finger, Lever | |
| Cartridge Info | ||
| Included Cartridge | Ortofon OM 5E | |
| Cartridge Type | MM | |
| Removable Headshell | No | |
| Tracking Weight | 1.75 g (17.5mN) | |
| Frequency Response | 20-25,000 | |
| Output Voltage | 4.0 | |
| Load Impedance | 47,000 | |
| Load Capacitance | 200-500 | |
| Connections | ||
| RCA Audio Output | Yes | |
| 3.5mm Audio Output | No | |
| 5-pin Mini XLR Audio Output | No | |
| 5-pin DIN Audio Output | No | |
| Ground Wire Terminal | Yes | |
| USB-A Port | No | |
| USB-B Port | No | |
| Audio Cable | Attached | |
| Power Cable | Attached | |
| Audio Specs | ||
| Signal to Noise Ratio | 65 | |
| Wow and Flutter | 0.25 | |
| Dimensions and Warranty | ||
| Width (Inches) | 16.4375 | |
| Height (Inches) | 4.375 | |
| Depth (Inches) | 13.5 | |
| Weight | 8.38 lbs. | |
| Turntable Parts Warranty | 2 Years | |
| Turntable Labor Warranty | 2 Years | |
| Cartridge Parts Warranty | 1 Year | |
| Cartridge Labor Warranty | 1 Year | |
Product Research
Features
Low-Noise Design: For the drive system, where many turntables may use un-regulated DC motors with wide speed fluctuations, the T1 features Pro-Ject's proven system of an electronically regulated, precision-speed AC motor. The result is a low-noise, stable drive system for the turntable. The precision-speed AC motor drives a belt-system, attached to a newly designed sub-platter, which is mounted into an ultra-precise 0.001mm main bearing with a hardened steel axle and brass bushing. Alongside this chosen motor system, the T1 is able to ensure a smooth, anti-resonant rotational platform for the tonearm and cartridge to ride across.
One-Piece Tonearm: The tonearm on the T1 is a new model, based on previous Pro-Ject designs. With its straight, 8.6" effective length and stiff aluminum construction, this one-piece tonearm also features low-friction bearings for absolute accuracy in use. Besides the clean and stylish looks, the integrated headshell won't cause any additional vibrations either, and is a big improvement over many other detachable, screwed-on or glued-on headshells.
Ortofon OM5e MM Cartridge: The Pro-Ject T1 comes supplied with an Ortofon OM5e Moving Magnet cartridge, featuring an elliptical diamond stylus tip for true high-fidelity playback from your vinyl record collection.
Zero-Resonance Construction: The stylish CNC-machined plinth features no plastic parts and is carefully manufactured to ensure there are no hollow spaces inside, therefore avoiding unwanted vibrations within the chassis. Carrying this philosophy through the design, the included 8mm glass platter is also a heavy, zero-resonance design (avoiding the flaws of plastic or lightweight steel alternatives). Finally, the purpose-chosen turntable feet also do a good job of isolating the T1 from ambient vibrations around your hi-fi system.
Attached Stereo RCA Cable: The Pro-Ject T1 is outfitted with 4' attached stereo RCA cable to connect the turntable to a Phono MM input of your integrated amplifier or receiver.
Note: The Pro-Ject T1 requires a Phono MM input. If your integrated amp or AV receiver does not feature a dedicated Phono MM input, you'll also need an external Phono MM preamp (sold separately - see Accessories List).
Added Protection: The Pro-Ject T1 comes with a hinged, clear plastic dust cover and a felt mat to protect the turntable and your records.
