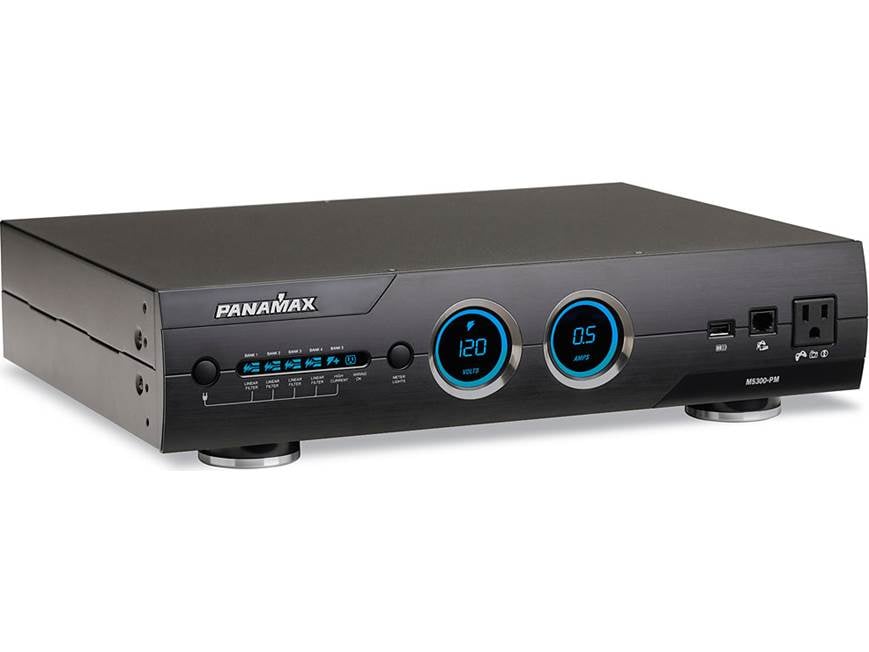

About the Panamax M5300-PM
Protect your equipment and improve its performance
The 10 rear-panel AC outlets are divided into 5 isolated banks, which helps prevent noise created by one component from affecting your other gear.
Protect your equipment and improve its performance
The Panamax M5300-PM does more than just protect your audio/video system from harmful power spikes. It also smoothes out minor current fluctuations and effectively eliminates electronic interference, giving you clear, pristine picture and sound. The M5300-PM can safeguard up to 11 components, and it includes a protected front-panel USB jack for your MP3 player, cell phone or another portable electronic device.
Clean power for high-performance audio/video gear
This power conditioner has ten AC outlets on its back panel, divided into five isolated banks to minimize cross-interference between your components. Two of the outlets accommodate high-current components, such as an amplifier and powered subwoofer. These switched outlets operate on a delay to prevent "speaker thump" when powering your system on and off. A front-panel digital voltmeter and ammeter let you closely monitor the AC power coming into your system.
Ethernet and coaxial RF protection
The M5300-PM also has two sets of protected Ethernet jacks, including one jack on the front panel, so you can surf the web without worry of power surges. A pair of protected telephone jacks prevents spikes from coming in through your phone line, while three sets of coaxial terminals shield your satellite, cable TV and antenna connections.
- 11 AC outlets with 5 isolated banks:
- two isolated banks of two switched outlets
- two isolated banks of two always-on outlets
- one isolated bank of two switched high-current outlets with delayed on/off
- one front-panel convenience outlet
- front-panel USB charger
- surge and over- and under-voltage protection
- filtration circuitry virtually eliminates line noise
- three sets of coaxial RF connections for cable/satellite/TV antenna
- two sets of RJ-45 Ethernet line inputs and outputs, including one front-panel connection
- RJ-11 phone line input and output
- 12-volt trigger input for delayed outlets
- front-panel digital voltmeter and ammeter
- 2125-joule surge protection
- maximum current rating: 15 amps
- 17"W x 4-1/4"H x 14-1/4"D
- warranty: 3 years
- Our 60-day money-back guarantee
- $5 million connected-equipment warranty (covers equipment that is damaged by an AC surge while connected to a properly installed Panamax surge protector if protector shows signs of surge damage or is operating outside of design specifications)
- MFR # M5300-PM
What's in the box:
Panamax M5300-PM owner's manual
- Surge suppressor/power line conditioner
- 10' AC power cord (IEC C-13 plug)
- 2 Rack mount brackets
- 4 Machine screws
- 4 Plastic washers
- 42" coaxial cable
- 48" Ethernet cable (has an RJ45 connector on each end)
- 49" Telephone cable (has an RJ11 connector on each end)
- Owner's Guide (English/Spanish/French)
Panamax M5300-PM reviews
This review was collected as part of a promotion
More details on the Panamax M5300-PM
Features & specs
|Total AC Outlets||11|
|Total Current Capacity||15|
|Coaxial RF Jacks||Yes|
|Powerline Network Compatible||No|
|Connected Equipment Guarantee||$5,000,000|
|Parts Warranty||3 Years|
|Labor Warranty||3 Years|
Controls And Indicators
11 AC Outlets: The Panamax M5300-PM features 1 front-panel "Always On" AC outlet, 4 rear-panel "Always On" Linear Filtered outlets divided into two separate banks, 4 rear-panel "Switched" Linear Filtered AC outlets also divided into two separate banks, and 2 rear-panel "Switched/Delayed High Current" AC outlets.
- High Current Outlets: The unit's two High Current Outlets provide power from a low impedance noise filtration circuit that does not limit the current to your equipment. Its output is noise isolated from all of the other outlets.
- Linear Noise Filtration Outlets (Switched): The unit's four switched Linear Noise Filtration Outlets are divided into two separate banks and are controlled by the front panel Power Button or the DC Trigger input. These outlets will turn on immediately and turn off after 10 seconds. LiFT EMI/RFI noise filtration is provided by a two-stage balanced Pi filter which also provides noise isolation from the other outlet banks.
- Linear Noise Filtration Outlets (Always On): The units four "always on" Liner Noise Filtration Outlets are divided into two separate banks and will only power off during a fault condition (under-voltage/over-voltage). Power is cleaned from these outlets by a two-stage balanced Pi filter which also provides noise isolation from the other outlet banks.
- Gaming Outlet: The M5300-PM features a convenient AC outlet located on the front-panel for connecting your gaming system temporarily.
Level 4 Power Cleaning And Filtration: Level 4 Power Cleaning and Filtration eliminates common symptoms of contaminated power (including loss of detail, pops, hisses, hums and visual artifacts) and allows your A/V equipment to perform up to its full capability.
Automatic/Visual Voltage Monitoring Circuitry: Panamax's patent pending AVM circuitry continuously monitors the incoming power as displayed on the unit's digital voltmeter. In case of an under-voltage or an over-voltage, a flashing red lightning bolt will be displayed in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.
Cross-Contamination Reduction: The M5300-PM is designed to provide noise isolation between 5 isolated outlet banks (including 1 bank with 2 high current outlets) so that any noise created by an A/V component cannot contaminate the power going to equipment plugged into another outlet bank
Power Sequencing: The M5300-PM features Power Sequencing to guard against blown fuses and potential damaging speaker thump by automatically power outlets on and off in sequence. This feature minimizes in rush current issues by allowing the components plugged into the Switched Outlet Banks to power-up and stabilize before any amplifier and powered subwoofers are turned on. This sequence is reversed during shutdown. The amplifier and powered subwoofers turn off, their power supplies drain and then the equipment plugged into the Switched Outlet Banks are turned off.
Voltage Sense Trigger Input/Output: The M5300-PM voltage sense trigger input and output uses a standard 3.5mm (1/8") mini-mono plug. This feature provides an On/Off trigger for the M5300-PM using a direct current voltage signal. You can connect the DC Trigger Input to a remote trigger device that uses a DC output to trigger a start-up/shutdown sequence. The DC Trigger Output can be connected to a remote trigger device that uses a DC trigger input to pass the M5300-PM's startup/shutdown sequence to an additional device.
HD Ready Coax Jacks: The unit's bi-directional coaxial protection circuits achieve optimum signal quality from newly designed connectors that have less than 0.5 dB of attenuation from 0Hz to 2.2GHz. The unit's clamping level of 75V will meet the demands of both cable and satellite voltage while minimizing exposure to damaging spikes and surges.
Phone Jacks: The unit features an RJ-11 input and output for protecting your standard telephone or pay-per-view lines. The Phone circuit is auto-resetting.
LAN Jacks: The M5300-PM is equipped with two RJ-45 LAN inputs and one RJ-45 LAN output on it rear panel; and a bi-directional RJ-45 LAN jack on its front panel. The LAN protection circuits are designed for 1-/100 baseT Ethernet lines. The front-panel bi-directional LAN jack is an Ethernet pass-thru connection between the units front and rear panel. The front panel LAN port is also great for on-line gaming.
USB Charger: The M5300-PM features a front-panel USB type-A port for charging your MP3 player, cell phone, or other small electronics.
Digital Voltmeter: The M5300-PM features a front-panel Digital Voltmeter which monitors the voltage supplying your home theater equipment. If line voltage drops below 90VAC, or if the line voltage exceeds 142VAC, the display will turn off and the "unsafe voltage" indicator will flash indicating and unsafe voltage condition.
Digital Ammeter: The M5300-PM features a front-panel Digital Ammeter which shows the actual current draw (0-15A) of the connected components system, giving you a visual reference as to how your system is functioning under a variety of conditions.
Outlet Bank Power LEDs: Each bank of outlets features a corresponding Blue LED indicator. These LEDs indicate the status of the corresponding rear panel outlets. The LED will be lit when the outlets are turned On. They will flash during the startup and shutdown process.
Circuit Breaker: A circuit breaker is located on the back panel of the M5300-PM. The circuit breaker will trip only if the total current draw exceeds the maximum current rating (15A). This means that collectively, all outlets must draw more than 15 amps before the circuit breaker will trip.
Rack-Mount Brackets: The M5300-PM comes with rack-mount brackets to mount it in a 1U rack space.
$5,000,000 Lifetime Connected Equipment Warranty: Panamax will replace, pay to replace at fair market value, or pay to repair, up to $5,000,000 of equipment that is damaged by an AC surge while connected to a properly installed Panamax surge protector, if the surge protector shows signs of surge damage or is operating outside of design specifications. For coverage conditions and information on how to make a claim, please see the warranty sheet.
Controls And Indicators
- Power Button: Powers Bank 3, 4 and 5 outlets on and off.
- Dimmer Button: Adjusts brightness level of unit's front panel lights and voltmeter.
- Digital Voltmeter: Digital LED voltmeter indicates the incoming line voltage.
- Digital Ammeter: The unit's Digital Ammeter shows the actual current draw (0-15A) of the connected component system.
- Outlet Bank Power LEDs: Bank 1, Bank 2, Bank 3, Bank 4 and Bank 5 each have a corresponding LED indicator to indicate they are turned on.
- Wiring OK: This LED illuminates to indicate that the wall outlet is properly grounded and Line/Neutral polarity is correct.
- Circuit Breaker: Resets M5300-PM.
- Bank 1 & 2 On LED: This LED illuminates when there is power present on the Bank 1 and 2 receptacles.
- AC Outlet: Front panel outlet for gaming systems.
- USB: USB port for charging portable devices such as MP3 players or cell-phones.
- LAN: Bi-directional Ethernet pass-thru connection between the front and rear panel.
- Linear Filtration Always On Bank 1: always on linear filtered outlets labeled DVR and VCR/AUX.
- Linear Filtration Always On Bank 2: always on linear filtered outlets labeled HDTV/Monitor and HD Cable SAT.
- Linear Filtration Switched Bank 3: Two switched outlets with linear filtration controlled by the front panel Power button or the DC Trigger input labeled Digital Radio and Pre Amp.
- Linear Filtration Switched Bank 4: Two switched outlets with linear filtration controlled by the front panel Power button or the DC Trigger input labeled CD and DVD.
- High Current Switch Delayed Bank 5: Two switched, high current outlets controlled by the front panel power button or DC Trigger input labeled Receiver and Sub/Amp.
- Voltage Sense Trigger Input: 3.5mm mono mini-plug which connects to a remote trigger device that uses a DC output to trigger a startup/shutdown sequence.
- Voltage Sense Trigger Output: 3.5mm mini-plug output which allows the input signal to pass through the M5300-PM to control the start-up/shutdown of an additional device.
- LAN Jacks: Two RJ-45 inputs and RJ-45 output for 10/100 baseT Ethernet lines.
- Phone Jacks: One RJ-11 input and one RJ-11 output for standard telephone lines.
- Coaxial Jacks: 3 pairs of bidirectional threaded female F-type coax terminals
- Ground Lug: Gold-plated binding post that provides a common grounding point for equipment with separate ground leads.
- Line Voltage: 120VAC, 60Hz
- Maximum Current Rating: 15A
- UL 1449 Surge Suppression Rating: 330V
- Protection Modes: L-N, L-G, N-G
- Initial Clamping Level: 200V
- Joule Rating: 2125 Joules
- Peak Impulse Current: 72,000A
- EMI/RFI Noise Filtration:
- Banks 1, 2, 3, 4: 80dB, 100KHz-2MHz
- Bank 5 (High Current): 60dB, 100KHz-2MHz
- Over-voltage Shutoff Threshold: 142V (+/-8)
- Under-voltage Shutoff Threshold: 90V (+/-2)
DC Trigger Input:
- Jacks: 3.5mm (1/8") mono mini-plug
- Voltage And Polarity: 3-24V DC, bidirectional
- Current Requirement: 4.5mA @ 3V, 58mA @ 24V
DC Trigger Output:
- Jacks: 3.5mm (1/8") mono mini-plug
- Pass Through: no delay
- Clamping Level: 52V
- Connectors: RJ-45
- Wires Protected: 8 wires
- Jacks: USB-A
- Power Delivery: 500mA @ 5VDC
- Clamping Level: 260V
- Capacitance: approximately 30pf
- Suppression Modes: metallic and longitudinal
- Connections: RJ-11
- Wires Protected: 2 wires (4&5)
Universal Cable and Satellite Protection:
- Clamping Level: 75V
- Insertion Loss: <0.5dB
- Bandwidth: 0MHz - 2.2GHz
- Connections: Gold-plated female F-type
