About the Hertz ML 2500.3
Made to excel
Made to excel

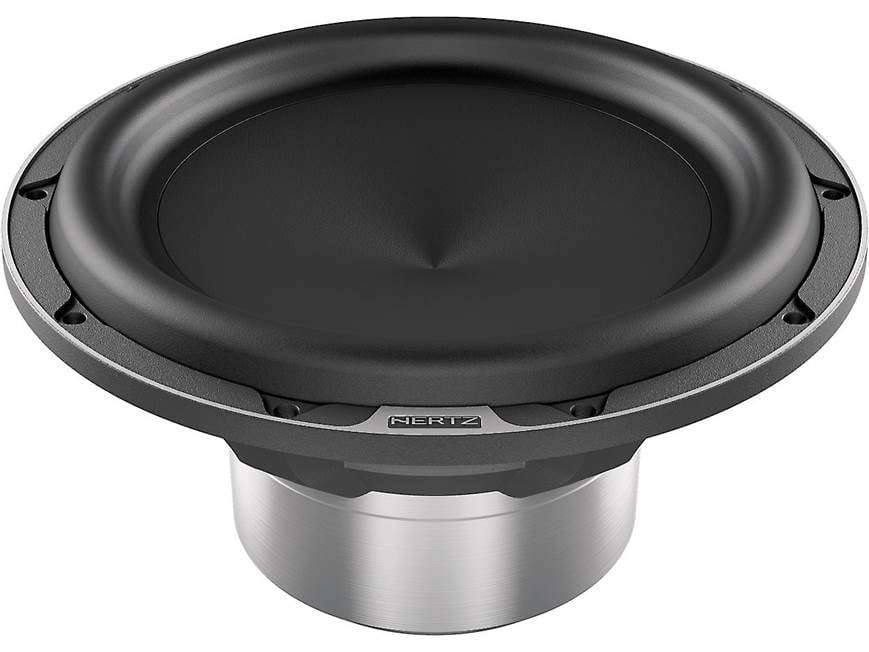

When Hertz began producing car speakers in 1979, their aim was to create speakers that take your music to the next level. They developed the Mille Series using tough, high-quality materials and advanced design to bring you the best in sound reproduction. Their ML 2500.3 10" subwoofer offers extreme power handling capabilities to help you build a system with truly huge bass, and it's designed for smaller enclosures so you get more installation options.
Designed for high fidelity
The ML 2500.3 features the technically advanced V-cone®, which keeps its shape even at high volume levels to minimize distortion. The pressed pulp of the cone is combined with mineral powders for additional rigidity, while the rubber surround keeps things under control. The sub's aluminum alloy frame is designed to minimize resonance so it'll produce rich, clear bass while handling tremendous amounts of power.
Power handling to spare
With 700 watts of continuous power handling (1400 watts peak), the ML 2500.3 will produce enough low end to satisfy even the most demanding listener. This sub is designed for use in compact sealed enclosures so you'll get maximum bass from your space. If you're ready to rumble, this sub will give you all the bass you can handle.
Product highlights:
- 10" 4-ohm subwoofer
- mineral-injected paper cone with rubber surround
- aluminum alloy basket
- 4" voice coil
- power handling: 700 watts RMS (1400 watts peak)
- frequency response: 27-500 Hz
- sensitivity: 88 dB
- top-mount depth: 5-3/8"
- sealed box volume: 0.6 - 0.88 cu. ft.
- grille not included
- warranty: 2 years
- MFR # ML 2500.3
What's in the box:
Hertz ML 2500.3 owner's manual
- One 10" Subwoofer
- Ten 1-3/8" Allen head screws (4mm)
- 10 Speed clips
- 4mm Allen head bit
- Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 21 Others)
- Template on box
Customer reviews for Hertz ML 2500.3
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsCustomer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Hertz ML 2500.3
Features & specs
Features and Specs | ||
---|---|---|
Size | 10 -inch | |
Impedance (Ohms) | 4 | |
Cone Material | Mineral-injected Paper | |
Surround Material | Butyl Rubber | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
88 dB at 1 watt | |
Frequency Response | 27 - 500 Hz | |
Max RMS Power Handling | 700 | |
Peak Power Handling (Watts) | 1400 | |
Top Mount Depth (inches) | 5 9/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 9 3/16 | |
Frame Width | 10.535 | |
Frame Length | 10.535 | |
Vas (liters) | 23.5 | |
Fs (Hz) | 33 | |
Qts | 0.6 | |
Xmax (millimeters) | 17 | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 0.6 | |
Maximum Sealed Box Volume (cubic feet) | 0.88 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A |
Product Research
Features
Terminals: The spring post terminals will accept pin connectors, single banana plugs (but not dual), and bare wire up to 8 gauge.
Boundary Free Surround: This technology provides more cone surface area than other speakers of the same size, enabling it to move more air. The surrounds are made of butyl rubber, ensuring thermal and mechanical linearity.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, helps Hertz optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
Sealed Box: Hertz lists two sealed enclosure recommendations in the manual, a compact design of 17 liters (0.6 ft³), and a performance design of 25 liters (0.88 ft³). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Crossover: Hertz recommends the low pass crossover point be 60 Hz - 70 Hz when using the compact enclosure. With the performance enclosure, the recommended crossover point is 60 Hz - 80 Hz. They also recommend a subsonic filter at 10 Hz and that both crossovers have a 24 dB/octave slope.
