Kanto FMC1

Full-motion corner mount for TVs 40"-60"

Item # 310FMC1

You can swivel the corner mount so your TV lays flat against one adjacent wall or the other.

You can swivel the corner mount so your TV lays flat against one adjacent wall or the other.

Item # 310FMC1

In stock

Awards & recognition

Honored for putting the happiness of our customers and employees first.

60-day price protection

We’ll reimburse you if the price drops.

60-day returns

If you don't love it, send it back.

About the Kanto FMC1

Ralph Graves

A corner mount with options

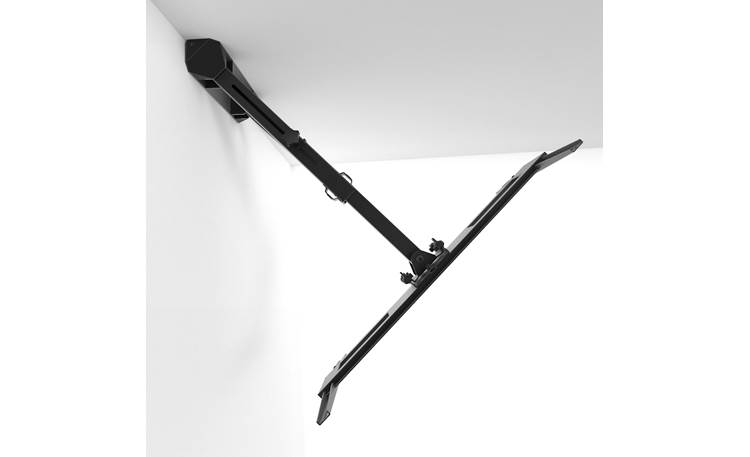

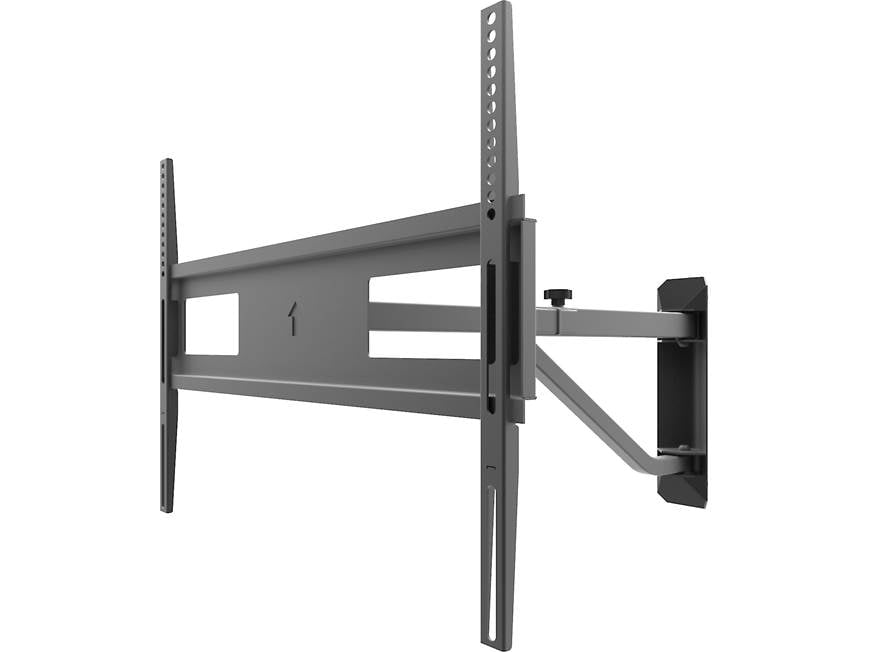

The Kanto FMC1 TV mount features a 90° wall plate that fits snugly into a corner. It swivels a full 90° in either direction, letting you position your TV flat against one adjacent wall or the other. You can also tilt your mounted TV up or down to avoid glare.

A corner mount with options

The Kanto FMC1 TV mount features a 90° wall plate that fits snugly into a corner. It swivels a full 90° in either direction, letting you position your TV flat against one adjacent wall or the other. You can also tilt your mounted TV up or down to avoid glare.

The telescoping arm can extend your TV as far as 29-7/8" from the corner. This solid steel mount has a durable powder coat finish. Detachable straps keep TV cables and cords secured to the mount's arms. The FMC1 can support TVs with screen sizes between 40" and 60" and weighing up to 88 lbs.


Product highlights:

  • designed for TVs 40"-60"
  • supports up to 88 lbs.
  • telescoping arm extends TV 20-3/8"-29-7/8"
  • swivel range: ±90°
  • tilt range: +10° to -6°
  • detachable straps to hold cables and cords tightly to mount
  • 90° wall plate fits snugly in room corner
  • stud mounting required
  • mounting hardware included
  • solid steel construction with powder coated finish
  • 25-5/8"W x 17"H x 20-3/8"-29-7/8"D
  • weight: 17.2 lbs.
  • warranty: 5 years
  • MFR # FMC1

What's in the box:

  • Wall-mount bracket with articulating arm assembly
  • Horizontal TV bracket
  • 2 Vertical TV brackets
  • Four M5x12mm screws
  • Four M5x30mm screws
  • Four M6x16mm screws
  • Four M6x35mm screws
  • Four M8x20mm screws
  • Four M8x35mm screws
  • Four M8x50mm screws
  • Four M5/M6 washers
  • Eight 6mm spacers
  • Four 10mm spacers
  • 4 Lag-bolts
  • 4 Anchors
  • Four M8 washers
  • 2 Lock-clips
  • 2 Lock-clip screws
  • 3 Cable-management straps
  • Hex-key
  • User Manual
  • Mounting Template

Customer reviews for Kanto FMC1

Loading reviews...

Average review:

5.0 out of 5 stars
12 reviews

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Kanto FMC1

Stacey B.

Features & specs

Mount Type Wall Mount
Tilt Yes
Swivel Yes
Extend/Retract Yes
Fixed No
Roll (Level) Adjustment No
Mounting Details
Wood Stud (Single) Yes
Wood Stud (Dual, 16-inch) No
Wood Stud (Dual, 24-inch) No
Concrete Block-compatible Yes
Recessed Housing No
Outdoor-rated No
Motorized No

Product Research


TV Compatibility: The Kanto FMC1 full-motion corner wall-mount bracket supports 40" to 60" flat-panel TVs that weigh up to 88 lbs. The TV must also meet the following VESA and screw size requirements.

  • VESA Sizes: 100x100mm to 600x400mm
  • Screw Size: M5, M6, or M8

Note: Additional hardware may be required for your specific model of TV. For example; shorter or longer screws, thicker or slimmer washers or spacers. These additional accessories can often be found at your local hardware store.

Solid Steel Construction: The Kanto FMC1 full-motion corner wall-mount TV bracket is constructed out of solid steel and features a black powder-coated finish.

Corner Installation: Unlike other full-motion mounts, the FMC1's unique 90° wall-plate can be mounted squarely in the corner of any wood stud or concrete wall. Its contoured design ensures each lag bolt can be properly secured, regardless of how your studs are configured. Tools required for installation include -

  • Drill
  • 7/32" bit (wood), 3/8" bit (masonry)
  • Socket wrench
  • Phillips screwdriver
  • Hammer
  • Stud finder
  • Level
  • Pencil
  • Tape Measure

Full-Motion Design: The FMC1's telescoping support arm extends 20.437" to 29.8125" from the corner, providing enough space for TVs as large as 60". When sufficiently extended, this full-motion TV mount is capable of swivelling up to 90° left and right. This allows you to place your TV against the adjacent walls, or to make simple adjustments to your viewing angle. The FMC1 also tilts 10° forwards and 6° backwards to reduce glare and improve line-of-sight with your wall-mounted TV.

Cable Management: The Katno FMC1 comes with cable management straps to help you route your cables up to your mounted television.

Loading accessories...

Customer Q&A

5 questions already asked

Is there any mounts on the market like this exact one that will fit a smaller tv such as a 32 inch?
raynond  Jan 08, 2023
1 answer
There may be ones that have a single post but for a 32" TV which we unfortunately don't carry. We do sell other Kanto mounts that fit smaller TVs that are articulating and corner mounts but have a dual post. If that could possibly work or some other possible variation then please give us a call at 800.324.9695 and our friendly advisors can show you what options we have available for your situation.
arielle h  Jan 08, 2023 (Staff)
Will this work with a TV that has 100 x 200 VESA pattern?
vicki  Feb 04, 2021
2 answers
Yes it will.
vicki  Feb 25, 2021
This mount does support a 100 x 200 VESA mounting pattern that some TV's use as long as the TV weighs no more than 88 lbs
jason  Feb 21, 2021 (Staff)
Can you mount a sound bar on these mounts?
doug  Feb 03, 2021
3 answers
We did not try, we attended it the shelf just below the Tv.Enter
jo ann  Feb 04, 2021
I bought separate bars for attaching a sound bar to this mount. Otherwise duct tape would work too.
curtis  Feb 04, 2021
Yes you can. The method will vary depending on where your particular soundbar mounting points are located in relation to the vesa mounts spacing on your tv. You may need an aftermarket adapter bracket, or if you are handy, you can easily custom make it if you have any thin metal and some black spray paint laying around. Add a spacer between the tv and the mount to allow space the head of the bolt/screw used to attach metal bracket to the tv mount and attach the other end to the soundbar. I used 2 of the 4 dog ears left over parts for another tv mount I installed. They required just drilling a hole a little larger to bolt to tv mount. They were already black which made it easy.
mark  Feb 03, 2021
I want to mount this in the corner but only want to go into one stud, the other side is a plastic window . will that work?
larry  Nov 26, 2020
3 answers
It is possible as long as you can get 2 bolts in the stud. You will have to be the judge as to whether it could damage your plastic window frame, which is likely if it comes in contact with the mount when you tighten the mount down.
mark  Feb 03, 2021
Refer to the instructions and consider that the answer is dependent on a mixture of the mount, bolts used in the wall, the condition of the wall stud in the corner, the weight of the tv, and reach extension off the corner. There is a chance it can, but that is not a definite. Having used this mount, it does very well, but the torque on those mounting bolts can be significant when it is extended.
steven  Nov 27, 2020
I have an older home and had the same situation. I have had no issues, however I did use larger bolts, purchased from one of the box stores. Bolt color is not a concern because they are hidden. I had to move the 55" TV in and out a few times to rerun wiring, jostling it a bit, and it feels very secure.
elton  Nov 26, 2020
Can a Plasma TV be mounted on the wall mount?
donna  Jan 24, 2020
3 answers
Yes, if your properly installed mount (in studs) is rated high enough to support the weight of the tv.
mark  Feb 03, 2021
It can, however, plasma TVs are very heavy by their nature. As long as you do not exceed the weight rating, the mounting positions will work fine. In my installation, the plasma was 132 pounds and was too heavy for the rated load.
steven  Nov 27, 2020
I can see no reason why not.
george  Feb 05, 2020
